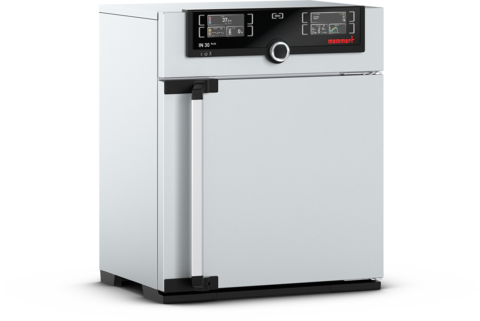

Memmert incubator IN30mplus, 32 l, +20 to +80 °C, TwinDISPLAY

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Memmert incubator IN30mplus, 32 l, +20 to +80 °C, TwinDISPLAY"

32 litres interior, 704 mm housing height: the Memmert incubator IN30mplus is the smallest size in the IN-mplus series. As a Class I medical device according to Regulation (EU) 2017/745, it is used to temper irrigation and infusion solutions and contrast media. One electropolished stainless steel grid shelf is supplied as standard, and up to three shelves are possible.

Display and sensors

The ControlCOCKPIT TwinDISPLAY, an adaptive digital PID microprocessor controller with two TFT colour graphic displays, handles the control. Two Pt100 sensors of DIN class A measure in 4-wire technology and check each other: if one sensor fails, the second takes over automatically. The set temperature can be adjusted between +20 and +80 °C, and the setting accuracy is 0.1 °C. The working temperature range starts at least 5 °C above room temperature.

Safety

A mechanical temperature limiter of protection class 1 (DIN 12880) disconnects the heating from the mains at about 20 °C above the maximum chamber temperature. Optionally, an adjustable temperature monitor (protection class 3.1) or an adjustable temperature limiter (protection class 2) can be activated on the display. The AutoSAFETY function follows the set point at a freely selectable offset, warns visually and audibly in case of deviations and switches off the heating if the set point is exceeded; a self-diagnosis system helps with fault finding. A program of 4 hours at 160 °C is permanently stored for sterilising the interior, not for sterilising load items.

Functions and connectivity

  • HeatBALANCE: heating power distribution of upper/lower heating group adjustable from -50 to +50 %
  • SetpointWAIT: process time starts only after the set temperature has been reached
  • Calibration function for three freely selectable temperature values
  • Ethernet interface and USB port for programs with the AtmoCONTROL software
  • Program sequence saved in the event of a power failure

Interior, ventilation and connection

The stainless steel interior is easy to clean, stiffened by deep-drawn ribbing and heated on all four sides. The housing is made of textured stainless steel with a fully galvanised rear wall. With natural ventilation, preheated fresh air flows in, and the exhaust air volume is controlled by an electronically adjustable throttle valve on the exhaust air outlet. The internal dimensions are 400 x 320 x 250 mm and the external dimensions 585 x 704 x 434 mm (plus 56 mm door handle), and the net weight is around 48 kg. A total load of 60 kg is permitted at a maximum of 20 kg per shelf. The mains connection is 230 V (approx. 1,600 W), and in the 115 V version approx. 800 W, in each case 50/60 Hz.

The IN30m in comparison

Same size, but with a different intended purpose: the IN30m is likewise a Class I medical device, but is used for warming and keeping warm fango, silicate and APS packs in physiotherapy. It has only one SingleDISPLAY and a single Pt100 sensor, without the second display and the redundant sensor pairing of the IN30mplus.

Choosing the right size

If more capacity is needed, the next size up follows, the Memmert incubator IN55mplus with 53 litres, up to four shelves and 80 kg permissible total load. With 32 litres and a maximum of three shelves, the IN30mplus remains the most compact model in the series.

Typical applications

As a Class I medical device, the IN30mplus is intended for warming irrigation and infusion solutions and contrast media.

  • Warming irrigation solutions
  • Warming infusion solutions
  • Warming contrast media

Technical details

Setting temperature range+20 to +80 °C
Working temperature rangemin. 5 °C above room temperature to +80 °C
Temperature setting accuracy0.1 °C
Temperature sensor2x Pt100, DIN class A, 4-wire measurement, redundant
Internal volume32 l
Internal dimensions (W x H x D)400 x 320 x 250 mm
External dimensions of housing (W x H x D)585 x 704 x 434 mm (plus 56 mm door handle)
Net weightapprox. 48 kg
Connection230 V, 50/60 Hz, approx. 1,600 W; 115 V, 50/60 Hz, approx. 800 W
Shelves in the scope of delivery1
Maximum number of shelves3
Max. load of unit60 kg
Max. load per shelf20 kg
ControlControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2x TFT colour graphic display
Additional functionsHeatBALANCE, SetpointWAIT, AutoSAFETY, visual and audible alarm
Medical device classificationClass I according to Regulation (EU) 2017/745
Intended purposeWarming irrigation and infusion solutions and contrast media
Permissible ambient temperature5 °C to 40 °C
Permissible humiditymax. 80 % rh, non-condensing
Shipping carton (W x H x D)660 x 890 x 650 mm
MarkingsCE, VDE, UL

Other sizes in the series

The IN30mplus is one of eight sizes in the IN-mplus series from 32 to 749 litres, all with TwinDISPLAY and the same setting temperature range of +20 to +80 °C.

ModelInternal volumeSetting temperatureDisplay
IN30mplus (this page)32 l+20 to +80 °CTwinDISPLAY
IN55mplus53 l+20 to +80 °CTwinDISPLAY
IN75mplus74 l+20 to +80 °CTwinDISPLAY
IN110mplus108 l+20 to +80 °CTwinDISPLAY
IN160mplus161 l+20 to +80 °CTwinDISPLAY
IN260mplus256 l+20 to +80 °CTwinDISPLAY
IN450mplus449 l+20 to +80 °CTwinDISPLAY
IN750mplus749 l+20 to +80 °CTwinDISPLAY

Scope of delivery

  • Factory calibration certificate (calibration at +37 °C)
  • Fully insulated stainless steel door with 2-point locking (compression door lock), inner glass door
  • 1x stainless steel grid shelf, electropolished

Regulatory information

The unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Information on returning old appliances is available on our page Environment and disposal. The IN30mplus is also classified as a Class I medical device according to Regulation (EU) 2017/745, with the intended purpose of warming irrigation and infusion solutions and contrast media.

Individual requirements and procurement service

For the IN30mplus, Memmert offers options, accessories and services, and options are specified at the factory when ordering. We clarify your individual requirements, from the suitable option to additional accessories, and organise the procurement. Get in touch for non-binding advice. As factory options, Memmert also offers DAkkS calibration according to DKD-R 5-7, IQ/OQ documents and IQ/OQ qualification. We order these with the device on request.

Volume: 32 l
