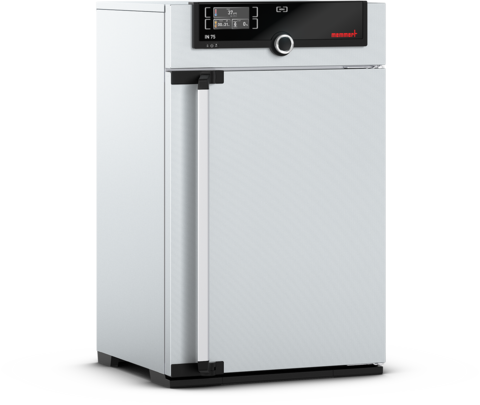

Memmert incubator IN75m, 74 l, +20 to +80 °C, SingleDISPLAY

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Memmert incubator IN75m, 74 l, +20 to +80 °C, SingleDISPLAY"

The Memmert incubator IN75m is a Class I medical device under Regulation (EU) 2017/745. The intended purpose is the warming and keeping warm of fango, silicate and APS packs in physiotherapy. With 74 litres internal volume and internal dimensions of 400 x 560 x 330 mm, two electropolished stainless steel grid shelves are included as standard, and up to six shelves are possible.

ControlCOCKPIT SingleDISPLAY and time control

The core of the control system is the ControlCOCKPIT SingleDISPLAY with an adaptive, multifunctional PID microprocessor controller and a high-resolution TFT colour graphic display. A Pt100 sensor of DIN class A supplies the measured values using 4-wire technology, and the setting accuracy is 0.1 °C. SetpointWAIT only starts counting the process time once the setpoint temperature has been reached, and the digital countdown timer can be programmed from 1 minute to 99 days. Three temperature values can be freely calibrated.

Ventilation and safety technology

An electronically adjustable exhaust air flap admixes preheated fresh air into the natural ventilation, supplemented by an exhaust air port with an electronically controllable throttle valve. For protection against over-temperature, a mechanical temperature limiter TB protection class 1 according to DIN 12880 switches the heating off at around 20 °C above the maximum cabinet temperature, and an adjustable electronic temperature monitoring system and a self-diagnosis system for fault finding are added. After a power failure, the program sequence remains stored. The data logger is read out via Ethernet with a time-limited trial version of AtmoCONTROL, and a USB stick with the software is available as an accessory.

Loading, interior and connection

Easy-care, deep-drawn ribbed stainless steel forms the interior, and the 4-sided all-round heating is integrated behind it, protected. Two electropolished stainless steel grid shelves are included in the scope of delivery, up to six shelves fit, and a total of 120 kg is permitted at 20 kg per shelf. The fully insulated stainless steel door closes via a 2-point locking system with compression door lock and has an inner glass door. Connection is made with 230 V at approx. 1,250 W or with 115 V at approx. 900 W, each 50/60 Hz. Externally, the IN75m measures 585 x 944 x 514 mm plus 56 mm door handle, with a net weight of around 66 kg.

Distinction: laboratory device IN75 and medical device IN75mplus

In the same size, there is the Memmert incubator IN75 without a medical intended purpose. The IN75mplus also has 74 litres, but shows the values via a ControlCOCKPIT TwinDISPLAY, not via SingleDISPLAY, and serves a different purpose: warming irrigation and infusion solutions and contrast media, not the warming of fango, silicate and APS packs.

Selection guide: which size fits

Smaller is the IN55m with 53 litres, four shelves and 80 kg total load. With the next larger IN110m, volume (108 litres) and total load (175 kg) increase, but the number of shelves drops to five. With six shelves, the IN75m therefore offers one shelf more than the larger IN110m.

Typical applications

As a Class I medical device, the IN75m is intended exclusively for the physiotherapeutic applications named in the intended purpose.

  • Warming of fango packs for physiotherapeutic use
  • Warming and keeping warm of silicate packs
  • Warming and keeping warm of APS packs

Technical details

Setting temperature range+20 to +80 °C
Working temperature rangemin. 5 °C above room temperature to +80 °C
Temperature setting accuracy0.1 °C
Temperature sensor1x Pt100, DIN class A, 4-wire measurement
Internal volume74 l
Internal dimensions (W x H x D)400 x 560 x 330 mm
External dimensions of housing (W x H x D)585 x 944 x 514 mm (plus 56 mm door handle)
Net weightapprox. 66 kg
Connection230 V, 50/60 Hz, approx. 1,250 W; 115 V, 50/60 Hz, approx. 900 W
Shelves in scope of delivery2
Maximum shelves6
Max. load of unit120 kg
Max. load per shelf20 kg
ControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic display
Medical device classificationClass I under Regulation (EU) 2017/745
Intended purposeWarming/keeping warm of fango, silicate and APS packs in physiotherapy
Permissible ambient temperature5 °C to 40 °C
Permissible humiditymax. 80 % rh, non-condensing
MarkingsCE, VDE, UL

Other sizes in the series

The IN75m is one of eight sizes in the IN-m series from 32 to 749 litres, all with SingleDISPLAY and the same setting temperature range of +20 to +80 °C.

ModelInternal volumeSetting temperatureDisplay
IN30m32 l+20 to +80 °CSingleDISPLAY
IN55m53 l+20 to +80 °CSingleDISPLAY
IN75m (this page)74 l+20 to +80 °CSingleDISPLAY
IN110m108 l+20 to +80 °CSingleDISPLAY
IN160m161 l+20 to +80 °CSingleDISPLAY
IN260m256 l+20 to +80 °CSingleDISPLAY
IN450m449 l+20 to +80 °CSingleDISPLAY
IN750m749 l+20 to +80 °CSingleDISPLAY

Scope of delivery

  • Factory calibration certificate (calibration at +37 °C)
  • Fully insulated stainless steel door with 2-point locking (compression door lock), inner glass door
  • 2x stainless steel grid shelf, electropolished

Regulatory information

The device is electrical equipment within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Notes on returning old appliances can be found on our page Environment and disposal. The IN75m is also classified as a Class I medical device under Regulation (EU) 2017/745, with the intended purpose of warming and keeping warm of fango, silicate and APS packs in physiotherapy.

Installation in a wall opening

For fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29732) or without air slots (B29733). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.

Individual requirements and procurement service

For the IN75m, Memmert offers options, accessories and services, and options are specified at the factory with the order. Accessories include, for example, a USB stick with the AtmoCONTROL software. We clarify individual requirements, such as additional accessories or spare parts, on request. As factory options, Memmert also offers DAkkS calibration according to DKD-R 5-7, IQ/OQ documents and IQ/OQ qualification. We order these with the device on request.

Volume: 74 l
