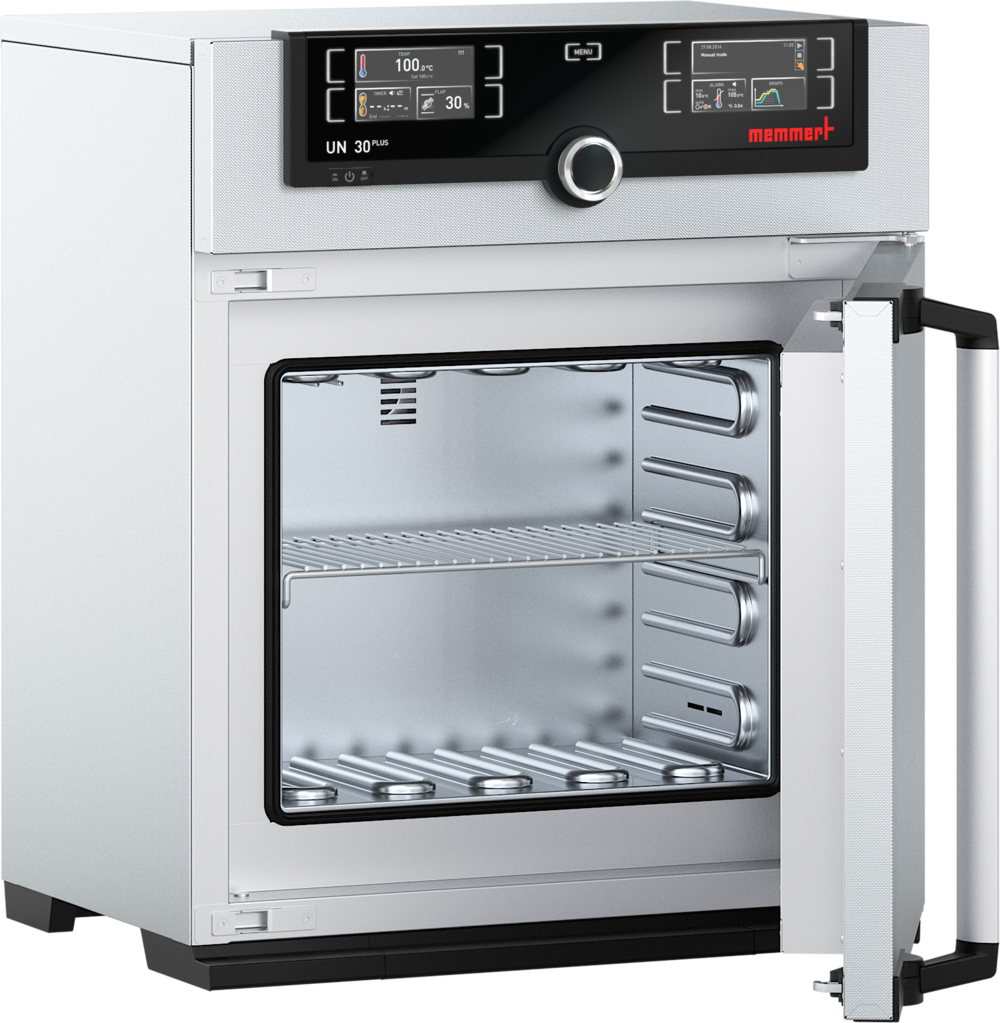

Memmert universal oven UN30plus, 32 l, +20 to +300 °C, TwinDISPLAY

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Memmert universal oven UN30plus, 32 l, +20 to +300 °C, TwinDISPLAY"

With 32 litres of interior, the Memmert UN30plus universal oven is the smallest model of the UN-plus series and works without an air turbine, with natural convection alone. The external dimensions are 585 x 704 x 434 mm plus 56 mm for the door handle, and the setting temperature range extends from +20 to +300 °C. Two DIN class A Pt100 sensors monitor each other in 4-wire measurement and automatically take over the function of the other in the event of a fault.

Interior and air routing without a fan

The interior measures 400 x 320 x 250 mm, is deep-drawn ribbed and has protected, integrated 4-sided all-round heating. An electronically adjustable exhaust air flap admixes preheated fresh air, and the exhaust air outlet with throttle valve can likewise be controlled electronically. One stainless steel grid shelf, electropolished, is part of the standard equipment, and up to three shelves are possible. A total load of 60 kg is permitted with a maximum of 20 kg per shelf, and the housing has a fully galvanised sheet steel rear wall.

Control with TwinDISPLAY

The UN30plus is controlled via the ControlCOCKPIT with two TFT colour graphic displays, and the setting accuracy is 0.1 °C up to a setpoint temperature of 99.9 °C and 0.5 °C from 100 °C. The SetpointWAIT function starts the process time only when the setpoint temperature has actually been reached, and a digital countdown timer covers target times from 1 minute to 99 days. Three freely selectable temperature values can be calibrated, and a self-diagnosis system supports fault finding. Programming and documentation are done via the Ethernet interface or USB port with the AtmoCONTROL software, and the programme sequence is retained in the event of a power failure.

Safety technology

A mechanical temperature limiter of protection class 1 according to DIN 12880 switches off the heating at about 20 °C above the maximum oven temperature, and an adjustable temperature monitor of protection class 3.1 or an adjustable temperature limiter of protection class 2 can additionally be selected on the display. AutoSAFETY automatically follows the setpoint at a freely selectable distance and triggers a visual and audible alarm in the event of deviation. Unlike the larger models of the series, the UN30plus has no HeatBALANCE function for heating power distribution, but the redundant sensors and AutoSAFETY are already fitted as standard even in this smallest size.

Guide to choosing the right size

If there is room for a model with one more shelf, the UN55plus with 53 litres and 80 kg permitted total load offers more scope, see the size table below. For individual small samples or light batches, the UN30plus with its compact external dimensions remains the more space-saving choice.

Typical applications

As a heating and drying oven with natural convection, the UN30plus is used in research, science, industry and quality assurance for drying and heating small sample quantities.

  • Drying small sample series in laboratory operation
  • Heating individual samples in research and science
  • Drying and heating in industrial quality assurance

Technical details

Setting temperature range+20 to +300 °C
Working temperature rangemin. 5 °C above room temperature to +300 °C
Temperature setting accuracyup to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °C
Temperature sensor2x Pt100, DIN class A, 4-wire measurement, redundant
Internal volume32 l
Internal dimensions (W x H x D)400 x 320 x 250 mm
External dimensions of housing (W x H x D)585 x 704 x 434 mm (plus 56 mm door handle)
Net weightapprox. 45 kg
Connection 230 V50/60 Hz, approx. 1,600 W
Connection 115 V (factory option)50/60 Hz, approx. 1,600 W
Shelves max.3
Shelves included in scope of delivery1
Max. load of unit60 kg
Max. load per shelf20 kg
Interiordeep-drawn ribbed, 4-sided all-round heating
ControlControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2x TFT colour graphic display
Additional functionsAutoSAFETY, visual and audible alarm
Permissible ambient temperature+5 °C to +40 °C
Permissible humiditymax. 80 % rel., non-condensing
Max. installation altitude2,000 m
MarkingsCE, VDE GS, UL, EAC

Other sizes in the series

The UN-plus series with natural convection comprises eight sizes from 32 to 749 litres, listed below sorted by internal volume:

ModelInternal volumeSetting temperatureDisplay
UN30plus (this page)32 l+20 to +300 °CTwinDISPLAY
UN55plus53 l+20 to +300 °CTwinDISPLAY
UN75plus74 l+20 to +300 °CTwinDISPLAY
UN110plus108 l+20 to +300 °CTwinDISPLAY
UN160plus161 l+20 to +300 °CTwinDISPLAY
UN260plus256 l+20 to +300 °CTwinDISPLAY
UN450plus449 l+20 to +300 °CTwinDISPLAY
UN750plus749 l+20 to +300 °CTwinDISPLAY

With SingleDISPLAY, the same volume is available in the UN series: UN30.

Scope of delivery

  • 1x Memmert universal oven UN30plus
  • Factory calibration certificate (calibration at +160 °C)
  • Fully insulated stainless steel door with 2-point locking (compression door lock)
  • 1x stainless steel grid shelf, electropolished

Regulatory information

The device is an electrical device within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Information on returning old appliances is available on our page Environment and disposal.

Installation in a wall opening

For fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29728) or without air slots (B29729). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.

Individual requirements and procurement service

For the UN30plus, the 115 V voltage variant, temperature throttling (factory limit on the maximum adjustable temperature), a full-view glass door, interior lighting and socket and a nearly gas-tight interior, among other things, can be ordered from the factory. Suitable accessories include additional grid shelves and perforated trays, drip trays, a wall bracket, a USB Ethernet adapter and a stacking kit. For qualification, we arrange factory, on-site and DAkkS calibrations, IQ/OQ documentation according to DIN 12880:2007-05 and a short training course. For individual requirements, we will advise you personally.

Certification marks: GS (VDE)
Volume: 32 l
Skip product gallery

Matching accessories

Memmert Edelstahl-Gitterrost, Zeichnung verschiedener Größen
Memmert stainless steel grid E28884 for size 30
Manufacturer number: E28884

The E28884 stainless steel grid is an electropolished shelf for 19 Memmert models in size 30. Each grid is a shelf level for the items loaded into the interior. If you need more shelf levels than are fitted as standard, you can add grids up to the maximum number in the table. The size corresponds to the number in the unit name, for example UF30 or UN30.All 19 models have 1 grid as standard and can hold up to 3 grids. According to Memmert, the load per shelf is 20 kg. The image is for illustration only. It is a Memmert drawing showing grids of different sizes.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Tempering and curing of individual material samples, for example in the UF30Incubating culture media and cultures in routine microbiology, for example in the IN30 incubatorSuitable forThe table shows for each model the number of grids included in the scope of delivery of the unit, the maximum possible number and the load per shelf.ModelGrids as standardMaximum number of gridsLoad per shelf (kg)Interior volume (l)UF30132032UN30132032UF30plus132032UN30plus132032IF30plus132032IN30plus132032IF30132032IN30132032UN30pa132032IPP30132032IPP30plus132032IN30m132032IN30mplus132032IF30m132032IF30mplus132032UN30m132032UN30mplus132032UF30m132032UF30mplus132032The permissible total load of the unit additionally limits the loading. Please refer to the information in the unit’s data sheet.Technical detailsMaterialStainless steelSurfaceelectropolishedLoad per shelf according to Memmert20 kgScope of delivery1 stainless steel grid, electropolished (E28884)Individual requirements & procurement serviceFor further grids, perforated trays or reinforced grids, and for questions about compatibility with units not listed in the table, our procurement service accepts enquiries.

Manufacturer's RRP: €55.04
memmert rohrverlaengerung gerade
Memmert straight slip-on pipe extension B29718 for sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060
Manufacturer number: B29718

The straight slip-on pipe extension B29718 discharges the exhaust air and can be used to connect a hose if required. The pipe measures 60.3 mm on the outside and 57 mm on the inside.It is intended for Memmert U and Um universal ovens and I and Im incubators in sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060. The angled version is also available (B29719). The table of compatible models shows which series is available in which size. The image is for illustration only. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Incubating several parallel series of culture media in routine microbiology, for example in the IN55 incubatorTempering, ageing and baking of material samples in industrial quality assurance, for example in the UN110Drying and tempering of large, heavy components in industrial manufacturing, for example in the UF1060Suitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749UF106010601,060IF30plus3032IN30plus3032IF303032UF1060plus10601,060IN303032IF160160161IN450plus450449IN450450449IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF750plus750749IF110plus110108IN55plus5553IF450plus450449IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IN110110108IN757574IF757574IN750750749IF750750749IF450450449IN750plus750749IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF1060m10601,060UF1060mplus10601,060Technical detailsPipe, outside60.3 mmPipe, inside57 mmScope of delivery1 straight slip-on pipe extensionIndividual requirements & procurement serviceFor the angled version, for further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €41.28
memmert rohrverlaengerung gewinkelt
Memmert angled slip-on pipe extension B29719 for sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060
Manufacturer number: B29719

The angled slip-on pipe extension B29719 discharges the exhaust air and can be used to connect a hose if required. The pipe measures 60.3 mm on the outside and 57 mm on the inside.It is intended for Memmert U and Um universal ovens and I and Im incubators in sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060. The straight version is also available (B29718). The table of compatible models shows which series is available in which size. The image is for illustration only. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Parallel drying of several sample batches in a confined space, for example in the UN75Parallel incubation of several sample series in research and medicine, for example in the IF160Tempering, ageing and baking of material samples in series, for example in the UN260Testing and curing of larger components in quality assurance, for example in the UF750Suitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749UF106010601,060IF30plus3032IN30plus3032IF303032UF1060plus10601,060IN303032IF160160161IN450plus450449IN450450449IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF750plus750749IF110plus110108IN55plus5553IF450plus450449IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IN110110108IN757574IF757574IN750750749IF750750749IF450450449IN750plus750749IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF1060m10601,060UF1060mplus10601,060Technical detailsPipe, outside60.3 mmPipe, inside57 mmScope of delivery1 angled slip-on pipe extensionIndividual requirements & procurement serviceFor the straight version, for further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €108.36
memmert untergestell nivellierbar
Memmert levelling base frame B29745, height 600 mm, for size 30
Manufacturer number: B29745

The levelling base frame B29745 has a height of 600 mm and is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. The size corresponds to the number in the unit name, for example UF30 or UN30.A flat base frame with a height of 130 mm is also available (B33657). The mobile version with a height of 660 mm is also available (B29746). The image is for illustration only.Typical applicationsUnits of size 30 are placed on the base frame. Typical uses of these units:Incubating culture media and cultures in routine microbiology, for example in the IN30 incubatorDrying and heating in industrial quality assurance, for example in the UN30plusMicrobiological cooled incubation in the IPP30 Peltier cooling incubatorSample preparation in pathology and histology in the UN30pa paraffin ovenWhen installing, the clearances of the unit apply; for the UN30 universal oven, at least 15 cm wall clearance, 20 cm ceiling clearance and 5 cm side clearance.Suitable forModelSizeInterior volume (l)UF303032UN303032UF30plus3032UN30plus3032IF30plus3032IN30plus3032IF303032IN303032UN30pa3032IPP303032IPP30plus3032IN30m3032IN30mplus3032IF30m3032IF30mplus3032UN30m3032UN30mplus3032UF30m3032UF30mplus3032Technical detailsHeight600 mmScope of delivery1 levelling base frame, height 600 mmIndividual requirements & procurement serviceFor the flat and the mobile version, for base frames for other unit sizes, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €266.60
Memmert levelling feet B29768, set of 4, for sizes 30, 55, 75, 110, 160 and 260
Manufacturer number: B29768

The B29768 set of levelling feet contains 4 pieces. With levelling feet, the unit can be aligned horizontally.The set is intended for Memmert units in the U, Um, UF TS, UNpa, I, Im, IPPeco and HPPeco series in sizes 30, 55, 75, 110, 160 and 260. The table of compatible models shows which series is available in which size. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Incubating several parallel series of culture media in routine microbiology, for example in the IN55 incubatorEmbedding and heating larger quantities of paraffin or wax, for example in the UN110pa paraffin ovenParallel stability studies of several active substance batches according to ICH Q1A, for example in the HPP260ecoSuitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN110pa110108UN75pa7574UN160pa160161IF30plus3032IN30plus3032IF303032IN303032IF160160161IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF110plus110108UN30pa3032IN55plus5553IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UN55pa5553UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IPP555553IN110110108IN757574IF757574IPP55plus5553IPP110eco110108IPP303032IPP110ecoplus110108IPP30plus3032IPP260eco260256IPP260ecoPlus260256HPP110eco110108HPP260eco260256IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UF160TS160161UF260TS260256Scope of delivery1 set of levelling feet (4 pieces)Individual requirements & procurement serviceFor base frames, further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €46.44
Memmert stacking kit B29744 for sizes 30, 50, 55, 75, 105 and 110
Manufacturer number: B29744

The B29744 stacking kit consists of 4 pieces and is intended for stacking units of the same size. It is intended for Memmert units in the U, Um, UNpa, I, Im, IPPeco, HPPeco, HCP and IFbw series in sizes 30, 50, 55, 75, 105 and 110. The size corresponds to the number in the unit name, for example UF30 or UN30.Separate stacking kits are also available for HCP150, HCP240 and for ICO50, 180 and 240 (B42114, B48129, B68362 and B64732). The table of compatible models shows which series is available in which size.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Incubating several parallel series of culture media in routine microbiology, for example in the IN55 incubatorIncubating several sample series at the same time in research and medicine, for example in the IF110Environmental tests and environmental simulations in the HCP105 humidity chamberSuitable forModelSizeInterior volume (l)IF110bw110108UF303032IF110110108UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN110pa110108UN75pa7574IF30plus3032IN30plus3032IF303032IN303032IF55plus5553IF110plus110108UN30pa3032IN55plus5553IF555553IN555553IN75plus7574IF75plus7574UN55pa5553UF110plus110108UN110110108UN110plus110108IPP555553IN110110108IN757574IF757574IPP55plus5553IPP110eco110108IPP303032IPP110ecoplus110108IPP30plus3032HPP110eco110108HCP505056HCP105105107IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108Scope of delivery1 stacking kit (4 pieces)Individual requirements & procurement serviceFor the stacking kits for HCP humidity chambers and ICO CO₂ incubators, for base frames and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €61.92
Memmert Wandkonsole
Memmert wall bracket B29755 for size 30
Manufacturer number: B29755

The wall bracket B29755 is intended for wall mounting of Memmert units in the I, Im, U, UNpa and Um series in size 30. The table of compatible models shows which series is available in this size. The image is a Memmert drawing and is for illustration only. The size corresponds to the number in the unit name, for example IF30 or IN30.Typical applicationsTypical uses in the compatible units:Incubation of individual samples in research and medicine, for example in the IF30Drying small sample series in laboratory operation, for example in the UN30plusEmbedding and heating of paraffin or other embedding media for histology, for example in the UN30paSuitable forModelSizeInterior volume (l)IF303032IN303032IF30plus3032IN30plus3032IF30m3032IN30m3032IF30mplus3032IN30mplus3032UF303032UN303032UF30plus3032UN30plus3032UN30pa3032UF30m3032UN30m3032UF30mplus3032UN30mplus3032Scope of delivery1 wall bracket for wall mountingIndividual requirements & procurement serviceFor questions about wall mounting and about compatibility with units not listed in the table, our procurement service accepts enquiries.

Manufacturer's RRP: €231.34
Stainless steel perforated shelf, illustration
Memmert stainless steel perforated tray B68506 for size 30
Manufacturer number: B68506

The B68506 stainless steel perforated tray is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. It is a shelf and therefore one shelf level in the interior. The size corresponds to the number in the unit name, for example UF30 or UN30. The image is for illustration only.According to Memmert, the maximum load per shelf for this size is 20 kg. In addition, the maximum load per unit limits the loading; it is stated in the unit’s data sheet.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Tempering and curing of individual material samples, for example in the UF30Incubating culture media and cultures in routine microbiology, for example in the IN30 incubatorSuitable forModelSizeInterior volume (l)UF303032UN303032UF30plus3032UN30plus3032IF30plus3032IN30plus3032IF303032IN303032UN30pa3032IPP303032IPP30plus3032IN30m3032IN30mplus3032IF30m3032IF30mplus3032UN30m3032UN30mplus3032UF30m3032UF30mplus3032Technical detailsMaterialStainless steelLoad per shelf according to Memmert20 kgScope of delivery1 stainless steel perforated trayIndividual requirements & procurement serviceFor grids, further perforated trays and drip trays, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €103.20
memmert untergestell fahrbar
Memmert mobile base frame B29746, height 660 mm, for size 30
Manufacturer number: B29746

The mobile base frame B29746 is 660 mm high.It is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. The levelling version with a height of 600 mm is also available (B29745), as is a flat base frame with a height of 130 mm (B33657). The image is for illustration only. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsUnits of size 30 are placed on the base frame. Typical uses of these units:Incubating culture media and cultures in routine microbiology, for example in the IN30 incubatorDrying and heating in industrial quality assurance, for example in the UN30plusMicrobiological cooled incubation in the IPP30 Peltier cooling incubatorSample preparation in pathology and histology in the UN30pa paraffin ovenWhen installing, the clearances of the unit apply; for the UN30 universal oven, at least 15 cm wall clearance, 20 cm ceiling clearance and 5 cm side clearance.Suitable forModelSizeInterior volume (l)UF303032UN303032UF30plus3032UN30plus3032IF30plus3032IN30plus3032IF303032IN303032UN30pa3032IPP303032IPP30plus3032IN30m3032IN30mplus3032IF30m3032IF30mplus3032UN30m3032UN30mplus3032UF30m3032UF30mplus3032Technical detailsHeight660 mmScope of delivery1 mobile base frame, height 660 mmIndividual requirements & procurement serviceFor the flat and the levelling version, for base frames for other unit sizes, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €389.58
memmert einschiebe abtropfschale
Memmert stainless steel slide-in drip tray B02070 for size 30
Manufacturer number: B02070

The B02070 slide-in drip tray is made of stainless steel and has a 15 mm rim. It is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30 and collects dripping liquid. According to Memmert, the maximum load per slide-in drip tray for this size is 1.5 kg. The size corresponds to the number in the unit name, for example UF30 or UN30.In addition, according to Memmert, it can impair the spatial temperature distribution. The base drip tray for the same unit size is also available (B04356). The image is for illustration only.Typical applicationsTypical uses in the compatible units:Drying smaller sample quantities and laboratory glassware on the laboratory bench, for example in the UN30Embedding and heating paraffin or other embedding media for histology, for example in the UN30pa paraffin ovenSuitable forModelSizeInterior volume (l)UF303032UN303032UF30plus3032UN30plus3032IF30plus3032IN30plus3032IF303032IN303032UN30pa3032IPP303032IPP30plus3032IN30m3032IN30mplus3032IF30m3032IF30mplus3032UN30m3032UN30mplus3032UF30m3032UF30mplus3032Technical detailsMaterialStainless steelRim15 mmMaximum load according to Memmert1.5 kgScope of delivery1 stainless steel slide-in drip tray, 15 mm rimIndividual requirements & procurement serviceFor the base drip tray, for grids and perforated trays of the same size, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €67.94
memmert boden abtropfschale
Memmert stainless steel base drip tray B04356 for size 30
Manufacturer number: B04356

The stainless steel base drip tray B04356 is intended for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. It has a 15 mm rim and collects dripping liquid. Memmert states a maximum load of 1.5 kg per base drip tray. The size corresponds to the number in the unit name, for example UF30 or UN30.According to Memmert, it can impair the spatial temperature distribution. The slide-in drip tray for the same unit size is also available (B02070). The image is for illustration only.Typical applicationsTypical uses in the compatible units:Drying smaller sample quantities and laboratory glassware on the laboratory bench, for example in the UN30Embedding and heating paraffin or other embedding media for histology, for example in the UN30pa paraffin ovenSuitable forModelSizeInterior volume (l)UF303032UN303032UF30plus3032UN30plus3032IF30plus3032IN30plus3032IF303032IN303032UN30pa3032IPP303032IPP30plus3032IN30m3032IN30mplus3032IF30m3032IF30mplus3032UN30m3032UN30mplus3032UF30m3032UF30mplus3032Technical detailsMaterialStainless steelRim15 mmMaximum load according to Memmert1.5 kgScope of delivery1 stainless steel base drip tray, 15 mm rimIndividual requirements & procurement serviceFor the slide-in drip tray, for grids and perforated trays of the same size, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €103.20
Memmert levelling base frame B33657, height 130 mm, for size 30
Manufacturer number: B33657

The levelling base frame B33657, with a height of 130 mm, is the flat version for Memmert units in the U, Um, UNpa, I, Im and IPPeco series in size 30. It fits 19 models of this size. The size corresponds to the number in the unit name, for example UF30 or UN30.The base frame B29745 with a height of 600 mm is also available for this size.Typical applicationsUnits of size 30 are placed on the base frame. Typical uses of these units:Incubating culture media and cultures in routine microbiology, for example in the IN30 incubatorDrying and heating in industrial quality assurance, for example in the UN30plusMicrobiological cooled incubation in the IPP30 Peltier cooling incubatorSample preparation in pathology and histology in the UN30pa paraffin ovenSuitable forModelSizeInterior volume (l)UF303032UN303032UF30plus3032UN30plus3032IF30plus3032IN30plus3032IF303032IN303032UN30pa3032IPP303032IPP30plus3032IN30m3032IN30mplus3032IF30m3032IF30mplus3032UN30m3032UN30mplus3032UF30m3032UF30mplus3032Technical detailsHeight130 mmScope of delivery1 levelling base frame, height 130 mmIndividual requirements & procurement serviceFor the taller version, for base frames for other unit sizes, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €208.98
