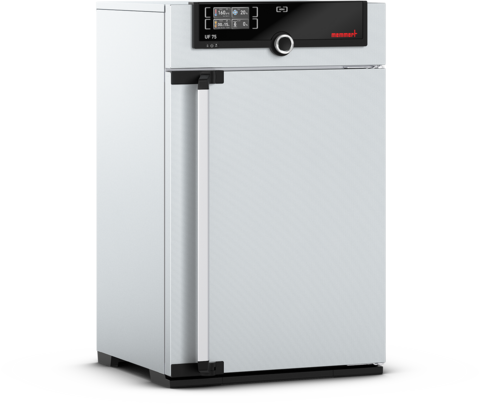

Memmert universal oven UF75m, 74 l, +20 to +300 °C, SingleDISPLAY
€2,019.00
Delivery time: 2-3 weeks
- Class I medical device under Regulation (EU) 2017/745
- For fango, silicate and APS packs in physiotherapy
- 74 litres internal volume, up to 6 shelves
- ControlCOCKPIT SingleDISPLAY with TFT colour graphic display
- Setting range +20 to +300 °C, setting accuracy 0.1 °C (up to 99.9 °C)
- Factory calibration certificate at 160 °C included
- Max. load 120 kg
Product information "Memmert universal oven UF75m, 74 l, +20 to +300 °C, SingleDISPLAY"
The Memmert universal oven UF75m has 74 litres of internal volume and is supplied with 2 grid shelves as standard. Like all models in the UF-m series, it is a Class I medical device under Regulation (EU) 2017/745, intended exclusively for the heating and keeping warm of fango, silicate and APS packs in physiotherapy, controlled via the ControlCOCKPIT SingleDISPLAY.
ControlCOCKPIT, air turbine and safety technology in the UF75m
The interior takes up to 6 shelves, and the connected load is around 2,500 watts at 230 V and around 1,800 watts at 115 V. Heat is distributed by an electronically controllable air turbine in the 74-litre interior, and an exhaust air flap admixes preheated fresh air. Settings are made via the ControlCOCKPIT SingleDISPLAY: temperature between 20 and 300 °C with a setting accuracy of 0.1 or 0.5 °C respectively, plus forced air circulation speed, exhaust air flap position and a countdown timer for process times from 1 minute to 99 days. SetpointWAIT delays the start of the process time until the moment the setpoint temperature has actually been reached. A mechanical temperature limiter of protection class 1 according to DIN 12880 and a self-diagnosis system round off the safety equipment.
Selection guide within the UF-m series
The housing measures 585 x 944 x 514 mm, plus 56 mm in depth for the door handle, and the net weight is around 66 kg. At the installation site, a distance of at least 15 cm from the wall and at least 5 cm at the sides must be observed. The shelves each carry up to 20 kg, and the unit as a whole up to 120 kg. More volume is offered by the UF110m with 108 litres, and one size smaller is the UF55m with 53 litres. With two redundant sensors and two displays, the sister model UF75mplus is available, and as a laboratory unit without classification as a medical device there is the Memmert universal oven UF75.
Typical applications
As a Class I medical device, the Memmert universal oven UF75m is intended exclusively for physiotherapeutic applications with fango, silicate and APS packs.
- Heating of fango packs for physiotherapeutic use
- Heating and keeping warm of silicate packs
- Heating and keeping warm of APS packs
Technical details
| Adjustable temperature range | 20 to 300 °C |
| Working temperature range | min. 10 °C above room temperature to 300 °C |
| Temperature setting accuracy | up to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °C |
| Temperature sensor | 1x Pt100, DIN class A, 4-wire measurement |
| Internal volume | 74 l |
| Internal dimensions (W x H x D) | 400 x 560 x 330 mm |
| External dimensions of housing (W x H x D) | 585 x 944 x 514 mm |
| Net weight | approx. 66 kg |
| Gross weight (packed) | approx. 85 kg |
| Packaging dimensions (W x H x D) | 730 x 1,130 x 670 mm |
| Connection 230 V | 50/60 Hz, approx. 2,500 W |
| Connection 115 V | 50/60 Hz, approx. 1,800 W |
| Maximum number of shelves | 6 |
| Shelves included in scope of delivery | 2 |
| Max. load of unit | 120 kg |
| Max. load per shelf | 20 kg |
| Interior material | Stainless steel, 4-sided all-round heating |
| Housing material | Textured stainless steel, galvanised sheet steel back panel |
| Control | ControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic display |
| Permissible ambient temperature | 5 °C to 40 °C |
| Permissible humidity | max. 80 % rel., non-condensing |
| Medical device classification | Class I under Regulation (EU) 2017/745 |
| Intended purpose | Heating/keeping warm of fango, silicate and APS packs in physiotherapy |
| Markings | CE, VDE, UL test marks |
Other sizes in the series
The UF-m series comprises nine sizes between 32 and 1,060 litres of internal volume, all with ControlCOCKPIT SingleDISPLAY and an identical intended purpose for physiotherapy.
| Model | Internal volume | Setting temperature | Display |
|---|---|---|---|
| UF30m | 32 l | +20 to +300 °C | SingleDISPLAY |
| UF55m | 53 l | +20 to +300 °C | SingleDISPLAY |
| UF75m (this page) | 74 l | +20 to +300 °C | SingleDISPLAY |
| UF110m | 108 l | +20 to +300 °C | SingleDISPLAY |
| UF160m | 161 l | +20 to +300 °C | SingleDISPLAY |
| UF260m | 256 l | +20 to +300 °C | SingleDISPLAY |
| UF450m | 449 l | +20 to +300 °C | SingleDISPLAY |
| UF750m | 749 l | +20 to +300 °C | SingleDISPLAY |
| UF1060m | 1,060 l | +20 to +300 °C | SingleDISPLAY |
For two redundant sensors and two displays, the sister model UF75mplus is available. As a laboratory unit without classification as a medical device, we also offer the Memmert universal oven UF75.
Scope of delivery
- 1x Memmert universal oven UF75m
- Factory calibration certificate (calibration at 160 °C)
- Fully insulated stainless steel door with 2-point locking (compression door lock)
- 2x stainless steel grid shelf, electropolished
Regulatory information
The unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Information on returning old appliances is available on our page Environment and disposal. In addition, the Memmert universal oven UF75m is classified as a Class I medical device under Regulation (EU) 2017/745, with the intended purpose of heating and keeping warm fango, silicate and APS packs in physiotherapy.
Individual requirements and procurement service
For the UF75m, we assist with the selection of additional accessories and with spare parts enquiries. Please contact us for individual coordination.
| Volume: | 74 l |
|---|
