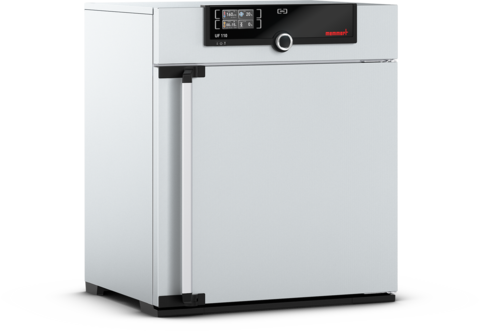

Memmert universal oven UF110m, 108 l, +20 to +300 °C, SingleDISPLAY
€2,356.00
Delivery time: 2-3 weeks
- Class I medical device under Regulation (EU) 2017/745
- For fango, silicate and APS packs in physiotherapy
- 108 litres internal volume, up to 5 shelves
- ControlCOCKPIT SingleDISPLAY with TFT colour graphic display
- Setting range +20 to +300 °C, setting accuracy 0.1 °C (up to 99.9 °C)
- Factory calibration certificate at 160 °C included
- Max. load 175 kg
Product information "Memmert universal oven UF110m, 108 l, +20 to +300 °C, SingleDISPLAY"
The Memmert universal oven UF110m has 108 litres of internal volume and sits in the UF-m series between the UF75m with 74 litres and the UF160m with 161 litres. As a Class I medical device under Regulation (EU) 2017/745, the UF110m is also intended exclusively for the heating and keeping warm of fango, silicate and APS packs, controlled via the ControlCOCKPIT SingleDISPLAY with one Pt100 sensor.
Control and safety of the UF110m in detail
The ControlCOCKPIT SingleDISPLAY is at the centre of operation: an adaptive PID microprocessor controller that controls temperature, forced air circulation speed, exhaust air flap position and program run time via a TFT colour graphic display, supplemented by a countdown timer from 1 minute to 99 days and SetpointWAIT for the delayed start of the process time. Heat distribution in the 108-litre interior is provided by an air turbine that is electronically controllable in 10 % steps. The setting temperature range extends from 20 to 300 °C with a setting accuracy of 0.1 °C up to 99.9 °C and 0.5 °C from 100 °C, measured by a DIN class A Pt100 sensor. In the event of a power failure, the program run remains stored and can be read out via Ethernet with AtmoCONTROL. On the safety side, a DIN 12880 temperature limiter of protection class 1 complements the electronic monitoring, and a self-diagnosis system assists with troubleshooting.
Selection guide within the UF-m series
The housing is 864 mm high and 584 mm deep, plus 56 mm for the door handle, and the net weight is around 74 kg. The cabinet is transported upright, and at the installation site a distance of at least 15 cm from the wall and at least 5 cm at the sides must be observed. The interior of 560 x 560 x 480 mm holds up to 5 shelves, with a load capacity of 20 kg per shelf and 175 kg in total. One size smaller is the UF75m with 74 litres and up to 6 shelves, and one size larger is the UF160m with 161 litres and up to 8 shelves. For two redundant sensors and two displays, the sister model UF110mplus is available, and as a laboratory unit without classification as a medical device there is the Memmert universal oven UF110.
Typical applications
As a Class I medical device, the Memmert universal oven UF110m is intended exclusively for physiotherapeutic applications with fango, silicate and APS packs.
- Heating of fango packs for physiotherapeutic use
- Heating and keeping warm of silicate packs
- Heating and keeping warm of APS packs
Technical details
| Adjustable temperature range | 20 to 300 °C |
| Working temperature range | min. 10 °C above room temperature to 300 °C |
| Temperature setting accuracy | up to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °C |
| Temperature sensor | 1x Pt100, DIN class A, 4-wire measurement |
| Internal volume | 108 l |
| Internal dimensions (W x H x D) | 560 x 560 x 480 mm |
| External dimensions of housing (H x D) | 864 x 584 mm |
| Net weight | approx. 74 kg |
| Gross weight (packed) | approx. 99 kg |
| Packaging dimensions (W x H x D) | 830 x 1,050 x 800 mm |
| Connection 230 V | 50/60 Hz, approx. 2,800 W |
| Connection 115 V | 50/60 Hz, approx. 1,800 W |
| Maximum number of shelves | 5 |
| Shelves included in scope of delivery | 2 |
| Max. load of unit | 175 kg |
| Max. load per shelf | 20 kg |
| Interior material | Stainless steel, 4-sided all-round heating |
| Housing material | Textured stainless steel, galvanised sheet steel back panel |
| Control | ControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic display |
| Permissible ambient temperature | 5 °C to 40 °C |
| Permissible humidity | max. 80 % rel., non-condensing |
| Medical device classification | Class I under Regulation (EU) 2017/745 |
| Intended purpose | Heating/keeping warm of fango, silicate and APS packs in physiotherapy |
| Markings | CE, VDE, UL test marks |
Other sizes in the series
The UF-m series comprises nine sizes between 32 and 1,060 litres of internal volume, all with ControlCOCKPIT SingleDISPLAY and an identical intended purpose for physiotherapy.
| Model | Internal volume | Setting temperature | Display |
|---|---|---|---|
| UF30m | 32 l | +20 to +300 °C | SingleDISPLAY |
| UF55m | 53 l | +20 to +300 °C | SingleDISPLAY |
| UF75m | 74 l | +20 to +300 °C | SingleDISPLAY |
| UF110m (this page) | 108 l | +20 to +300 °C | SingleDISPLAY |
| UF160m | 161 l | +20 to +300 °C | SingleDISPLAY |
| UF260m | 256 l | +20 to +300 °C | SingleDISPLAY |
| UF450m | 449 l | +20 to +300 °C | SingleDISPLAY |
| UF750m | 749 l | +20 to +300 °C | SingleDISPLAY |
| UF1060m | 1,060 l | +20 to +300 °C | SingleDISPLAY |
The UF110m is also available with two displays and two redundant sensors as the UF110mplus. As a laboratory unit without classification as a medical device, we also offer the Memmert universal oven UF110.
Scope of delivery
- 1x Memmert universal oven UF110m
- Factory calibration certificate (calibration at 160 °C)
- Fully insulated stainless steel door with 2-point locking (compression door lock)
- 2x stainless steel grid shelf, electropolished
Regulatory information
The unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Information on returning old appliances is available on our page Environment and disposal. In addition, the Memmert universal oven UF110m is classified as a Class I medical device under Regulation (EU) 2017/745, with the intended purpose of heating and keeping warm fango, silicate and APS packs in physiotherapy.
Individual requirements and procurement service
For options, accessories and spare parts for the UF110m, we provide individual advice tailored to the workflows in your practice. Please contact us with your specific requirements.
