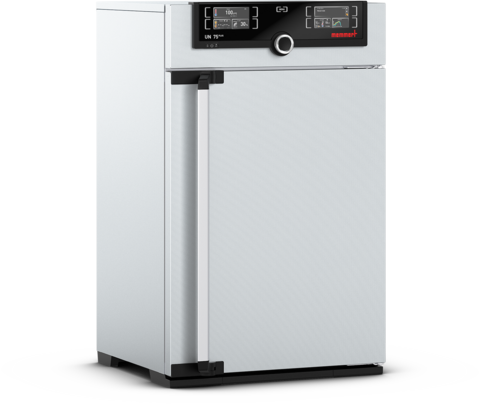

Memmert universal oven UN75mplus, 74 l, +20 to +300 °C, TwinDISPLAY
€2,406.00
Delivery time: 2-3 weeks
- Class I medical device under Regulation (EU) 2017/745
- For fango, silicate and APS packs in physiotherapy
- 74 litres internal volume, 2 grid shelves as standard
- 2x redundant Pt100 sensors with function takeover in the event of a fault
- ControlCOCKPIT TwinDISPLAY with 2 TFT colour graphic displays
- HeatBALANCE and AutoSAFETY as standard
- Factory calibration certificate included (calibration at +160 °C)
Product information "Memmert universal oven UN75mplus, 74 l, +20 to +300 °C, TwinDISPLAY"
The Memmert universal oven UN75mplus is classified as a Class I medical device under Regulation (EU) 2017/745, and its intended purpose is the heating and keeping warm of fango, silicate and APS packs in physiotherapy. The interior holds 74 litres and takes up to six shelves, and two stainless steel grid shelves are part of the standard equipment.
Sensors and setting accuracy
Two Pt100 sensors of DIN class A measure using 4-wire technology and back each other up: if one sensor fails, the second automatically takes over its task. Display is via the ControlCOCKPIT TwinDISPLAY with two TFT colour graphic displays, and the setting accuracy is 0.1 °C up to a setpoint temperature of 99.9 °C and 0.5 °C above that. HeatBALANCE shifts the heating power distribution between the upper and lower heating group by -50 to +50 %, and a digital countdown timer covers target times from 1 minute to 99 days.
Safety technology
The mechanical temperature limiter of protection class 1 according to DIN 12880 disconnects the heating at around 20 °C above the maximum permissible cabinet temperature, and an adjustable temperature monitor of protection class 3.1 or an adjustable temperature limiter of protection class 2 can also be activated on the display. AutoSAFETY reports deviations from the setpoint within a freely selectable distance visually and audibly, and a self-diagnosis system assists with troubleshooting. Programs are managed via Ethernet or USB with the AtmoCONTROL software.
Dimensions, loading and connection
Internally, the UN75mplus measures 400 x 560 x 330 mm and externally 585 x 944 x 514 mm plus 56 mm for the door handle, and the net weight is around 66 kg. The permissible total load is 120 kg with a maximum of 20 kg per shelf. The mains connection is 230 V with approx. 2,500 W, and 115 V with approx. 1,800 W is available as an alternative.
Distinction from the laboratory oven and the SingleDISPLAY version
For laboratories and industry without a medical intended purpose, the Memmert universal oven UN75plus with TwinDISPLAY is available in the same size. If you are looking for a SingleDISPLAY with one Pt100 sensor instead of redundant dual sensors, the UN75m is available as a Class I medical device with the same intended purpose.
Selection guide: the right size
With 53 litres, four shelves and a housing 160 mm lower, the UN55mplus is the smaller alternative. If more volume is needed, the Memmert universal oven UN110mplus offers 108 litres and a 175 kg total load with five shelves.
Typical applications
The intended purpose of the UN75mplus as a Class I medical device is limited to the heating and keeping warm of fango, silicate and APS packs in physiotherapy.
- Heating and keeping warm of fango packs in physiotherapy
- Heating and keeping warm of silicate packs
- Heating and keeping warm of APS packs
Technical details
| Adjustable temperature range | +20 to +300 °C |
| Working temperature range | min. 5 °C above room temperature to +300 °C |
| Temperature setting accuracy | up to 99.9 °C: 0.1 °C, from 100 °C: 0.5 °C |
| Temperature sensor | 2x Pt100, DIN class A, 4-wire measurement, mutual monitoring |
| Internal volume | 74 l |
| Internal dimensions (W x H x D) | 400 x 560 x 330 mm |
| External dimensions of housing (W x H x D) | 585 x 944 x 514 mm |
| Net weight | approx. 66 kg |
| Gross weight (shipping carton) | approx. 85 kg |
| Connection | 230 V, 50/60 Hz, approx. 2,500 W; 115 V, 50/60 Hz, approx. 1,800 W |
| Shelves included in scope of delivery | 2 |
| Maximum number of shelves | 6 |
| Max. load of unit | 120 kg |
| Max. load per shelf | 20 kg |
| Packaging dimensions (W x H x D) | 730 x 1,130 x 670 mm |
| Control | ControlCOCKPIT TwinDISPLAY, PID microprocessor controller, 2x TFT colour graphic display |
| Additional functions | HeatBALANCE, AutoSAFETY, visual and audible alarm |
| Medical device classification | Class I under Regulation (EU) 2017/745 |
| Intended purpose | Heating/keeping warm of fango, silicate and APS packs in physiotherapy |
| Permissible ambient temperature | 5 °C to 40 °C |
| Permissible humidity | max. 80 % rel., non-condensing |
| Markings | CE, VDE, UL |
Other sizes in the series
Eight sizes between 32 and 749 litres make up the UN-mplus series, all with TwinDISPLAY, natural convection and a setting temperature range of +20 to +300 °C. With SingleDISPLAY and one sensor, the same size is also available as the UN75m.
| Model | Internal volume | Setting temperature | Display |
|---|---|---|---|
| UN30mplus | 32 l | +20 to +300 °C | TwinDISPLAY |
| UN55mplus | 53 l | +20 to +300 °C | TwinDISPLAY |
| UN75mplus (this page) | 74 l | +20 to +300 °C | TwinDISPLAY |
| UN110mplus | 108 l | +20 to +300 °C | TwinDISPLAY |
| UN160mplus | 161 l | +20 to +300 °C | TwinDISPLAY |
| UN260mplus | 256 l | +20 to +300 °C | TwinDISPLAY |
| UN450mplus | 449 l | +20 to +300 °C | TwinDISPLAY |
| UN750mplus | 749 l | +20 to +300 °C | TwinDISPLAY |
Scope of delivery
- 1x Memmert universal oven UN75mplus
- Factory calibration certificate (calibration at +160 °C)
- Fully insulated stainless steel door with 2-point locking (compression door lock)
- 2x stainless steel grid shelves, electropolished
Regulatory information
The unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer Memmert GmbH + Co. KG is DE 66812464. Information on returning old appliances is available on our page Environment and disposal. The unit is also classified as a Class I medical device under Regulation (EU) 2017/745, with the intended purpose of heating and keeping warm fango, silicate and APS packs in physiotherapy.
Individual requirements and procurement service
For the UN75mplus, we offer further accessories as well as options and services relating to calibration and qualification. Tell us your requirements and we will put together the suitable configuration.
| Volume: | 74 l |
|---|
