Nabertherm
Nabertherm produziert Hochtemperaturöfen und Thermoprozessanlagen für Labor, Forschung und Industrie. Das Sortiment reicht von Muffelöfen über Trockenschränke bis zu Speziallösungen für Materialprüfung und Wärmebehandlung – mit deutscher Ingenieurskunst und höchster Präzision.

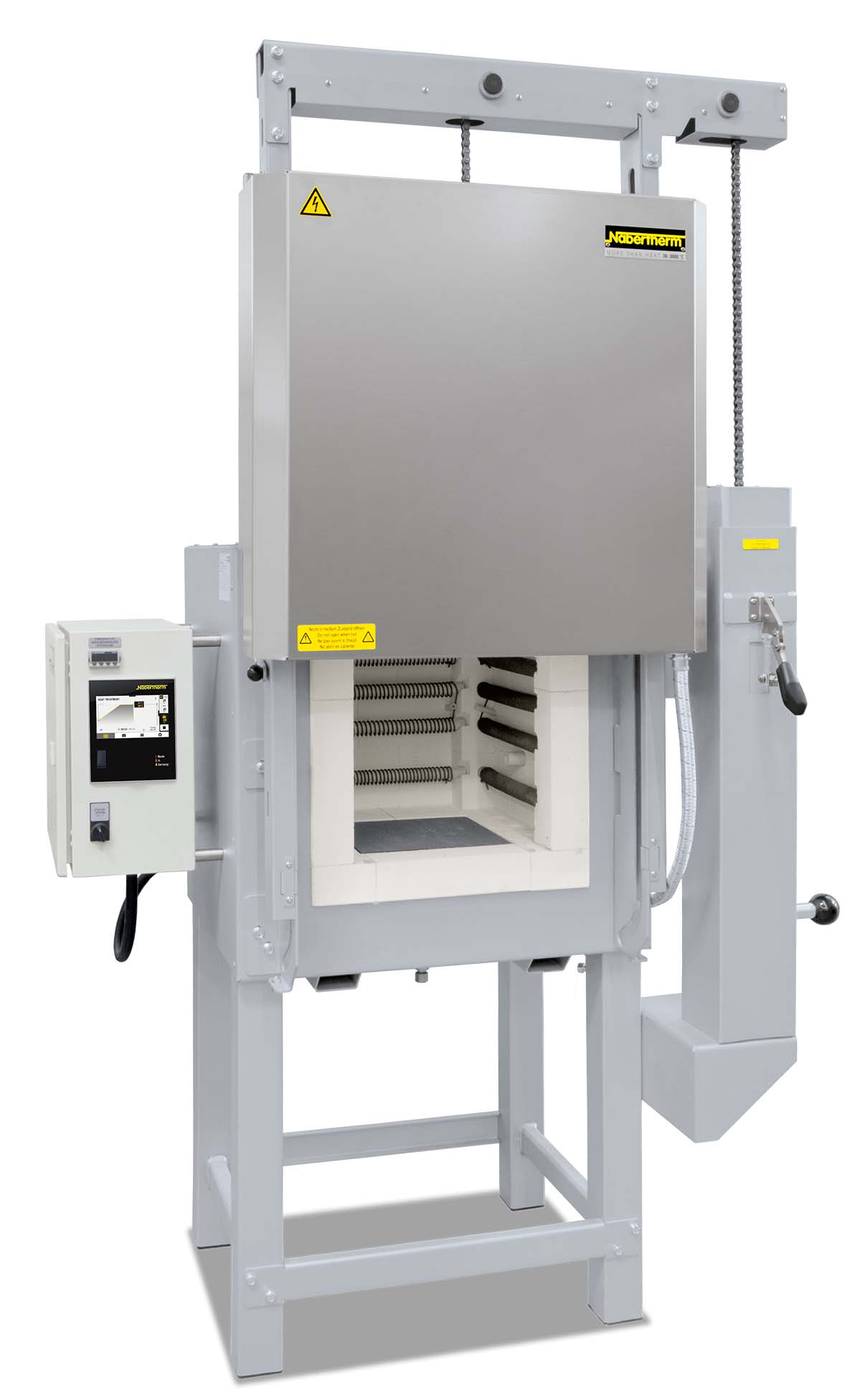

Nabertherm LH 30/12/B500 chamber furnace with brick insulation, Tmax 1200°C, #LH0322NKNE
Nabertherm LH 30/12/B500 chamber furnace with brick insulation, Tmax 1200°C, #LH0322NKNE Technical data: Model: LH30/12 Max. temperature: 1200°C Internal dimensions: 320mm x 320mm x 320mm (WxDxH) External dimensions: 710mm x 930mm x 1290mm (WxDxH) Volume: 30L Max. Power consumption: 7 kW Electrical connection: 3-phase Weight: 200 kg Many other configurations and accessory options are available on request!
Nabertherm Muffle Furnace L 5/11, Tmax 1100 °C, 5 l capacity, hinged door, L-055K1ANL
The Nabertherm L 5/11 muffle furnace is a compact, reliable and high-performance laboratory furnace for precise heat treatment up to 1100 °C. With a furnace volume of 5 litres, it is ideally suited to a wide range of applications in research, industry and quality assurance. The hinged door also serves as a secure work surface, whilst the high-quality insulation ensures even temperature distribution. The robust construction and precise control system guarantee reproducible results – even during continuous operation. Technical specifications: Max. temperature: 1100 °C Internal dimensions (W × D × H): 200 × 170 × 130 mm External dimensions (W × D × H): 455 × 410 × 490 mm Internal capacity: 5 l Power consumption: 2.4 kW Electrical connection: single-phase Weight: 30 kg Heating time to 1100 °C: approx. 45 min Accessories such as exhaust air systems, protective tubes, thermocouples or control units (e.g. Controller B510) are available as optional extras.

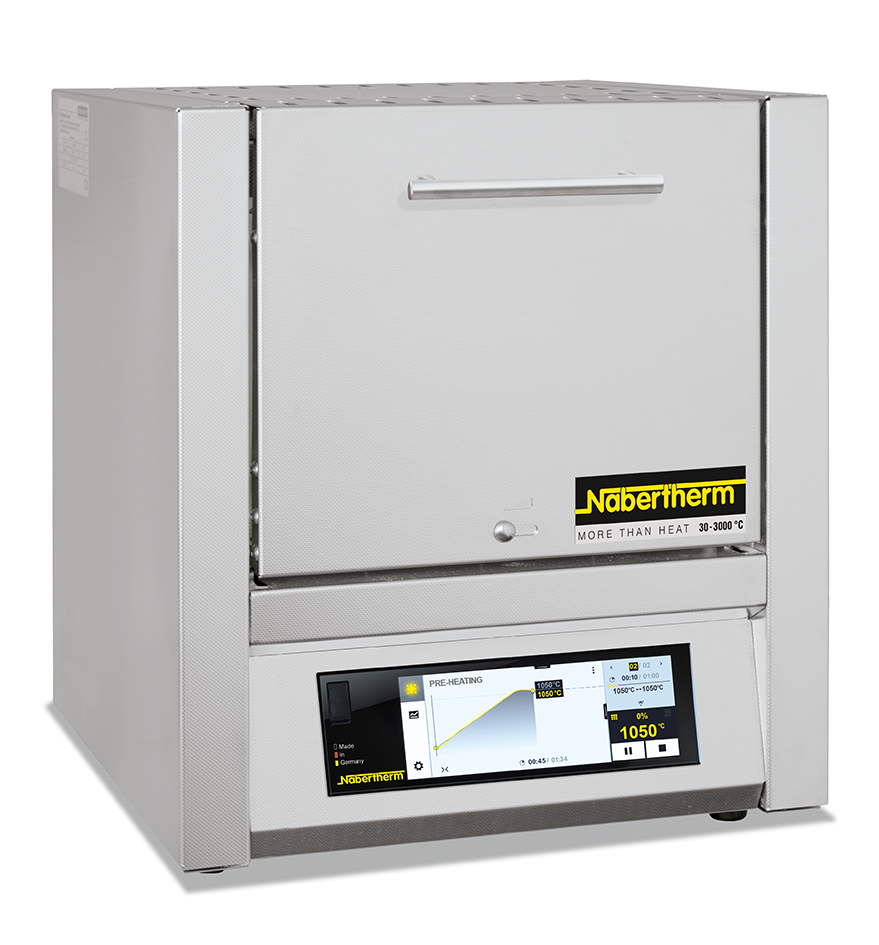

Nabertherm Muffle Furnace L 3/12, Tmax 1200 °C, 3 l capacity, hinged door, L-035K2ANL
The Nabertherm L 3/12 muffle furnace is a compact, high-precision laboratory muffle furnace for applications up to 1200 °C. With a furnace volume of 3 litres, it is ideally suited for everyday use in research, industry, laboratories and workshops. The hinged door serves as a sturdy work surface and facilitates the safe loading and unloading of samples. Thanks to its uniform temperature distribution and high-quality insulation, the furnace delivers reproducible results whilst offering high energy efficiency and a long service life. Technical specifications: Max. temperature: 1200 °C Internal dimensions (W × D × H): 160 × 140 × 100 mm External dimensions (W × D × H): 385 × 330 × 405 mm Chamber capacity: 3 l Power consumption: 1.3 kW Electrical connection: single-phase Weight: 21 kg Heating time to 1200 °C: approx. 55 min Optional accessories: exhaust air systems, protective tubes, thermocouples, controllers (B510 or C450).

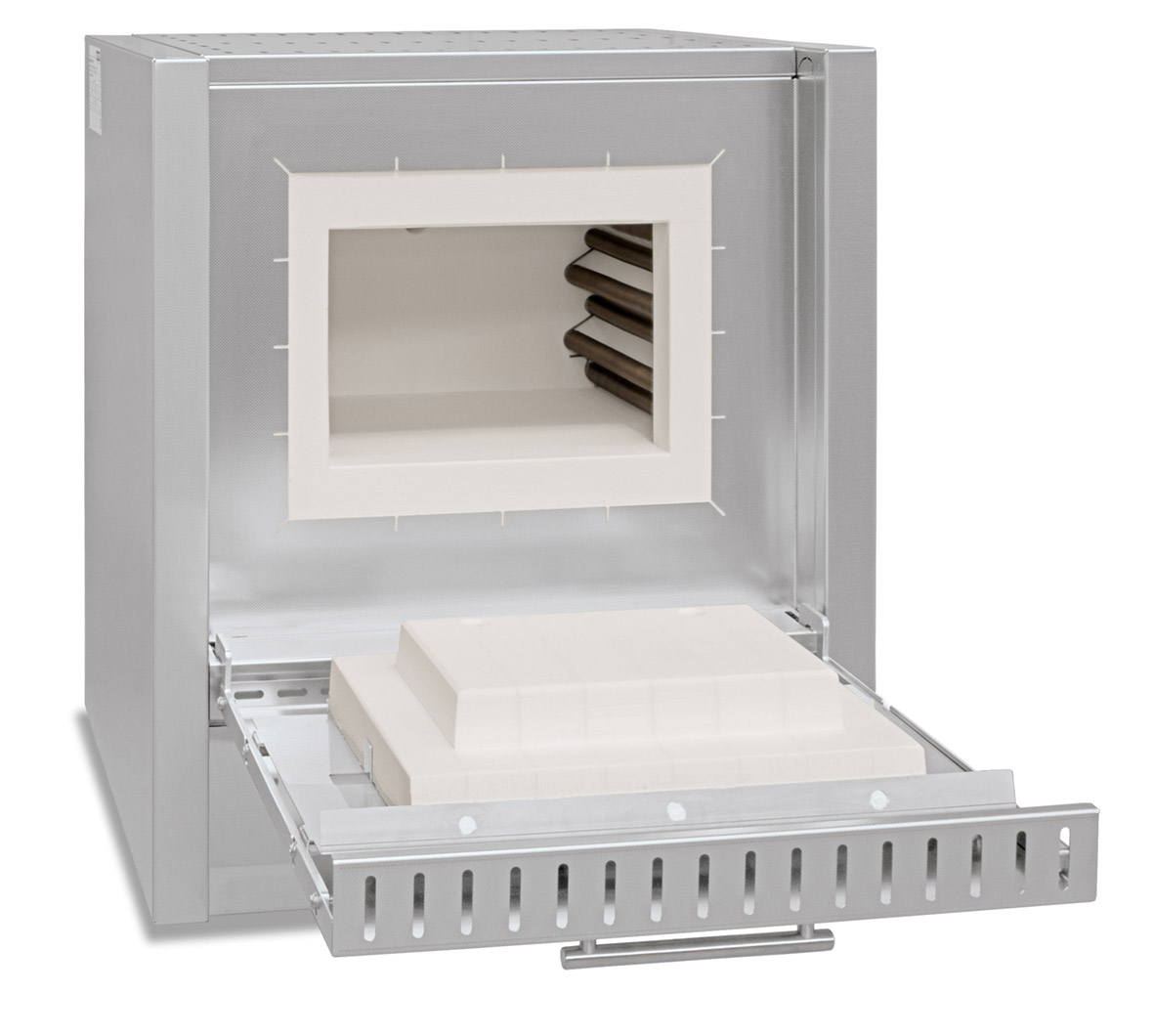

Nabertherm L9/14/B510 Tmax1400 muffle furnace with hinged door, #L-095K4ANL
Nabertherm L9/14/B510 Tmax1400 muffle furnace with hinged door, #L-095K4ANL Technical specifications: Model: L9/14 Max. temperature: 1400°C Internal dimensions: 250mm x 250mm x 170mm (WxDxH) External dimensions: 530mm x 525mm x 630mm (WxDxH) Volume: 9L Max. Power consumption: 3.5 kW Electrical connection: single-phase Weight: 55 kg Heating time: 50 minutes Many further configurations and accessory options are available on request!

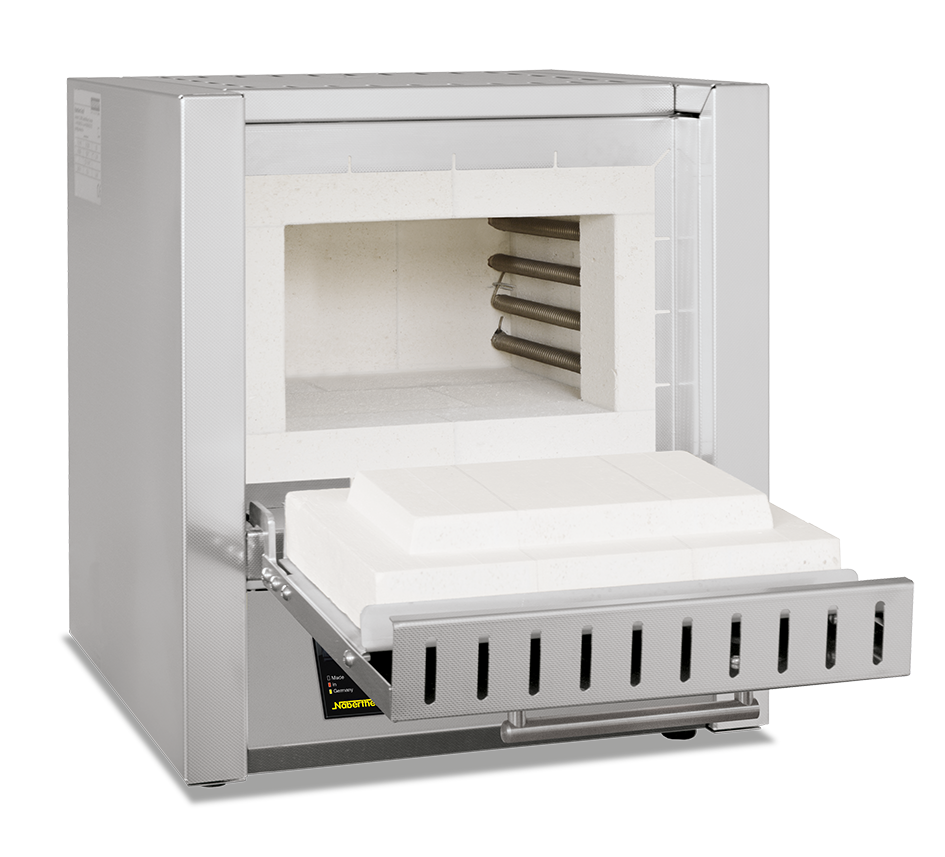

Nabertherm L9/13/B510 Tmax1300 muffle furnace with hinged door, #L-095K3ANL
Nabertherm L9/13/B510 Tmax1300 muffle furnace with hinged door, #L-095K3ANL Technical specifications: Model: L9/13 Max. temperature: 1300°C Internal dimensions: 250mm x 240mm x 170mm (WxDxH) External dimensions: 530mm x 525mm x 630mm (WxDxH) Volume: 9L Max. Power consumption: 3.3 kW Electrical connection: single-phase Weight: 58 kg Heating time: 60 minutes Many more configurations and accessory options are available on request!
Nabertherm RHTV 120/600/17/P570 vertical high-temperature furnace, Tmax 1700°C, #RV322V72AN
Nabertherm RHTV 120/600/17/P570 vertical high-temperature furnace, Tmax 1700°C, #RV322V72AN Technical data: Model: RHTV 120/600/17 Max. temperature: 1700°C (Specified outside the tube. Difference from the temperature inside the tube up to +50 K ) External dimensions: 680 mm x 700 mm x 1580 mm (WxDxH) --> Height excluding tube; external dimensions vary for versions with additional equipment. Dimensions available on request. Max. external tube diameter: 120 mm Heated length: 600 mm Length at constant temperature ± 5 K: 170 mm Tube length: 830 mm Max. connected load: 19.4 kW Electrical connection: 3-phase (heating between two phases only) Weight: 110 kg Many further configurations and accessory options are available on request!

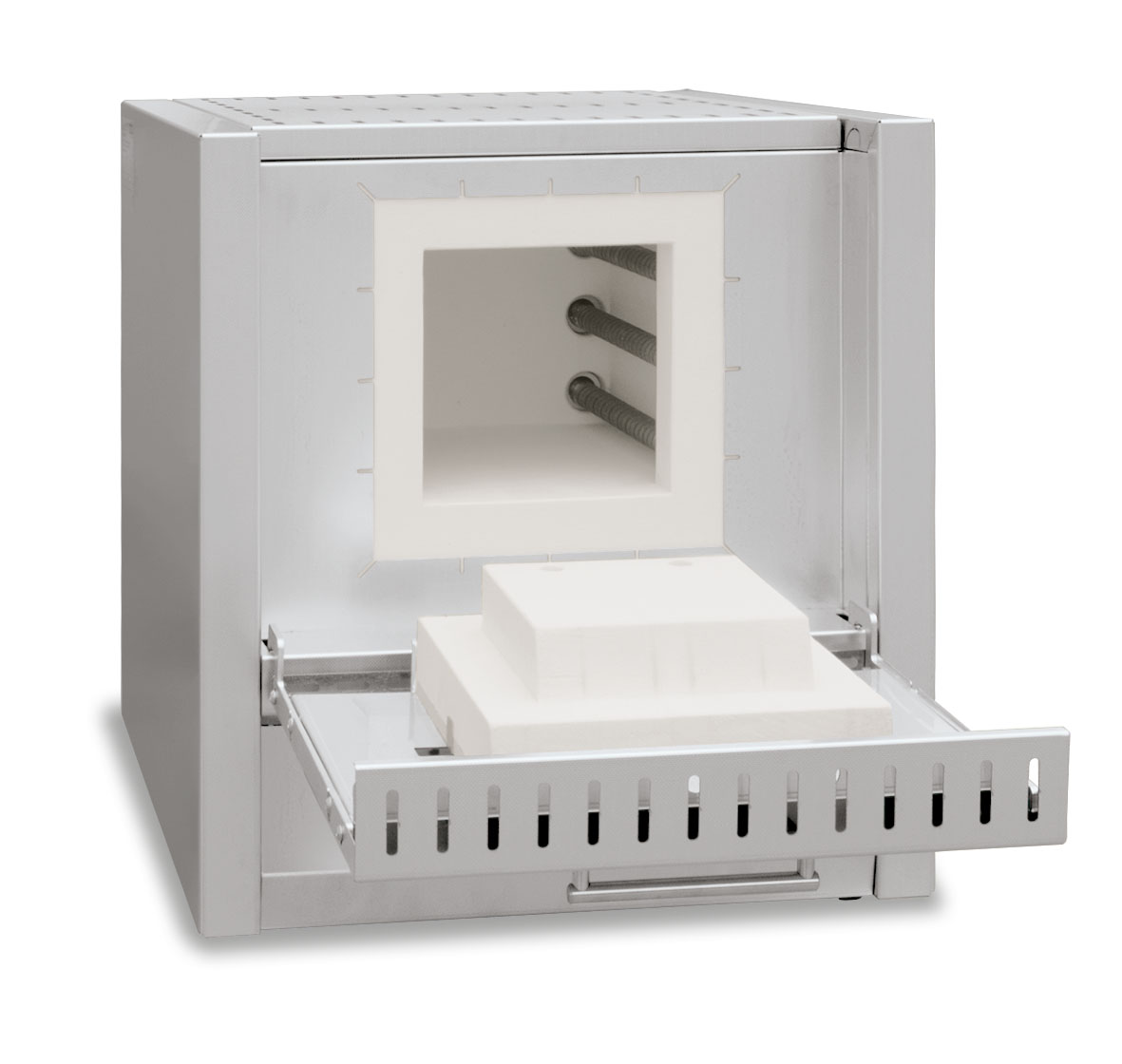

Nabertherm LHTC 08/16/C550 high-temperature furnace, SiC heating elements, Tmax 1600°C, #LC084K6ON8
Nabertherm LHTC 08/16/C550 high-temperature furnace, SiC heating, Tmax 1600°C, #LC084K6ON8 Technical data: Model: LHTC 08/16 Max. temperature: 1600°C Internal dimensions: 170mm x 290mm x 170mm (WxDxH) External dimensions: 490mm x 625mm x 540mm (WxDxH) Volume: 8L Max. Power consumption: 12.5 kW Electrical connection: 3-phase Weight: 58 kg Heating-up time: 25 minutes Many other configurations and accessory options are available on request!

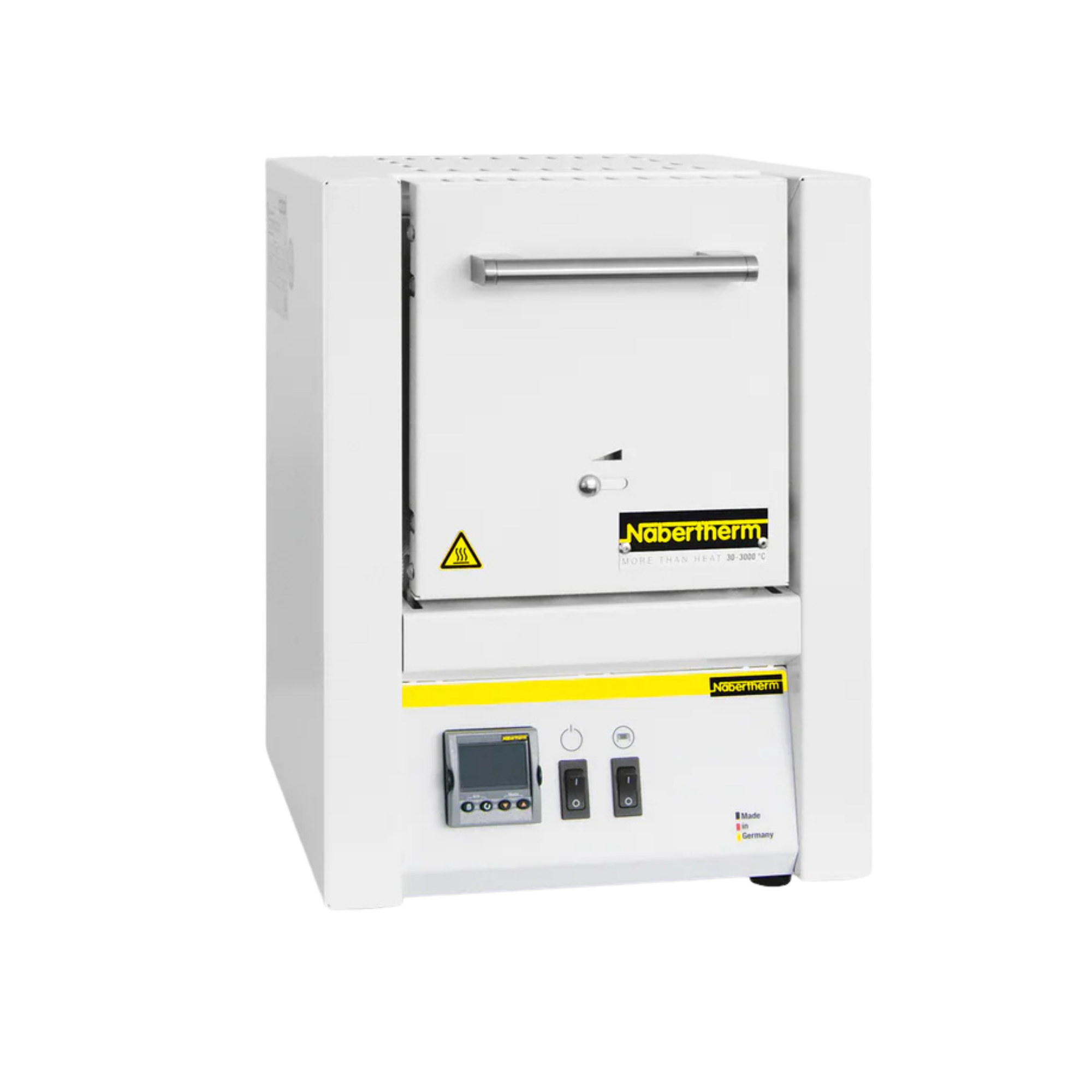

Nabertherm LE 1/11 Compact Muffle Furnace, R7 Controller, 1100 °C, LE013K17N1
Thermodynamic infrared transmission and quartz glass encapsulation In analytical gravimetry and preparative ashing, the thermal decomposition of organic and inorganic matrices requires extremely steep heating rates and complete temperature homogeneity. The Nabertherm LE 1/11 operates as a thermodynamic high-temperature furnace with a maximum operating temperature of 1100 °C on a 1-litre scale. Thermal energy is supplied via heating elements arranged on both sides. These are hermetically sealed within high-purity quartz glass tubes. This specific materials-science architecture generates an excellent infrared transmittance for heat radiation. At the same time, the silicate glass physically protects the metallic heating elements from corrosive exhaust gases, halogens or acid vapours produced during the pyrolysis of the samples. This prevents the oxidative degradation of the heating elements and guarantees constant isochoric heat transfer. Metrological cybernetics and PID control (Controller R7) The R7 cybernetic module controls the thermal vectors. This digital PID temperature controller is metrologically designed for continuous isothermal operation at a defined target value (single setpoint). The control loop measures the actual thermodynamic value at the centre of the furnace via an integrated thermocouple and modulates the 1.5 kW electrical heating power in an anticipatory manner. This algorithm physically eliminates thermal overshoot. Power control is achieved via wear-free, pulse-switching solid-state relays. This guarantees absolutely silent operation without mechanical contact wear and enables extremely high-frequency switching cycles to maintain precise temperature stability. Double-walled system structure and thermal containment The continuous application of 1100 °C requires substantial thermodynamic insulation. The housing of the LE 1/11 is constructed using a structural double-walled architecture made of textured stainless steel sheet. A forced convective cooling air flow circulates between the red-hot combustion chamber and the outer skin. This keeps the external surface temperatures at a level that is safe from an occupational health perspective and protects the sensitive control electronics from thermal degradation. The interior is lined with a non-classified high-temperature fibre insulation, which drastically minimises conductive heat loss. When open, the front mechanical hinged door acts as a highly resistant ceramic work surface. This allows the user to place red-hot crucibles on it in a thermodynamically safe manner before transferring them to the desiccator using tongs. Technical details Thermodynamics & Heating Technology Maximum operating temperature (Tmax): 1100 °C Recommended continuous operating temperature: approx. 1050 °C Heating elements: On both sides (left/right), encapsulated in quartz glass tubes Insulation material: Fibre insulation (not classified as carcinogenic according to TRGS 905 / Class 1/2) Heating time (to Tmax): approx. 25 to 35 minutes (unloaded, voltage-dependent) Metrology & Control Technology Controller architecture: R7 (digital PID control) Adjustable parameters: 1 target temperature (single setpoint) Power circuit: Silent solid-state relays (semiconductor contactors) Temperature measurement: Integrated high-temperature thermocouple (type N or S) Chamber Infrastructure & Dimensions Total internal chamber volume: 1 litre Internal system dimensions (W x D x H): 90 x 115 x 110 mm External system dimensions (W x D x H): 290 x 280 x 410 mm Door design: Mechanical hinged door (can be used as a ceramic shelf) Machine weight: approx. 10 kg Housing material: Double-walled textured stainless steel sheet Exhaust system: Integrated exhaust vent in the rear wall of the oven Safety & Electrical Voltage / Phase configuration: 230 V / single-phase (L/N/PE) Mains frequency: 50/60 Hz Rated electrical power: 1.5 kW Protection class (to DIN EN 60529): IP 20 Scope of delivery 1 x Nabertherm LE 1/11 compact muffle furnace 1 x R7 controller (permanently integrated) 1 x IEC power cable (Schuko) (Important note: Heat-resistant crucibles, crucible tongs, personal protective equipment or flues for exhaust gas extraction are not included in the scope of delivery!) Individual requirements & accessories The Nabertherm LE 1/11 generates extreme thermal energy in a minimal amount of space. The incineration of organic matrices (e.g. plastics, agricultural products or soils) produces massive quantities of reactive pyrolysis gases. To prevent contamination of the laboratory atmosphere, it is essential to install a suitable Nabertherm exhaust flue (with or without an integrated fan) at the rear exhaust vent and connect it to the laboratory exhaust system. For the safe handling of red-hot porcelain or platinum crucibles, you must use heat-resistant crucible tongs and Kevlar protective gloves approved by occupational health authorities. Please contact our procurement service at any time to discuss the configuration of your high-temperature infrastructure.

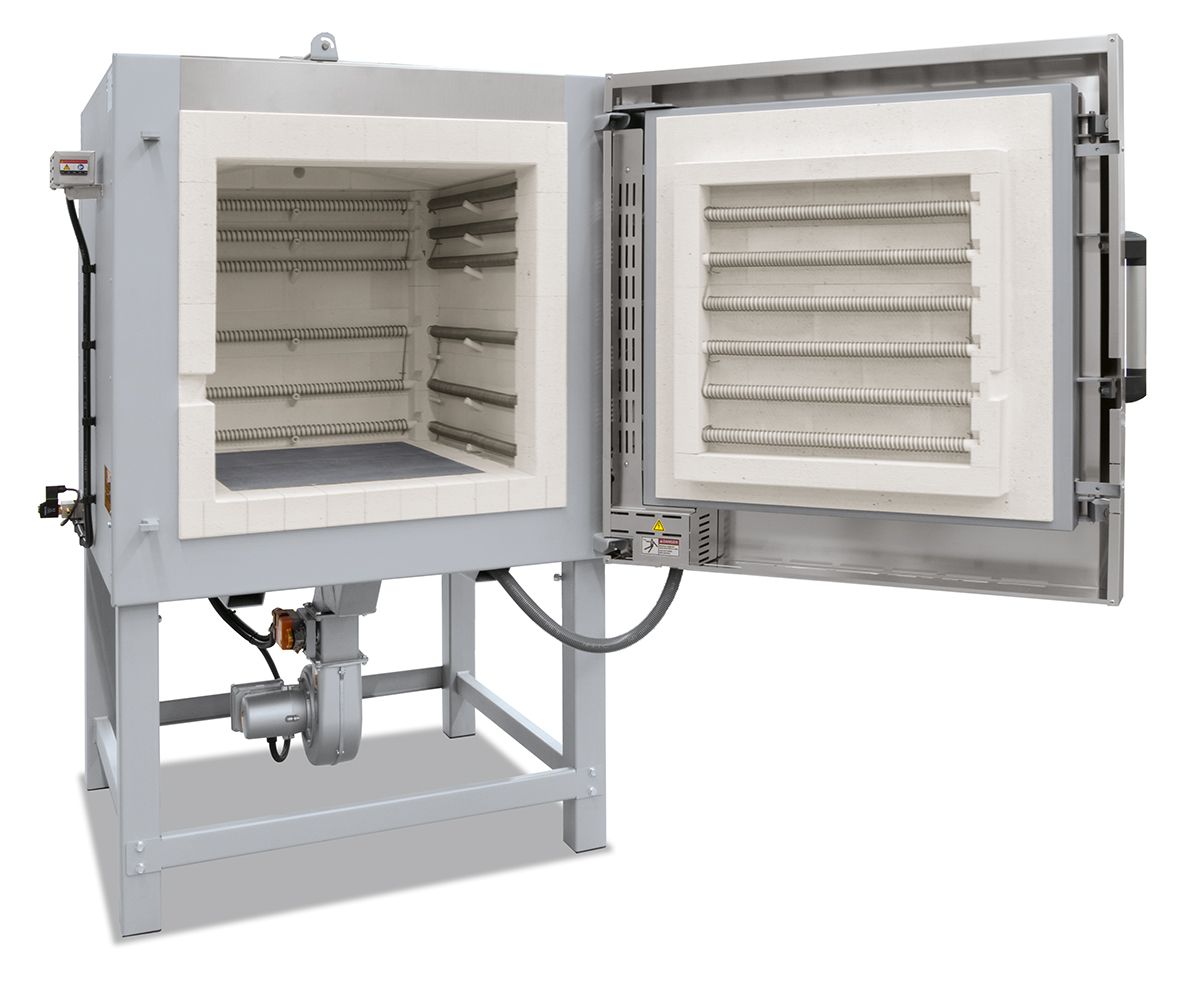

Nabertherm LH 216/12/B500 chamber furnace with brick insulation, Tmax 1200°C, #LH2122NKNE
Nabertherm LH 216/12/B500 chamber furnace with refractory insulation, Tmax 1200°C, #LH2122NKNE Technical data: Model: LH216/12 Max. temperature: 1200°C Internal dimensions: 600mm x 600mm x 600mm (WxDxH) External dimensions: 990mm x 1280mm x 1590mm (WxDxH) Volume: 216L Max. Power consumption: 20 kW Electrical connection: 3-phase Weight: 470 kg Many other configurations and accessory options are available on request!
Nabertherm LT5/12/B510 Tmax1200 muffle furnace with lift-up door, #L-055H2ANL
Nabertherm LT5/12/B510 Tmax1200 muffle furnace with lift-up door, #L-055H2ANL Technical specifications: Model: L(T) 5/12 Max. temperature: 1200°C Internal dimensions: 205 mm x 170 mm x 130 mm (WxDxH) External dimensions: 385 mm x 390 mm x 460+205 mm (WxDxH) --> Including open lift-up door (LT models) Volume: 5 L Max. Power consumption: 2.6 kW Electrical connection: single-phase Weight: 27 kg Heating time: 59 minutes Many more configurations and accessory options are available on request!

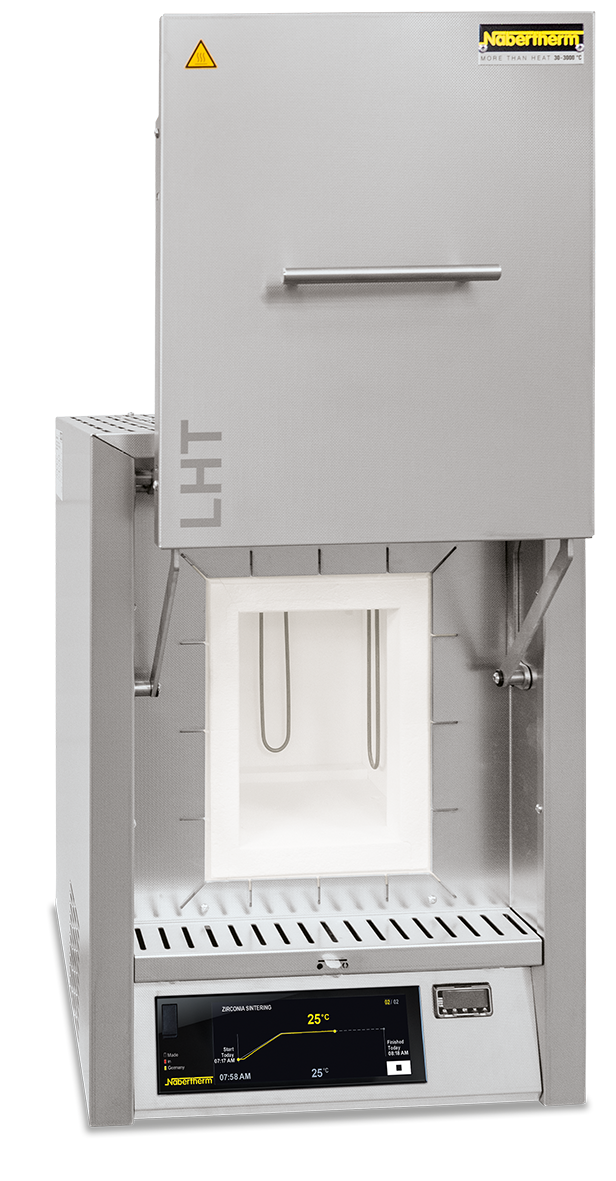

Nabertherm LHT 03/17 D/P580 high-temperature furnace, MoSi₂ heating elements, Tmax 1750°C, #LHT327WN1
Nabertherm LHT 03/17 D/P580 high-temperature furnace, MoSi₂ heating elements, Tmax 1750°C, #LHT327WN1 Technical specifications: Model: LHT 03/17 D Max. temperature: 1650°C Internal dimensions: 135mm x 135mm x 200mm (WxDxH) External dimensions: 412 mm x 450 mm x 595+300 mm (WxDxH) --> including open lift door Volume: 4 L Max. connected load: 2.7 kW Electrical connection: single-phase Weight: 38 kg Heating time: 57 minutes Many more configurations and accessory options are available on request!

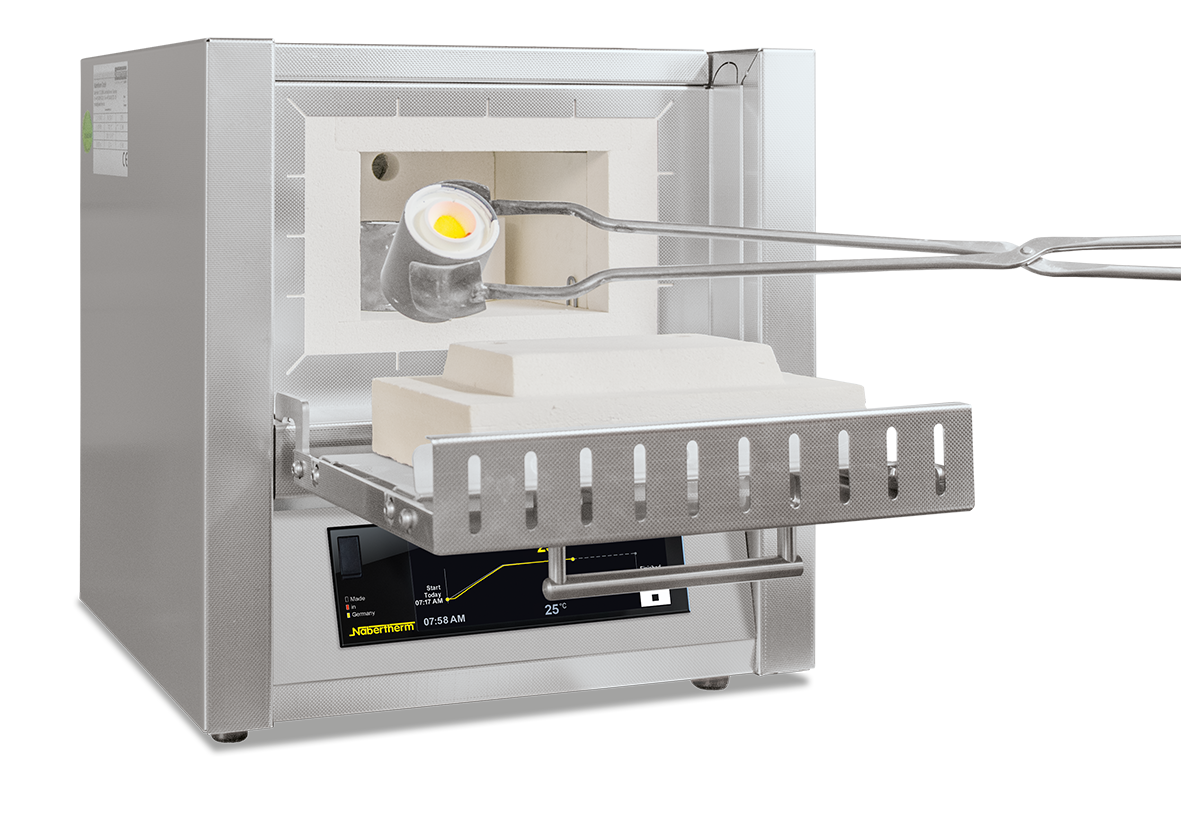

Nabertherm Muffle Furnace L 3/11, Tmax 1100 °C, 3 l capacity, hinged door, L-035K1ANL
The Nabertherm L 3/11 muffle furnace is a compact and powerful laboratory furnace for precise heat treatment up to 1100 °C. With a furnace volume of 3 litres, it is ideally suited for everyday use in research, industry and laboratories. The high-quality hinged door also serves as a practical work surface, whilst the heat-up time of just 41 minutes enables rapid results. Thanks to its solid insulation and robust construction, the furnace offers a long service life and maximum temperature stability. Technical specifications: Max. temperature: 1100 °C Internal dimensions (W × D × H): 160 × 140 × 100 mm External dimensions (W × D × H): 385 × 330 × 405 mm Volume: 3 l Power consumption: 1.3 kW Electrical connection: single-phase Weight: 21 kg Heating time to 1100 °C: approx. 41 min Accessories and optional extras (e.g. exhaust air systems, protective tubes, thermocouples) are available on request.
Nabertherm LF 30/14/B500 chamber furnace with fibre insulation, Tmax 1400°C, #LF0342NKNE
Nabertherm LF 30/14/B500 chamber furnace with fibre insulation, Tmax 1400°C, #LF0342NKNE Technical data: Model: LF30/14 Max. temperature: 1400°C Internal dimensions: 320mm x 320mm x 320mm (WxDxH) External dimensions: 710mm x 930mm x 1290mm (WxDxH) Volume: 30L Max. Power consumption: 10 kW Electrical connection: 3-phase Weight: 180 kg Many other configurations and accessory options are available on request!

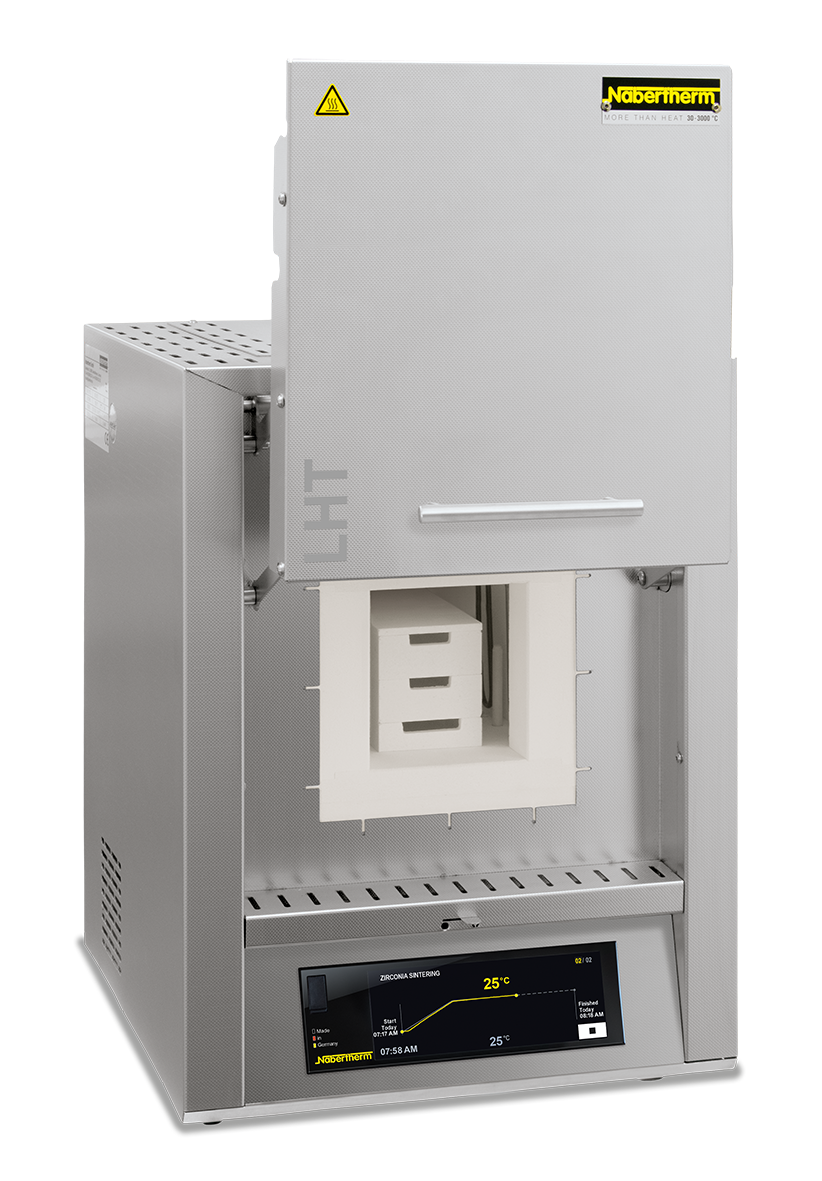

Nabertherm LHT 01/17 D/P580 high-temperature furnace, MoSi₂ heating elements, Tmax 1750°C, #LHT127WN2
Nabertherm LHT 01/17 D/P580 high-temperature furnace, MoSi₂ heating elements, Tmax 1750°C, #LHT127WN2 Technical specifications: Model: LHT 01/17 D Max. Temperature: 1650°C Internal dimensions: 110mm x 120mm x 120mm (WxDxH) External dimensions: 385mm x 425mm x 525+195mm (WxDxH) --> including open lift door Volume: 1L Max. Power consumption: 2.7 kW Electrical connection: single-phase Weight: 28 kg Heating time: 27 minutes Many more configurations and accessory options are available on request!
Nabertherm LT9/14/B510 Tmax1400 muffle furnace with lift-up door, #L-095H4AL
Nabertherm LT9/14/B510 Tmax1400 muffle furnace with lift-up door, #L-095H4AL Technical specifications: Model: L9/14 Max. Temperature: 1400°C Internal dimensions: 250mm x 250mm x 170mm (WxDxH) External dimensions: 530mm x 525mm x 630+350mm (WxDxH) --> Including open lift-up door Volume: 9L Max. Power consumption: 3.5 kW Electrical connection: single-phase Weight: 55 kg Heating time: 50 minutes Many more configurations and accessory options are available on request!
Nabertherm L 9/12 muffle furnace (1200°C, B510 controller), L 9/12 B510
The Nabertherm L 9/12 muffle furnace is the tried-and-tested standard for demanding day-to-day use in the laboratory. With a 9-litre working chamber and a maximum temperature of 1200 °C, it is the ideal piece of equipment for a wide range of thermal processes, such as the ashing of samples, the annealing of workpieces or hardening processes in materials testing. Durable construction and high efficiency At the heart of the furnace are the ceramic heating plates, which are heated on both sides. This design (feature) ensures excellent temperature distribution within the furnace chamber and is extremely durable and resistant to aggressive vapours (benefit). The robust, double-walled housing made of structured stainless steel sheet (feature) significantly reduces the external temperature, which improves workplace safety and reduces energy consumption (benefit). Intuitive control with the B510 controller This model is equipped with the Nabertherm B510 controller. This digital controller is ideal for procurement specialists who require a reliable and easy-to-use controller without complex programming functions. It allows precise setting of the target temperature and displays the actual temperature digitally. Practical hinged-door design The L-Series with a hinged door (as opposed to a lift-up door) is particularly popular with laboratory technicians. (Feature) The open, heat-resistant door can be used as a stable surface for loading the furnace or for the rapid cooling of samples (Benefit). Many further configurations and accessory options are available on request! Technical details Max. temperature (Tmax): 1200 °C Volume: 9 litres Internal dimensions (W x D x H): 220 x 250 x 170 mm External dimensions (W x D x H): 440 x 570 x 570 mm Heating: On both sides (ceramic heating plates) Controller: Nabertherm B510 Power consumption: 2.9 kW Electrical connection: 230 V (single-phase, Schuko plug) Weight: 35 kg Scope of delivery Nabertherm L 9/12 B510 muffle furnace (basic unit) B510 controller (integrated) Mains cable with Schuko plug User manual Important note: Insert plates/base bricks are accessories and are not included as standard.
Nabertherm Muffle Furnace L 5/12, Tmax 1200 °C, 5 l capacity, hinged door, L-055K2AL
The Nabertherm L 5/12 muffle furnace is a versatile and robust laboratory furnace for precise heat treatment up to 1200 °C. With a working volume of 5 litres, it is ideally suited for applications in research, industry, quality assurance and training. The practical hinged door can be used as a work surface and makes it easier to load samples. Thanks to its uniform temperature distribution and efficient insulation, the L 5/12 ensures stable process control whilst minimising energy consumption. The furnace is equipped with the modern B510 control unit, which enables simple operation and precise temperature control. Accessories such as exhaust systems, protective tubes or alternative control units are available as options. Technical data: Max. temperature: 1200 °C Internal dimensions (W × D × H): 200 × 170 × 130 mm External dimensions (W × D × H): 455 × 410 × 490 mm Chamber capacity: 5 l Power consumption: 2.4 kW Electrical connection: single-phase Weight: 30 kg Heating time to 1200 °C: approx. 60 min

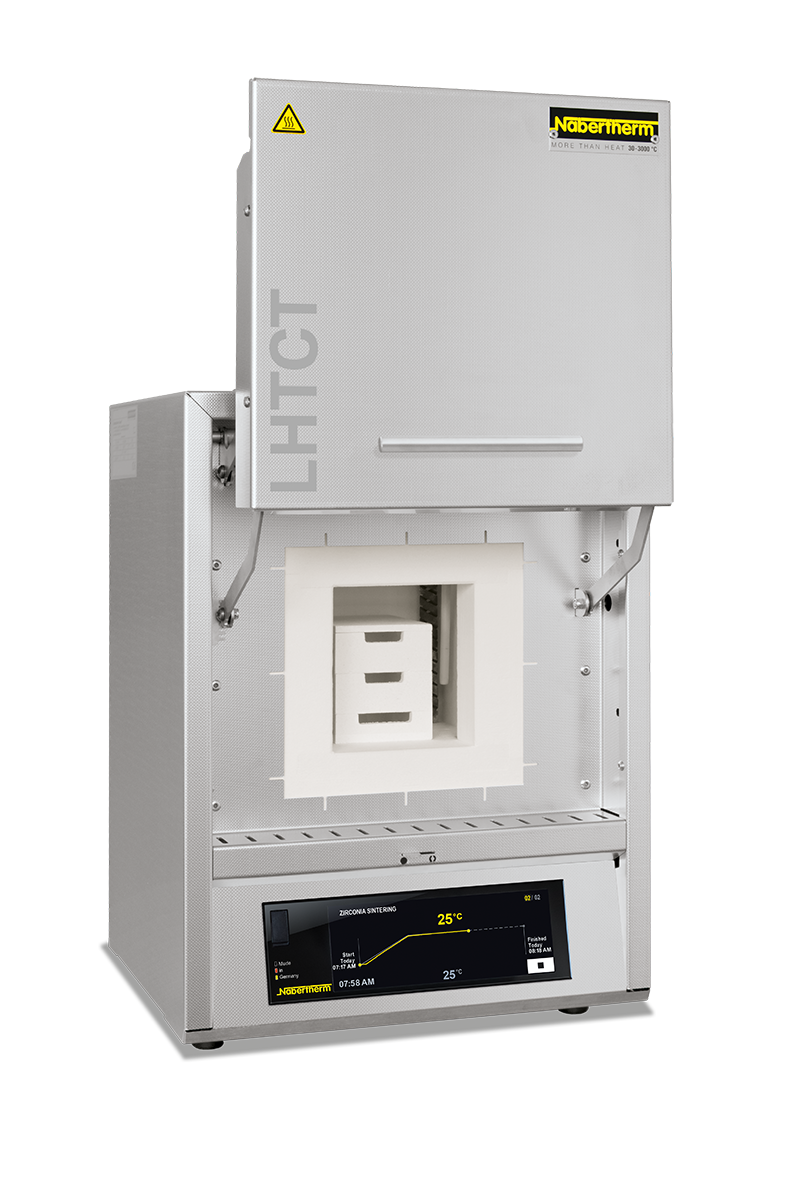

Nabertherm high-temperature furnace LHTCT 01/16/C550, SiC heating elements, Tmax 1550°C, #LC014H6ON1
Nabertherm LHTCT 01/16/C550 high-temperature furnace, SiC heating, Tmax 1550°C, #LC014H6ON1 Technical data: Model: LHTCT 01/16 Max. temperature: 1550°C Internal dimensions: 110mm x 120mm x 120mm (WxDxH) External dimensions: 340mm x 335mm x 385mm (WxDxH) Volume: 1.5L Max. Power consumption: 3.5 kW Electrical connection: single-phase Weight: 20 kg Heating time: 30 minutes Many more configurations and accessory options are available on request!

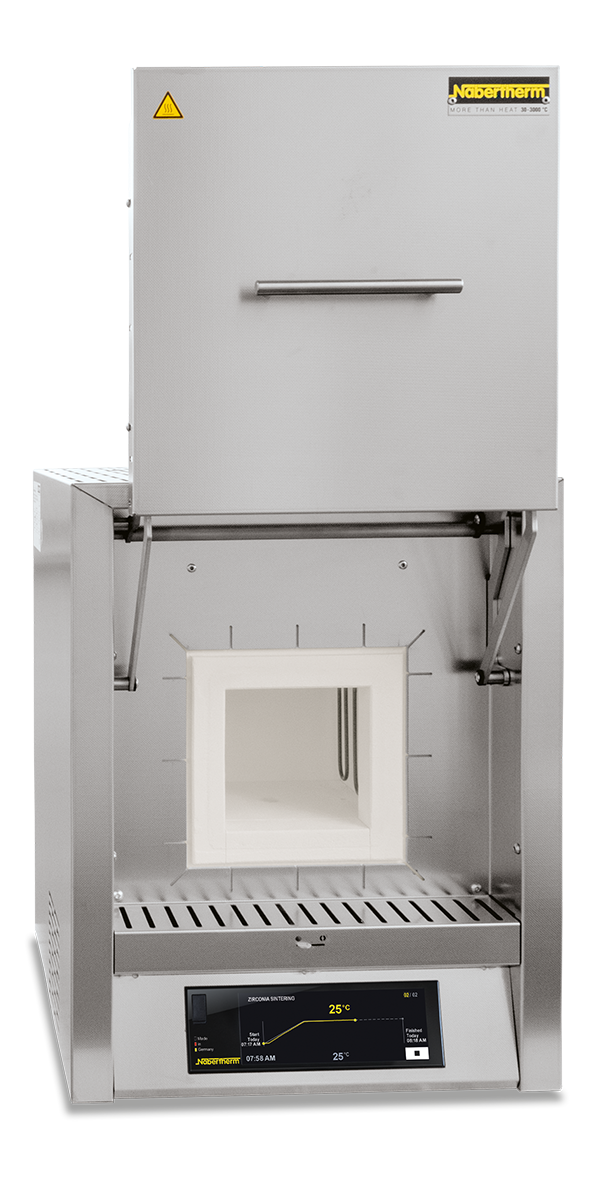

Nabertherm LHT 02/17/P580 high-temperature furnace, high-temperature furnace, MoSi₂ heating elements, Tmax 1700°C, #LHT237WN1
Nabertherm LHT 02/17/P580 high-temperature furnace, high-temperature furnace, MoSi₂ heating, Tmax 1700°C, LHT237WN1 Technical specifications: Model: LHT 02/17 Max. temperature: 1750°C Internal dimensions: 130mm x 145mm x 130mm (WxDxH) External dimensions: 430 mm x 450 mm x 570+325 mm (WxDxH) --> including open lift door Volume: 2 L Max. connected load: 2.7 kW Electrical connection: single-phase Weight: 33 kg Heating time: 46 minutes Many more configurations and accessory options are available on request!

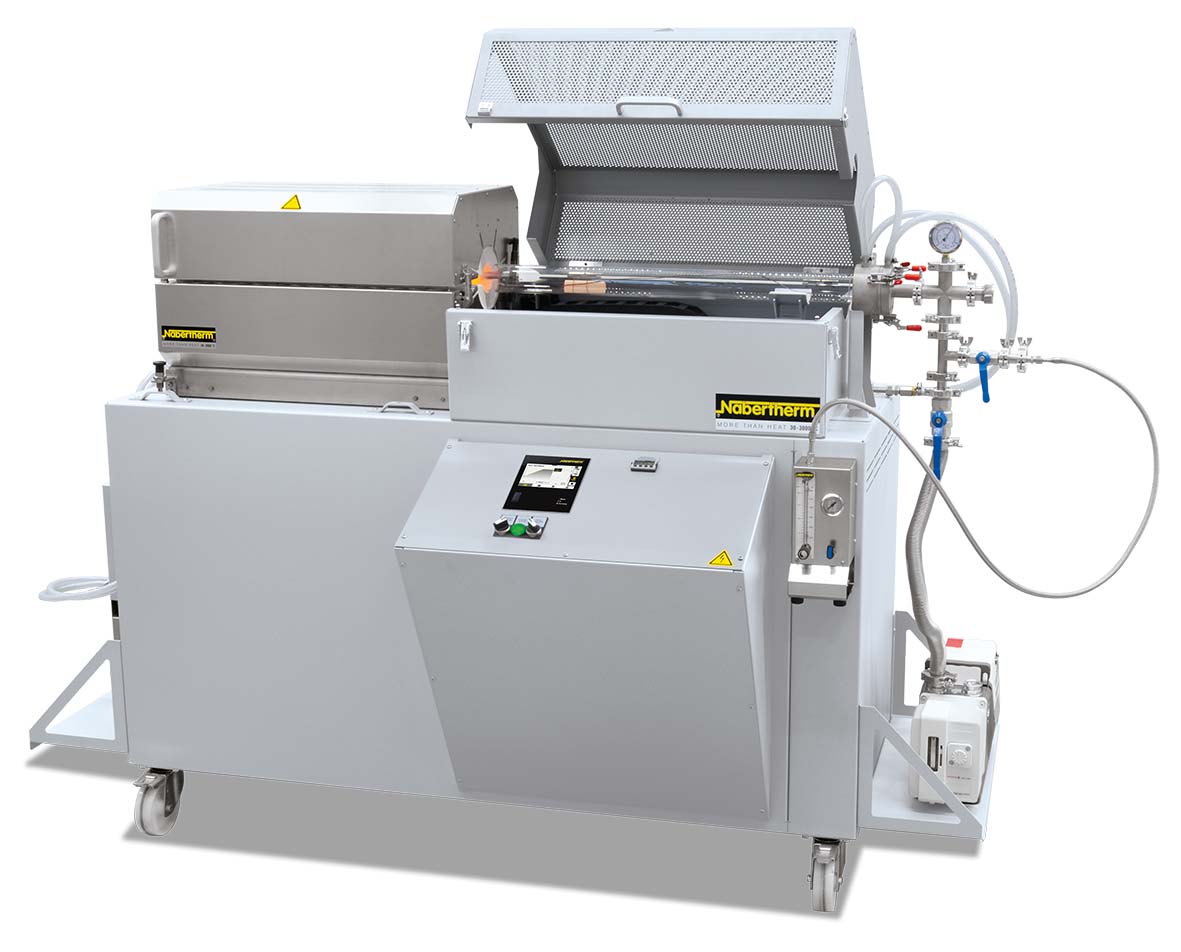

Nabertherm RSH 120/500/11/B510 hinged tube furnace, Tmax 1100°C, #RS33O1B
Nabertherm RSH 120/500/11/B510 hinged tube furnace, Tmax 1100°C, #RS33O1B Technical data: Model: RSH 120/500/11 Max. temperature: 1100°C (measured outside the tube; difference from the temperature inside the tube up to +50K ) External dimensions: 670mm x 450mm x 580mm (WxDxH) --> width excluding tube; External dimensions vary for versions with additional equipment. Dimensions available on request. Max. external tube diameter: 120 mm Heated length: 500 mm Length at constant temperature ± 5 K: 170 mm (single-zone) or 250 mm (three-zone) Tube length: 850 mm Max. Connected load: 6.6 kW Electrical connection: 3-phase (a neutral conductor is required for the three-zone version (3/N/PE)) Weight: 46 kg Many other configurations and accessory options are available on request!
Nabertherm LH 30/14/B500 chamber furnace with brick insulation, Tmax 1400°C, #LH0342NKNE
Nabertherm LH 30/14/B500 chamber furnace with refractory insulation, Tmax 1400°C, #LH0342NKNE Technical data: Model: LH30/14 Max. temperature: 1400°C Internal dimensions: 320mm x 320mm x 320mm (WxDxH) External dimensions: 710mm x 930mm x 1290mm (WxDxH) Volume: 30L Max. Power consumption: 10 kW Electrical connection: 3-phase Weight: 200 kg Many more configurations and accessory options are available on request!

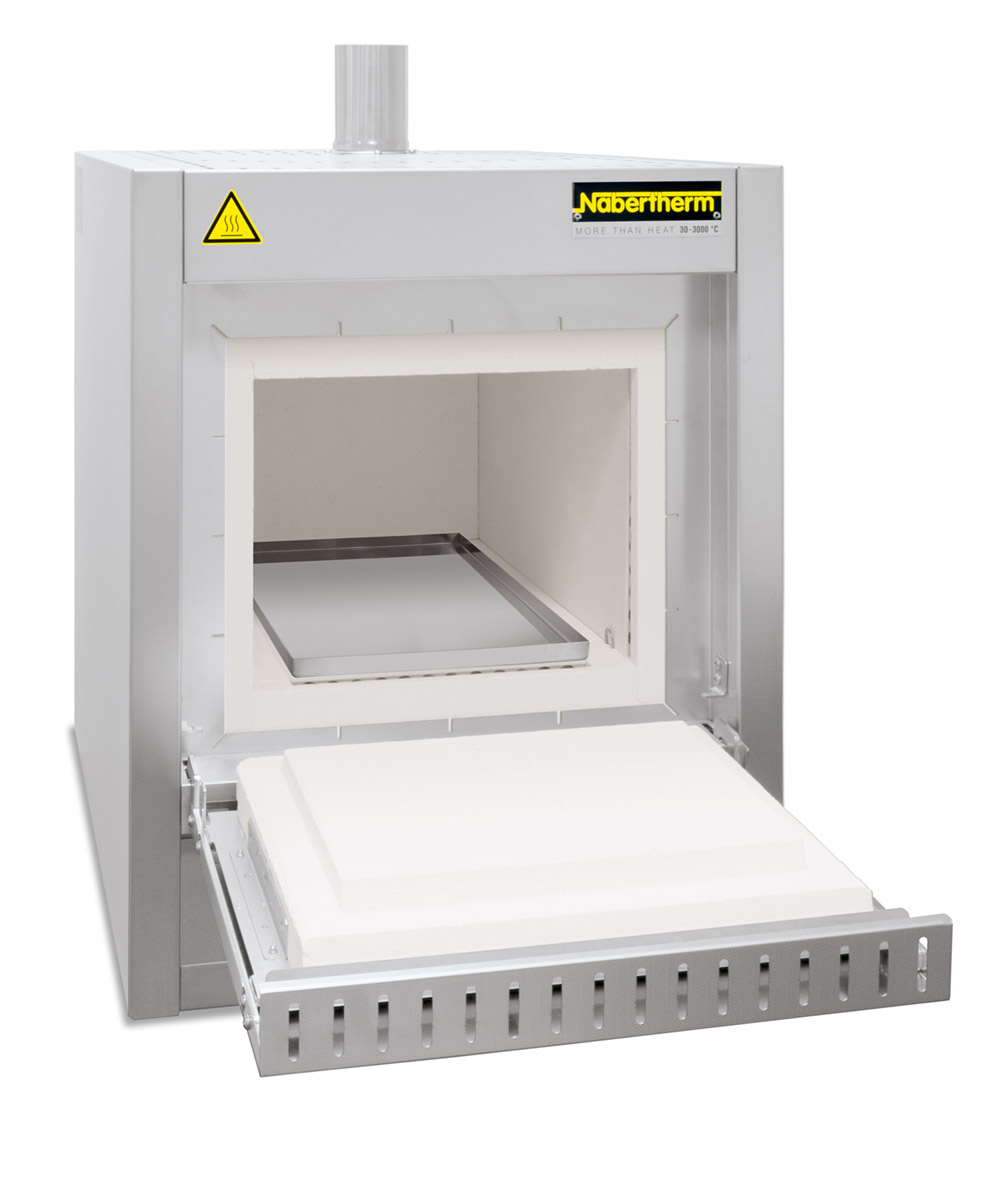

Nabertherm L40/11/B510 Tmax1100 muffle furnace with hinged door, #L-405K1DL
Nabertherm L40/11/B510 Tmax1100 muffle furnace with hinged door, #L-405K1DL Technical specifications: Model: L40/11 Max. temperature: 1100°C Internal dimensions: 390mm x 420mm x 350mm (WxDxH) External dimensions: 530mm x 705mm x 580mm (WxDxH) Volume: 40L Max. Power consumption: 6.5 kW Electrical connection: single-phase Weight: 70 kg Heating time: 80 minutes Many more configurations and accessory options are available on request!
Nabertherm L 9/11 muffle furnace, Tmax 1100 °C, 9 l capacity, hinged door, L-095K1AL
The Nabertherm L 9/11 is a compact and precise laboratory muffle furnace for heat treatment up to 1100 °C. With a working volume of 9 litres, it is ideally suited for applications in research, industry, quality assurance and training. The hinged door serves as a practical storage surface and allows for convenient loading and unloading. Thanks to its uniform temperature distribution, high-quality insulation and robust construction, the L 9/11 offers impressive durability and energy efficiency. The furnace is fitted with the B510 control unit, which enables precise temperature control. It can be optionally upgraded with accessories such as exhaust air systems, thermocouples or alternative control units. Technical specifications: Max. temperature: 1100 °C Internal dimensions (W × D × H): 235 × 240 × 170 mm External dimensions (W × D × H): 415 × 455 × 515 mm (+240 mm including protruding parts) Internal capacity: 9 l Power consumption: 3.3 kW Electrical connection: single-phase Weight: 35 kg Heating time to 1100 °C: approx. 63 min
Nabertherm RHTV 50/150/17/P570 Vertical High-Temperature Furnace, Tmax 1700°C, #RV152V72AN
Nabertherm RHTV 50/150/17/P570 Vertical High-Temperature Furnace, Tmax 1700°C, #RV152V72AN Technical data: Model: RHTV 50/150/17 Max. temperature: 1700°C (Specified outside the tube. Difference from the temperature inside the tube up to +50 K ) External dimensions: 610 mm x 700 mm x 1130 mm (WxDxH) --> Height excluding tube; external dimensions vary for versions with additional equipment. Dimensions available on request. Max. external tube diameter: 50 mm Heated length: 150 mm Length at constant temperature ± 5 K: 30 mm Tube length: 380 mm Max. connected load: 5.8 kW Electrical connection: 3-phase (heating between two phases only) Weight: 70 kg Many other configurations and accessory options are available on request!
