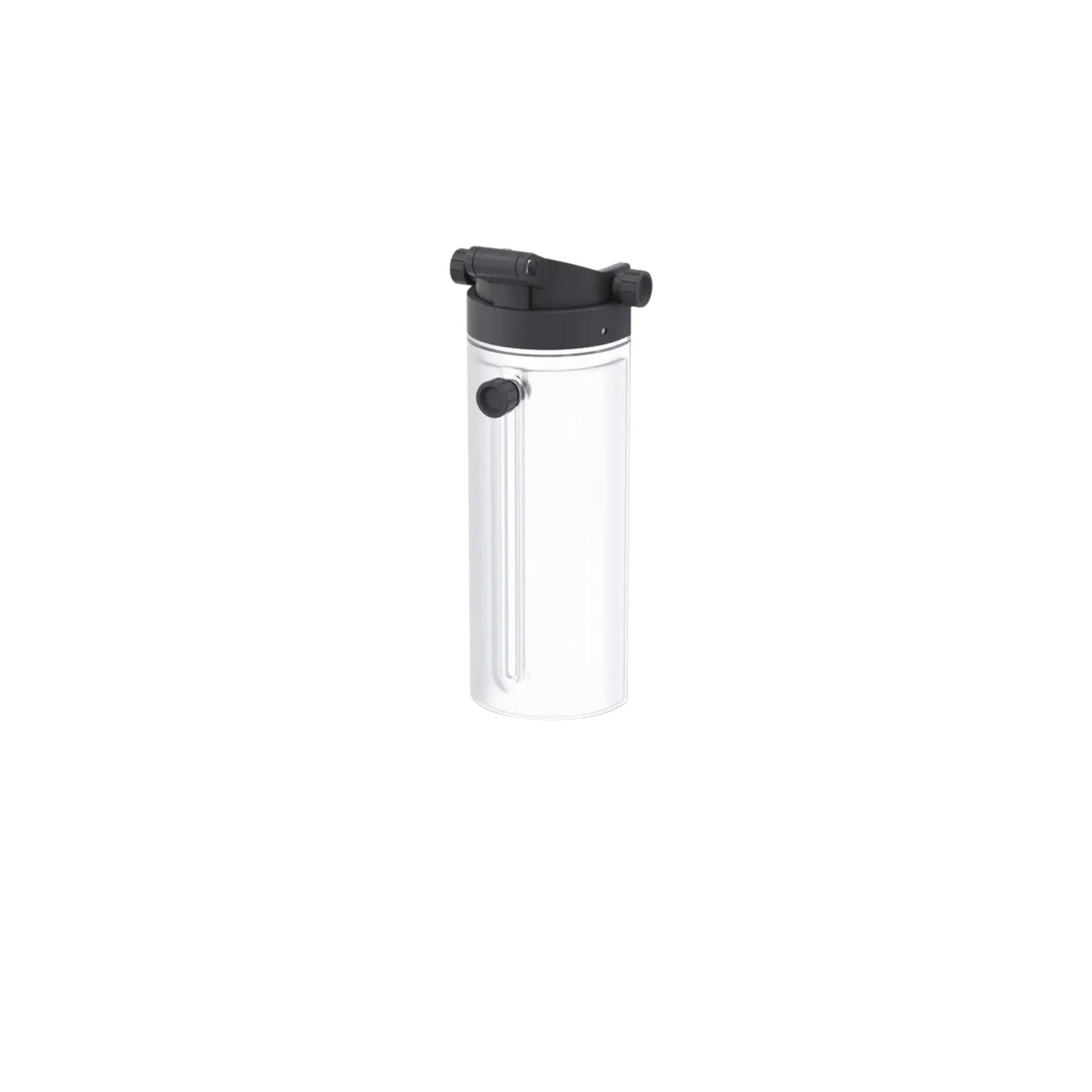

IKA R 401 Agitator shaft guard with hinge for overhead agitators, 0020122349

The IKA R 401 stirring shaft guard with hinge (MPN 0020122349) is an essential mechanical safety component for the safe and accident-free operation of overhead stirrers in the laboratory. During intensive mixing and homogenisation of viscous media, high kinetic forces act on the rotating stirring shafts. This professional shaft guard reliably protects laboratory staff from accidental contact with the rotating parts, effectively preventing clothing, hair or gloves from being drawn in. The guard is therefore a fundamental element in risk assessments and compliance with strict health and safety and accident prevention regulations (UVV).

Ergonomic access thanks to an integrated hinge mechanism

The design highlight of the R 401 model is its integrated, smooth-running hinge system. Unlike rigid protective covers, this hinged system architecture allows quick, unobstructed access to the drill chuck and the stirrer tool in use. Laboratory staff can carry out tool changes, adjustments to the immersion depth or cleaning tasks in a way that protects the material, without the need for time-consuming dismantling of the entire guard. This ensures a smooth workflow with high time efficiency in daily multi-user operation.

Material stability and unrestricted process visibility

The protective screen is made from a highly transparent, impact-resistant and specialised plastic material. This choice of material guarantees uncompromising chemical resistance to transient splashes of acids, alkalis or organic solvents. The material’s excellent optical clarity ensures that visual monitoring of the stirring process, transient flow patterns or any delays in boiling within the sample vessel remains completely unrestricted and error-free at all times.

Technical details

Design & Material

• Product group: Laboratory accessories / Health and safety (Accessory)
• Protection principle: Mechanical barrier against rotating components
• Special feature: Integrated hinged flap for quick access to tools
• Protective screen material: Highly transparent, impact-resistant and chemical-resistant plastic
• Visibility: Unrestricted visual monitoring of the material being stirred

Compatibility & Installation

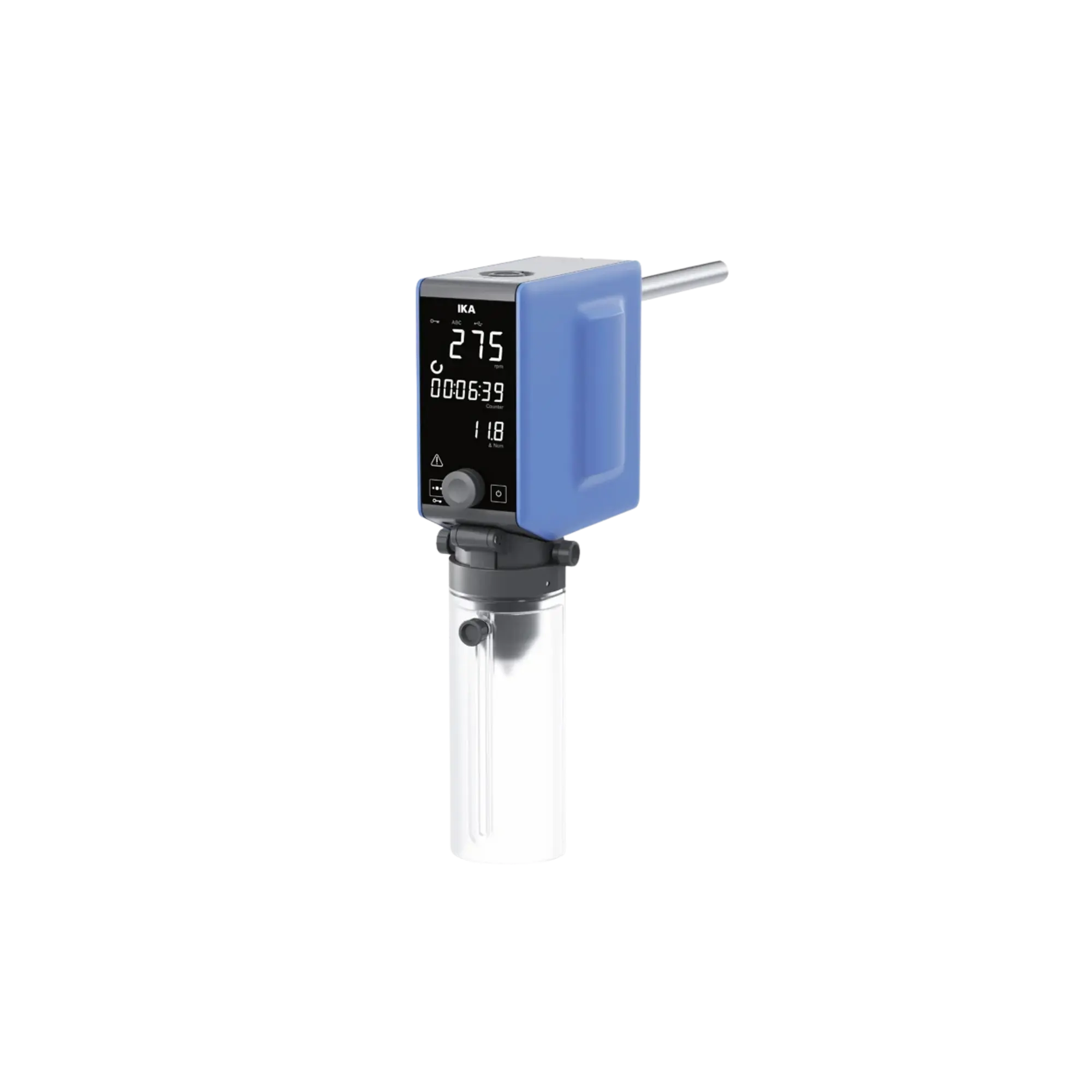

• System compatibility: Universally compatible with IKA EUROSTAR basic and control overhead stirrers
• Mounting method: Stable, vibration-free mounting directly onto the stand frame or the equipment mount
• Height adjustability: Flexibly adaptable to the respective vessel geometry and shaft length

Contents of delivery

• 1 x IKA R 401 stirrer shaft guard with hinge (MPN: 0020122349)
• 1 x Complete set of fitting materials, including fasteners
• 1 x Quick guide / Safety guide for accident prevention

Individual requirements & accessories

To ensure a fully compliant and safe mixing workstation, we stock the complete range of original IKA system peripherals:

• Overhead stirrers: Optimised for the high-performance powerhouses of the IKA EUROSTAR 20, 40, 60, 100 or 200 series (both basic and control models).
• Stands & Sockets: Extremely stable IKA telescopic stands (e.g. R 2723 or R 2722) and robust cross-sockets (e.g. R 270) for vibration-free securing of the entire experimental setup.
• Stirring tools: A wide-ranging B2B range of PTFE-coated and stainless steel stirring elements, such as propeller stirrers, anchor stirrers, paddle stirrers and dissolver discs. Make use of our technical procurement service to ensure the reliable design of your laboratory set-ups.
