Heidolph
Heidolph Hei-PLATE Mix 20l Magnetic Stirrer, up to 20 Litres, without Heating, 506-54100-00
If a batch requires more volume than a standard hotplate can accommodate, but at the same time does not require a heat source directly beneath the vessel, the Hei-PLATE Mix 20 l provides exactly this combination: stirring of up to 20 l without any heating function; according to the manufacturer, even the heat from the motor is not transferred to the work surface. The chassis is identical in construction to the Hei-PLATE Mix'n'Heat Core, but without the heating module, and covers a speed range from 100 to 1,400 revolutions per minute.No heat input for heat-sensitive substancesFor substances that are sensitive to heat, any additional source of temperature poses a risk, even the waste heat from a motor. The Hei-PLATE Mix 20 l is therefore deliberately designed without a heating function, ensuring that the base remains cool. A soft-start function gently brings the speed up to the set value, ensuring that the sample does not splash at start-up and the stir bar does not veer off course.Large Kera-Disk platform for 20 lThe 145-millimetre-diameter Kera-Disk platform, made of aluminium with a ceramic coating, is chemical-resistant and scratch-resistant, and can support samples weighing up to 25 kilograms. With a power consumption of just 25 watts in normal operation, energy usage remains low for a unit with this stirring capacity; in standby mode, it drops to 1.7 watts. The external dimensions of 168 x 101 x 299 millimetres are consistent with the rest of the Hei-PLATE range, meaning the unit can be integrated into existing workstations without any modifications.Typical applicationsStirring of large-volume batches up to 20 l without heat inputProcessing of heat-labile active ingredients and dyesPreparation of larger volumes of buffers and reagents in routine laboratory workApplications where even minimal motor heat would interfere with the sampleSupplementing a Hei-PLATE workstation with a second, non-heated unitElectrical protection and environmental conditionsDegree of protection IP42 protects against foreign bodies larger than 1 mm and against obliquely falling dripping water; the sound pressure level is below 50 dB(A). The unit operates at 230 volts at 50 or 60 hertz in Europe and 115 volts in the USA, in each case via a connection with L, N and a protective earth conductor. The permissible operating range is from 5 to 31 °C at up to 80 % relative humidity; above this, the permissible humidity decreases linearly down to 40 °C.Selection guide: smaller volume or with heatingIf 5 litres of stirring volume is sufficient, the more compact Hei-Mix S is the smaller and simpler alternative. If a heating plate is required, the identically constructed chassis with a heating module, as the Hei-PLATE Mix'n'Heat Core, delivers temperatures up to 300 °C; with additional digital Pt1000 control, it is available as the Hei-PLATE Mix'n'Heat Core+.Technical detailsDimensions (W x H x D)168 x 101 x 299 mmFootprint (Kera-Disk)Ø 145 mm, aluminium, ceramic-coatedWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmDegree of protection (EN 60529)IP42Sound pressure level< 50 dB(A)Rated voltage230 V, 50/60 Hz (EU); 115 V, 50/60 Hz (US)Connection typeL+N+PEProtection classIOvervoltage categoryIIPollution degree2Power consumption25 W in normal operation, 1.7 W on standbyEMC classB, Group 1Operating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 m above sea levelScope of deliveryHei-PLATE Mix 20 l, order number 506-54100-00The silicone cover for the Hei-PLATE Mix 20 l is not included in the scope of delivery and must be ordered separately.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport, and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. For this model in the Hei-PLATE series, Heidolph offers a 10-year warranty provided the instrument is registered with Heidolph within the first year of purchase. Our procurement service can, if required, source the appropriate silicone cover and other accessories for larger stirring volumes.
Heidolph Hei-PLATE Sensor Basic Package Core+ Magnetic Stirrer Set, Ø145 mm, with Pt1000 Probe, 506-21150-00
A digital display on the hotplate and an external temperature probe in the vessel are, for many laboratories, the first step towards traceable temperature control. The Sensor Basic Package Core+ combines the Hei-PLATE Mix'n'Heat Core+ digital magnetic stirrer, with a footprint of 145 millimetres, with an external Pt1000 temperature probe, whilst remaining a basic configuration without a mounting bracket or silicone cover.LCD display and two heating modesThe Hei-PLATE Mix'n'Heat Core+ included in the pack displays speed and temperature on an LCD screen; the dynamic control knobs respond to the speed of hand movement, slow for fine adjustment, fast for larger increments. There are two heating modes to choose from: FAST for rapid heating and PRECISE for control without overshoot. The included Pt1000 temperature probe (V4A, order number 509-67910-00) measures the temperature directly within the medium rather than just on the heating plate, with an accuracy of ±0.2 Kelvin plus the tolerance of the Pt1000 sensor and a resolution of 1 Kelvin. In conjunction with the probe, the magnetic stirrer covers a display and measurement range from 15 to 325 °C.Why the temperature in the medium mattersWithout an external probe, a heating plate only controls the temperature of its own surface, not that of the liquid in the vessel. For buffers, solutions or reaction mixtures with a defined target temperature, this makes a difference, particularly when the volume or shape of the vessel changes. The Pt1000 probe is immersed in the medium and provides the control system with the actual value. This allows the set temperature to be reproduced independently of the vessel.Typical applicationsBuffer and solution preparations with a fixed target temperature in the vesselReaction mixtures where the temperature is to be monitored directly inside the flaskFirst steps towards documented temperature control without additional accessoriesUpgrading an existing Core+ magnetic stirrer with an external sensorSelection guide: Basic or AdvancedIf you wish to secure the sensor permanently and protect the work surface between uses, you’ll find the right equipment in the Sensor Advanced Package Core+, which includes an additional mount and silicone cover. For reflux set-ups with a condenser, there are the dedicated Core+ and Core+ Mini reflux packages. If you do not require an LCD display and are happy with the simpler rotary knob operation, the Sensor Advanced Package Core offers the analogue alternative.Technical detailsDimensions (W x H x D)168 x 101 x 299 mmHeating plate footprintØ 145 mmWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmHeating power800 W at 230 V (EU), 600 W at 115 V (US)Heating temperature range20 to 300 °CHeating controlPIDDisplayLCD displayTemperature measurement accuracy±0.2 K plus Pt1000 toleranceTemperature measurement resolution1 KDisplay and measurement range with Pt100015 to 325 °CDegree of protection (EN 60529)IP42Sound pressure levelless than 50 dB(A)Rated voltage230 V, 50/60 Hz (EU), 115 V, 50/60 Hz (US)Power consumptionNormal operation 825 W (EU) / 625 W (US), standby 1.7 WScope of deliveryHei-PLATE Mix'n'Heat Core+ magnetic stirrer, 145 mm base area, order number 506-21100-00Pt1000 temperature sensor (V4A), order number 509-67910-00The mounting bracket and silicone cover are not included with this order number; they are part of the more comprehensive Sensor Advanced package.Regulatory informationThe devices in this package are electrical appliances within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass parts and wear parts, damage caused during transport, and damage resulting from improper use. If the appliance is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Heidolph offers a 10-year warranty on the Hei-PLATE series magnetic stirrer included in the pack, provided the instrument is registered with Heidolph within the first year of purchase. This extended warranty does not apply to the temperature probe, which is sold as an accessory. Our procurement service can supply a mounting bracket, silicone cover or other accessories for the Core+ magnetic stirrer as required.
Heidolph Hei-PLATE Mix'n'Heat Core+ magnetic stirrer, Ø135 mm, Pt1000 connection, 506-22100-00
If you need a slightly smaller hotplate for a reflux setup with a compact flask or for a space-saving multi-unit arrangement, the Hei-PLATE Mix’n’Heat Core+ in the 135-millimetre version offers the same digital functionality as the 145-millimetre variant, but with a more compact Kera-Disk footprint. The LCD display, dynamic rotary controls and the optional external Pt1000 sensor are identical; it heats up to 300 °C at up to 1,400 revolutions per minute.Same technology, smaller footprintApart from the diameter of the base, this model is technically no different from the 145-millimetre version: the same housing with external dimensions of 168 x 101 x 299 millimetres, the same EC motor with a speed range of 100 to 1,400 revolutions per minute, and the same heating power of 800 watts at 230 volts (EU). Anyone wishing to set up several stirring stations side by side, or who works predominantly with smaller flasks and vessels, will benefit from the slightly smaller diameter of the 135-millimetre Kera-Disk, without compromising on speed or heating power.Two heating modes for different requirementsThe FAST heating mode brings the sample up to temperature quickly, whilst PRECISE then takes over for fine control without overshoot; both modes operate via the optional external Pt1000 sensor with an accuracy of ± 0.2 Kelvin and a resolution of 1 Kelvin. A lock function on the two dynamic rotary controls prevents accidental adjustment whilst tests are in progress; a visual residual heat warning lights up on the base when the temperature reaches 50 °C.Typical applicationsReflux set-ups with the Findenser Mini and a compact flaskSpace-saving multiple set-ups in smaller laboratories or fume hoodsSyntheses with a defined heating ramp using the FAST and PRECISE modesTraining laboratories with limited floor spaceExpansion of existing Core+ workstations with a second, more compact unitLoad capacity and protection ratingWeighing around 3 kilograms, the base can still carry batches of up to 25 kilograms. IP42 protection rating protects against foreign bodies larger than 1 mm and dripping water falling at an angle; the sound pressure level remains below 50 dB(A). The patented Kera-Disk coating made of anodised aluminium is chemical-resistant and scratch-resistant, regardless of the selected diameter.Selection guide: 135 or 145 millimetresIf a larger work surface is required for larger flasks or additional accessories, the Hei-PLATE Mix’n’Heat Core+ (Ø145) is the closer fit. Equipped directly with a Pt1000 sensor, the basic unit is available in the Hei-PLATE Sensor Basic Core+ package; for a complete reflux setup with the Findenser Mini, it is available in the Hei-PLATE Reflux Core+ Mini package. For those who do not require digital temperature measurement, the Hei-PLATE Mix'n'Heat Core offers analogue control.Technical detailsDimensions (W x H x D)168 x 101 x 299 mmFootprint (Kera-Disk)Ø 135 mm, anodised aluminiumWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmHeating power800 W at 230 V (EU), 600 W at 115 V (US)Heating temperature range20 to 300 °CHeating controlPIDTemperature measurement accuracy± 0.2 K, plus Pt1000 toleranceTemperature measurement resolution1 KDisplayLCD displayDisplay/measurement range15 to 325 °C (with Pt1000 temperature sensor)Degree of protection (EN 60529)IP42Sound pressure level< 50 dB(A)Rated voltage230 V, 50/60 Hz (EU); 115 V, 50/60 Hz (US)Connection typeL+N+PEProtection classIOvervoltage categoryIIPollution degree2Power consumption825 W (EU) / 625 W (US) in normal operation, 1.7 W on standbyEMC classB, Group 1Operating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 m above sea levelScope of deliveryHei-PLATE Mix'n'Heat Core+ (135 mm), order number 506-22100-00The external Pt1000 temperature sensor is not included in the scope of delivery for this item number and is ordered separately or as part of a sensor pack.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport, and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. For this model in the Hei-PLATE series, Heidolph offers a 10-year warranty provided the instrument is registered with Heidolph within the first year of purchase. Our procurement service puts together the suitable Pt1000 probe and accessories for compact reflux set-ups.
Heidolph Rotamax 120 Platform Shaker, Rotary Motion, 20 to 300 rpm, 544-41200-00
Not every shaking application requires the fine, high-frequency motion of the Titramax or Vibramax models. Instead, the Rotamax 120 moves the platform in a circular rotation with a large orbit of 20 millimetres and a comparatively low speed of 20 to 300 revolutions per minute; this is suitable for large-area, homogeneous mixing without the high frequencies of its vibrating sister models.Rotational rather than vibrating motionThe shaded-pole motor drives the platform in a circular rotation with an orbit of 20 millimetres, continuously adjustable between 20 and 300 revolutions per minute. This type of motion distributes samples over a wide area and evenly, unlike the circular vibrating motion of the Titramax and Vibramax, which have significantly smaller orbits of 1.5 to 3 millimetres. The timer can be set to limit runs to up to 120 minutes, with an audible signal at the end; for longer processes, the unit continues to run in continuous operation.Compact chassis with expandable accessoriesMeasuring 245 x 125 x 310 millimetres and weighing 5.5 kilograms, the Rotamax 120 shares its chassis with the Titramax 100 and the Vibramax 100. The working area of 220 x 220 millimetres accommodates samples weighing up to 2 kilograms; an optional attachment with clamping rollers, a tray with universal perforations and a clamp for 25-millilitre Erlenmeyer flasks extend the platform to accommodate larger or smaller vessels. With a power consumption of 33 watts, the sound pressure level remains below 50 dB(A); this is the highest power consumption among the three compact chassis models: the Titramax 100, Vibramax 100 and Rotamax 120.Environmental conditions for laboratory operationThe Rotamax 120 is designed for ambient temperatures of 5 to 31 °C at up to 80 % relative humidity; at higher temperatures up to 40 °C, the permissible humidity decreases linearly to 50 %. It is intended for installation at altitudes of up to 2,000 metres above sea level, as well as for overvoltage category II and pollution degree 2; the unit compensates for mains voltage fluctuations of up to 10 % without any loss of function.Typical applicationsLarge-area, homogeneous mixing of samplesShaking tests at lower speeds than with vibrating modelsUse with a clamping roller attachment for different container sizesLaboratory routines where a rotating rather than a vibrating motion is requiredDistinction within the 1000 seriesThose who require a circular vibrating motion for cell cultures or microtitre plates will find it in the Titramax 100 or the more powerful Titramax 101. The Vibramax 100 also utilises the compact chassis, but with a vibrating rather than a rotating orbit. Within the range, the Rotamax 120 remains the model for rotating, low-speed motion.Technical detailsDimensions (W x H x D)245 x 125 x 310 mmWeight5.5 kgMaximum permissible load2 kgDriveShaded-pole motorSpeed range20 to 300 rpmOrbit20 mmType of movementrotatingWorking area220 x 220 mmSpeed controlanalogueSound pressure level< 50 dB(A)Power consumption33 WUnit fuseM 1.25 A (230 V) or T 2.0 A (115 V)Permissible mains voltage fluctuations±10 %Overvoltage categoryIIPollution degree2Operating temperature5 °C to 31 °C at up to 80 % relative humidity, 32 °C to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 metres above sea levelOverheating protectionself-resettingScope of delivery1x Rotamax 120 platform shaker, order number 544-41200-00Mains cable for EU mains connectionThe clamping roller attachment, tray and clamps are accessories and are not included in the scope of delivery; they must be ordered separately if required.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, assemble a clamping roller attachment, tray and clamps suitable for the Rotamax 120.

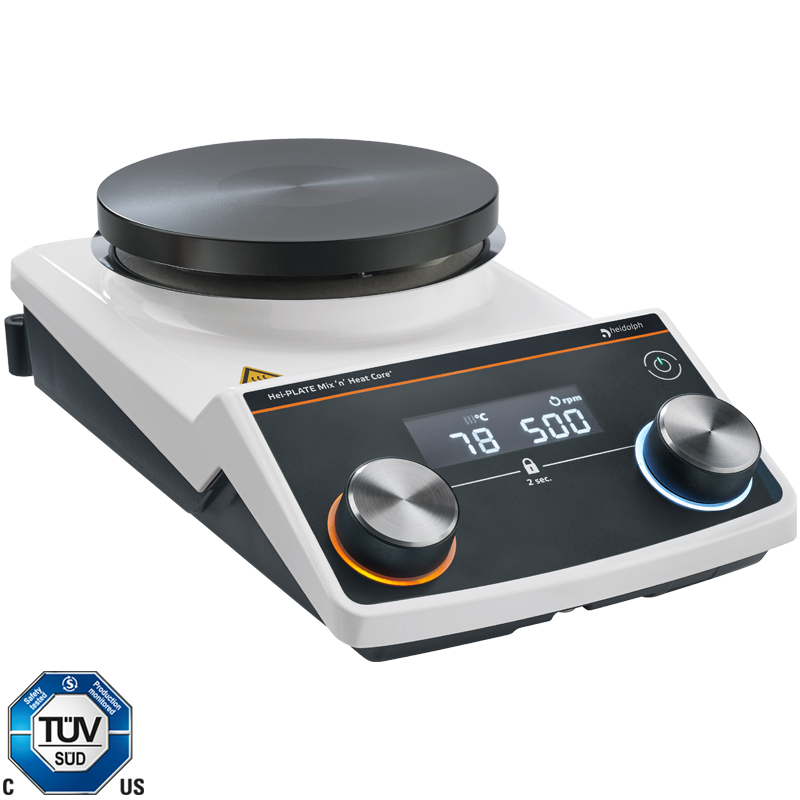

Heidolph Hei-PLATE Mix'n'Heat Core+ Magnetic Stirrer, Ø145 mm, Pt1000 Connection, 506-21100-00
For those who wish to monitor the temperature of the sample themselves, rather than simply setting the hotplate temperature, the Hei-PLATE Mix'n'Heat Core+ is the digital version of the Hei-PLATE range. An LCD display shows the speed and temperature, whilst an optional external Pt1000 temperature probe measures the temperature directly within the sample and uses this to regulate the heating plate. As with the Core model, the Kera-Disk platform has a diameter of 145 millimetres; it heats up to 300 °C at a speed of up to 1,400 revolutions per minute.Dynamic control knobs with locking functionTwo rotary controls adjust the speed and temperature and respond dynamically to the rotational speed: slow rotation for fine adjustment, fast rotation for larger increments. A lock function prevents accidental adjustment during operation, whilst button and dial illumination indicates which functions are active at all times. For test series that run unattended for extended periods, this safeguard against accidental adjustment is a practical advantage over the analogue-controlled Core model.Precise temperature control with Pt1000When an external Pt1000 probe is connected, the unit controls the sample temperature to an accuracy of ± 0.2 Kelvin, plus the probe tolerance, with a resolution of 1 Kelvin. There are two heating modes to choose from: FAST for rapid attainment of the setpoint temperature and PRECISE for control without overshoot. Without a connected probe, the LCD display shows the temperature of the heating plate; the display range then extends from 15 to 325 °C.Typical applicationsBoiling under reflux with documented sample temperatureSyntheses where temperature overshoot must be avoidedReproducible experimental series with consistent setpointsQuality assurance with traceable temperature measurement rather than just plate temperatureUpgrading existing Core workstations with digital sensor technologyDesign and load capacityThe external dimensions of 168 x 101 x 299 millimetres and a weight of around 3 kilograms are the same as the Core model, as is the maximum load of 25 kilograms on the base. Degree of protection IP42 and a sound pressure level below 50 dB(A) remain unchanged. The patented Kera-Disk coating made of anodised aluminium remains chemical-resistant and scratch-resistant, regardless of whether an external sensor is used or not.Selection guide: 145 or 135 millimetres, individually or as a packFor set-ups requiring slightly less space, the same unit is also available with a 135-millimetre footprint as the Hei-PLATE Mix'n'Heat Core+ (Ø135). If you wish to order the Pt1000 probe directly, you will find it in the Hei-PLATE Sensor Basic Package Core+ or, including a mount and silicone cover, in the Hei-PLATE Sensor Advanced Package Core+. For a complete reflux setup with a Heat-On flask attachment and Findenser condenser, the Hei-PLATE Reflux Package Core+ is available. Those who prefer simpler, analogue operation will find it in the Hei-PLATE Mix'n'Heat Core.Technical detailsDimensions (W x H x D)168 x 101 x 299 mmFootprint (Kera-Disk)Ø 145 mm, anodised aluminiumWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmHeating power800 W at 230 V (EU), 600 W at 115 V (US)Heating temperature range20 to 300 °CHeating controlPIDTemperature measurement accuracy± 0.2 K, plus Pt1000 toleranceTemperature measurement resolution1 KDisplayLCD displayDisplay/measurement range15 to 325 °C (with Pt1000 temperature sensor)Degree of protection (EN 60529)IP42Sound pressure level< 50 dB(A)Rated voltage230 V, 50/60 Hz (EU); 115 V, 50/60 Hz (US)Connection typeL+N+PEProtection classIOvervoltage categoryIIPollution degree2Power consumption825 W (EU) / 625 W (US) in normal operation, 1.7 W on standbyEMC classB, Group 1Operating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 m above sea levelScope of deliveryHei-PLATE Mix'n'Heat Core+ (145 mm), order number 506-21100-00The external Pt1000 temperature sensor is not included in the scope of delivery for this item number and must be ordered separately or as part of a sensor pack.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. For this model in the Hei-PLATE series, Heidolph offers a 10-year warranty provided the instrument is registered with Heidolph within the first year of purchase. Our procurement service can source the appropriate Pt1000 probe, mounts and other accessories for reflux set-ups.

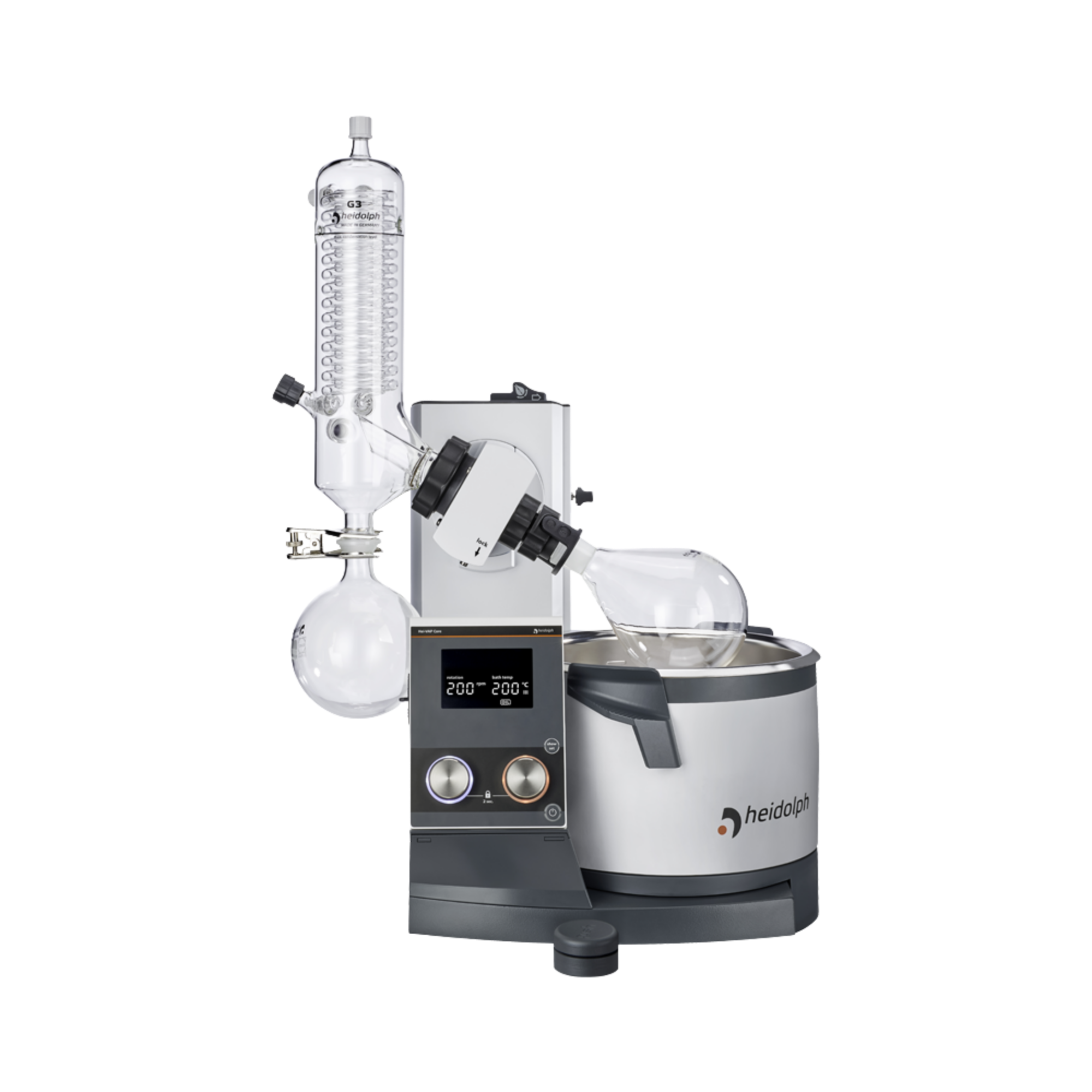

Heidolph Hei-VAP Core Handlift G3 Rotary Evaporator, Vertical Condenser, 10 to 280 rpm, 571-01300-00
The Hei-VAP Core, featuring a Handlift and G3 vertical condenser, simplifies the operation of a rotary evaporator to just two control knobs: one for the rotation speed and one for the heating bath temperature. A digital display shows actual and setpoint values, whilst LED rings make the operating status visible even from a distance.Control concept with two rotary knobs and a lock functionThe two rotary knobs operate dynamically: turning them quickly adjusts the values in large increments, whilst turning them slowly allows for precise fine-tuning. A lock function prevents accidental adjustment during operation. The flask can be adjusted to an immersion depth of up to 155 millimetres and an angle of inclination ranging from 20 to 80 degrees; the lift speed is 25 millimetres per second.Heating bath and evaporation ratesThe heating bath, made of V4A stainless steel (1.4404), has a capacity of 4.5 litres and covers a temperature range of 20 to 100 °C when using water and 20 to 210 °C when using oil. An over-temperature protection system shuts down the unit if the temperature deviates by 5 °C from the setpoint; an additional overheating protection system activates at 250 °C. At a temperature difference of 40 °C during continuous operation, the unit achieves evaporation rates of 8.5 litres per hour for toluene, 5.8 litres for acetone, 3.5 litres for ethanol and 1.2 litres for water.G3 vertical condenser and cooling surfaceThe built-in G3 vertical condenser offers a maximum cooling surface area of 0.22 square metres, depending on the glass set used. This version, featuring a Handlift, heating bath and G3 glass set (order number 571-01300-00), is the uncoated glass variant. Heidolph offers an identical version with coated glass under a separate order number; this is not part of this SKU.Safety during continuous operationA standby function stops all operations at the touch of a button, whilst a residual heat warning alerts the user to remaining heat when the heating bath temperature exceeds 50 °C. The EC motor covers a speed range of 10 to 280 revolutions per minute; the sound pressure level is below 85 dB(A), measured based on IEC 61010. The unit itself is rated to IP 20, whilst the heating bath’s connection cable is rated to IP 67.Typical applicationsGentle concentration of solvents in preparative chemistryDistillation and concentration with reproducible evaporation ratesRoutine laboratory work with frequently changing flask sizes thanks to adjustable immersion depth and angle of inclinationApplications requiring high heating bath temperatures of up to 210 °C in oil bath operationTechnical detailsDimensions (W x H x D), Handlift & Glass Set G3739 x 845 x 487 mmWeight15 kgDriveEC motorSpeed range10 to 280 rpmHeating power1,300 WPower consumptionmax. 1,400 WRated voltage230 V, 50/60 Hz or 115 V, 50/60 HzDegree of protectionUnit: IP 20, heating bath connection cable: IP 67Sound pressure levelbelow 85 dB(A), based on IEC 61010Lift speed of flask lift25 mm/sHeating bath vesselInternal Ø 253 mm, external Ø 291 mm, V4A steel (1.4404), 4.5 L capacityTemperature range of heating bath20 to 100 °C with water, 20 to 210 °C with oilOvertemperature protectionShuts off at a 5 °C deviation from the set temperatureOverheating protection250 °CControlElectronic, control accuracy ±1 °CMaximum cooling area0.22 m², depending on the glass setEvaporation rates at ΔT 40 °C (continuous operation)Toluene 8.5 L/h, acetone 5.8 L/h, ethanol 3.5 L/h, water 1.2 L/hScope of deliveryHei-VAP Core Handlift drive unit with G3 vertical condenserHeating bath made of V4A steel, 4.5 L capacityG3 glass set, uncoated versionAdditional accessories such as extra flasks, vacuum pumps or recirculating coolers are not included in the scope of delivery and must be ordered separately if required.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, put together suitable glass sets, flasks, seals or a vacuum pump for the Hei-VAP Core.
Heidolph Hei-PLATE Mix'n'Heat Core Magnetic Stirrer, Ø145 mm, up to 300 °C, 506-11100-00
For those looking for a hotplate with a magnetic stirrer but who can do without a display and sensor programming, the Hei-PLATE Mix'n'Heat Core is the entry-level model in the Hei-PLATE range. Two rotary knobs allow the speed and temperature to be set directly via a scale, without the need to navigate through menus. The 145-millimetre-diameter Kera-Disk work surface, made of anodised aluminium, heats up to 300 °C whilst stirring at up to 1,400 revolutions per minute.Two rotary knobs instead of a displayThe controls are deliberately analogue: one rotary knob sets the speed between 100 and 1,400 revolutions per minute, whilst the second sets the temperature between 20 and 300 °C, both via a scale on the unit. The heating function can be activated independently of the stirring function; an illuminated LED button indicates whether heating is in progress. Those who do not require the sensor technology and memory functions of the Core+ series will achieve results more quickly with this simplified control concept and avoid having to familiarise themselves with a menu.PID-controlled heating with safety marginThe heating power is 800 watts at 230 volts (EU) or 600 watts at 115 volts (US), controlled via PID. There is a generous safety gap between the heating plate and the control panel; a visual residual heat warning lights up on the base when the surface temperature exceeds 50 °C. The patented Kera-Disk coating, made from anodised aluminium, is chemical-resistant and scratch-resistant and, according to the manufacturer, enables short heating times despite the compact design.Typical applicationsHeating and stirring solutions to boiling pointEvaporation of small volumes on the hotplateBatch preparations with flask attachments such as Heat-On or bath attachmentsTraining and educational laboratories requiring simple, robust operationRoutine applications where temperature and speed do not need to be recordedLoad capacity and space requirementsWith a net weight of around 3 kilograms, the base can support set-ups weighing up to 25 kilograms, which also accommodates larger flasks or filled baths. Degree of protection IP42 protects against foreign bodies larger than 1 mm and against obliquely falling dripping water; the sound pressure level is below 50 dB(A). With external dimensions of 168 x 101 x 299 millimetres, the unit remains compact on the workbench, although the base, with a diameter of 145 millimetres, offers space for many standard flask sizes and accessories.Selection guide: Core, Core+ or the sensor packIf you wish to measure the sample temperature yourself rather than simply controlling the hotplate, you will need an external Pt1000 probe and therefore the digital Hei-PLATE Mix'n'Heat Core+ with LCD display. If you wish to purchase the Core equipped directly with a probe and silicone cover, you’ll find the right combination in the Hei-PLATE Sensor Advanced Package Core. If a simple magnetic stirrer without a heating function is sufficient, the more compact Hei-Mix S is the simpler alternative for smaller stirring volumes.Technical detailsDimensions (W x H x D)168 x 101 x 299 mmBase area (Kera-Disk)Ø 145 mm, anodised aluminiumWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmHeating power800 W at 230 V (EU), 600 W at 115 V (US)Heating temperature range20 to 300 °CHeating controlPIDDisplay/measurement range-80 to 350 °C (with EKT Hei-Con temperature controller)Degree of protection (EN 60529)IP42Sound pressure level< 50 dB(A)Rated voltage230 V, 50/60 Hz (EU); 115 V, 50/60 Hz (US)Connection typeL+N+PEProtection classIOvervoltage categoryIIPollution degree2Power consumption825 W (EU) / 625 W (US) in normal operation, 1.7 W on standbyEMC classB, Group 1Operating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 m above sea levelScope of deliveryHei-PLATE Mix'n'Heat Core (145 mm), order number 506-11100-00The EKT Hei-Con electronic contact thermometer, flask attachments and silicone cover are not included in the scope of delivery and must be selected separately depending on the application.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. For this model in the Hei-PLATE series, Heidolph offers a 10-year warranty provided the instrument is registered with Heidolph within the first year of purchase. Our procurement service can put together suitable accessories such as the EKT Hei-Con electronic contact thermometer, flask attachments or a silicone cover.
Heidolph Titramax 1000 platform shaker, 6 microtitre plates, incubation-capable, 544-12200-00
Anyone who regularly handles six microtitre plates at the same time or also needs to temperature-control samples will find the smaller models in the Titramax range fall short. The Titramax 1000 retains the orbit and speed range of the Titramax 100, but increases the usable area to 290 x 258 millimetres and can be upgraded to a temperature-controlled system with the Incubator 1000 heating module.Same orbit, larger surface areaThe 1.5-millimetre circular vibrating orbit and the speed range of 150 to 1,350 revolutions per minute are the same as on the Titramax 100, but the working area increases from 220 x 220 to 290 x 258 millimetres. This means there is space for up to six microtitre plates at the same time, and the maximum permissible load increases to 5 kilograms. A rubber mat with recesses and spacing holds the plates securely and allows for convenient loading and unloading.Expandable to an incubation systemA heating module as well as a low and a high incubation hood are available as accessories for the Titramax 1000. When combined with the Incubator 1000 heating module and an incubation hood, samples can be temperature-controlled whilst being shaken, for example, for applications requiring both agitation and heat simultaneously. Anyone wishing to purchase this combination as a ready-configured package will find it in the Titramax package. This accessory is not provided for the smaller Titramax 100, so temperature control remains reserved for the Titramax 1000 within the range.Typical applicationsSimultaneous processing of up to six microtitre platesShaking with simultaneous temperature control in combination with a heating module and an incubation hoodHigher sample throughputs in batch experimentsLaboratory routines requiring more space per runDrive and operating dataThe shaded-pole motor draws 25 watts and keeps the sound pressure level below 50 dB(A). A timer limits runs to a maximum of 120 minutes with an audible signal at the end; for longer processes, the unit continues to run in continuous operation. Weighing 8 kilograms and measuring 320 x 128 x 375 millimetres, the Titramax 1000 requires more floor space than the smaller models in the range. The same ambient temperature limits apply as for the smaller models: 5 to 31 °C at up to 80 % relative humidity; at higher temperatures up to 40 °C, the permissible humidity decreases linearly to 50 %. The unit is designed for installation at altitudes of up to 2,000 metres above sea level, as well as for overvoltage category II and pollution degree 2; it compensates for mains voltage fluctuations of up to 10 % without any loss of function.Technical detailsDimensions (W x H x D)320 x 128 x 375 mmWeight8 kgMaximum permissible load5 kgDriveShaded-pole motorSpeed range150 to 1,350 rpmOrbit1.5 mmType of movementcircular vibrationWorking area290 x 258 mmSpeed controlanalogueSound pressure level< 50 dB(A)Power consumption25 WUnit fuseM 1.25 A (230 V) or T 2.0 A (115 V)Permissible mains voltage fluctuations±10 %Overvoltage categoryIIPollution degree2Operating temperature5 °C to 31 °C at up to 80 % relative humidity, 32 °C to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 metres above sea levelOverheating protectionself-resettingScope of delivery1x Titramax 1000 platform shaker, order number 544-12200-00Mains cable for EU mains connectionThe heating module and incubation hoods are not included with this order number and are ordered separately if required, ready-combined in the Titramax package.Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the appliance is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, assemble a heating module and incubation hood suitable for the Titramax 1000.
Heidolph Reax top Vortexer, Small Mounting Plate, up to 3,200 rpm, 541-10000-00
Anyone who regularly needs to mix a solution quickly in the laboratory doesn’t need a vortex mixer with a programme memory, but a device that responds immediately. The Reax top is designed precisely for this purpose: simply press the tubes onto the small mounting plate, and the circular vibration with a 5-millimetre shaking orbit starts immediately and stops as soon as the vessel is lifted away again. For longer runs, the same vortex mixer can be operated in continuous mode, for example to gently but effectively dislodge stubborn cell pellets.Short-term and continuous operation via the same plateThe mounting plate enables both operating modes. Brief contact triggers short-term operation, which stops automatically as soon as the vessel is lifted away again, handy for quickly mixing individual samples between other steps in the workflow. If the vessel is held in contact continuously, the Reax top continues to run in continuous operation at up to 2,500 or 3,200 revolutions per minute, depending on the mains voltage variant of the unit (230 V at 50 Hz, 230 V or 115 V at 60 Hz). The speed is set using an analogue scale on the control knob. Once a value has been set, it can be selected again for the next run using the mark on the scale, without needing to access a menu or use a digital display.Shaded-pole motor with self-resetting overheating protectionThe Reax top is driven by a shaded-pole motor that remains reliable even during continuous operation. A self-resetting overheat protection automatically interrupts operation if the temperature becomes too high and re-enables the motor once it has cooled down, without the need to replace a fuse. Measuring 134 x 105 x 172 millimetres and weighing 2.8 kilograms, the unit takes up little space on the worktop and can be quickly moved to another workstation if required. Power consumption is 51 watts.Reax top or Reax controlIf you only need to set the speed roughly, the Reax top’s reference scale will suffice. However, if you require repeatable, precise values or a particularly uniform speed that remains constant at lower settings for shear-sensitive samples, the Reax control with electronic speed control is the better choice. Both units share the same dimensions and a 5-millimetre shaking orbit. If several vessels need to be mixed simultaneously rather than one after the other, the Multi Reax for 12 or 26 tubes is the more suitable choice. For mixing tasks involving larger vessels and quick-clamping technology, the overhead shaker Reax 2 incl. universal adapter is also available; this is a different category of instrument with a different operating principle.Typical applicationsThe small mounting plate makes the Reax top a quick tool for routine work, without the need to select a programme or set a time beforehand.Brief mixing of solutions and buffers between other work stepsResuspending and dissolving cell pellets in continuous operationHomogenisation of highly viscous mediaRoutine mixing of individual test tubes or sample tubes in biology and chemistry laboratoriesTechnical detailsDimensions (W x H x D)134 x 105 x 172 mmWeight2.8 kgDriveShaded-pole motorSpeed range100 to 2,500 rpm or 200 to 3,200 rpm, depending on the mains voltage variantSpeed controlAnalogue, reference scaleType of motioncircular vibrationOrbit5 mmSound pressure level< 50 dB(A) up to 2,500 rpm, < 58 dB(A) up to 3,200 rpmRated voltage230 V at 50 Hz, 230 V or 115 V at 60 HzPower consumption51 WOverheating protectionself-resettingScope of deliveryThe Reax top with small mounting plate is included in the scope of delivery, along with the main unit fitted with the small mounting plate. A larger mounting plate, as well as test tube racks and test tube holders, are separate accessories and are not included in this delivery.Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the equipment is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, put together suitable accessories such as test tube racks, holding rods with vessel holders or the larger mounting plate.
Heidolph Hei-FLOW Core 600 Peristaltic Pump, 50 to 600 rpm, up to 4,151 ml/min, 523-50060-00
Pumping larger volumes in a shorter time requires a drive with greater speed reserve than the 120 series offers. The Hei-FLOW Core 600 covers a speed range of 50 to 600 revolutions per minute and, with a single-channel pump head, achieves a flow rate of up to 4,151 millilitres per minute. Like all Hei-FLOW drives, it is supplied without a pump head; this is selected separately to suit the fluid being pumped.High flow rate for single-channel applicationsThe Core 600 is designed for use with single-channel pump heads, with flow rates ranging from 4.0 to 4,151 millilitres per minute. A switch reverses the flow direction, allowing the same unit to be used for both filling and emptying larger vessels. The Core 600 is not intended for multi-channel operation; the 120 series models are available for this purpose.Same drive technology, higher speedThe EC motor draws 100 watts and delivers the same power; it is digitally controlled with a control accuracy of ± 0.5 % according to the data sheet and a flow accuracy of ± 5 %. The unit is designed for continuous operation 24 hours a day, 7 days a week, and switches off automatically in the event of overheating. Weighing 7.1 kilograms, the Core 600 is slightly lighter than the 120 models in the range due to its more compact internal design; the dimensions of 166 by 225 by 256 millimetres (excluding the pump head) remain the same. This means the Core 600 can be swapped for a 120 model without requiring any additional space should a process suddenly demand higher throughput.Degree of protection, noise level and connectionDegree of protection IP 54 according to DIN EN 60529 and protection class 1 according to EN 61140 correspond with the standard for the entire Hei-FLOW range. The sound pressure level is below 55 dB(A) based on IEC 61010, even at the higher speeds of the 600 series. The unit is powered by 110 to 240 volts at 50 or 60 hertz.Typical applicationsDecanting and transferring large volumes of liquidFilling and emptying of containers via reversible flowHigh-throughput processes with minimal space requirementsPilot-scale trials where the speed of the 120 series models is insufficientSelection guide: Core 600 or one of the 120 seriesThose who primarily handle smaller volumes or multiple channels in parallel are better served by the Hei-FLOW Core 120 or the Hei-FLOW Core 120 Multi; both cover 10 to 120 revolutions per minute. If the high flow rate of the 600 series is also to be controlled via an analogue interface or foot switch, the Hei-FLOW Expert 600 offers the same speed range with external connectivity. The Hei-FLOW Ultimate 600 is available for digital display, an RS232 interface and dosing functions at high throughput.Technical detailsDimensions (W x H x D)166 x 225 x 256 mm, excluding pump headWeight7.1 kg (excluding pump head)DriveEC motorSpeed range50 to 600 rpmSpeed controlDigitalSpeed displayAnalogueControl accuracy± 0.5 %Volume flow accuracy± 5 %Single-channel flow rate4.0 to 4,151 ml/minDirection of rotationclockwise / anti-clockwisePower consumption100 WMotor power100 WOperating modeContinuous operation 24 hours a day, 7 days a weekOverheating protectionYesRated voltage110 to 240 V, 50/60 HzDegree of protection (EN 60529)IP 54Protection class1 (EN 61140)Sound pressure level< 55 dB(A) (based on IEC 61010)Scope of deliveryHei-FLOW Core 600 drive unit, order number 523-50060-00Operating instructions and Safety Guide as PDF downloadsThe pump head and tubing are not included in the scope of delivery. For the Core 600, single-channel pump heads from the SP quick, SP standard and SP vario series are available, as well as tubing made from silicone, Tygon, PharMed or Viton in 1.6 or 2.5 millimetres.Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against material and manufacturing defects. This excludes glass and wear parts, damage caused during transport, and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. We will source the pump head, tubing and tubing connectors for the Core 600 on request.
Heidolph Vibramax 100 Platform Shaker, 3 mm Orbit, for Solubility Studies, 544-21200-00
Solubility studies and leaching tests require a shaker that can securely hold even larger containers whilst agitating them vigorously enough to actually dissolve the substances. An orbit that is too gentle leaves solids at the bottom of the vessel, whilst a frame that is too small limits the sizes of containers that can be used. The Vibramax 100 operates with a circular vibration and an orbit of 3 millimetres, and can be fitted with an optional clamping roller attachment to accommodate different container sizes.Powerful agitation for suspension and solubility testsAccording to the operating manual, the shaded-pole motor covers a speed range of 150 to 1,350 revolutions per minute, with analogue adjustment. This makes the Vibramax 100 suitable for suspension, solubility studies and investigations into the leaching of materials. A timer limits runs to a maximum of 120 minutes with an audible signal; in continuous operation, the unit runs without a time limit.Accessories for different vessel sizesThe optional attachment with clamping rollers allows larger containers, such as Erlenmeyer flasks or bottles, to be secured in addition to the non-slip rubber mat, even at high speeds. For smaller vessels, a tray with universal perforations and a clamp for 25-millilitre Erlenmeyer flasks are available; the platform can thus be reconfigured depending on the sample without changing the base unit. As the various accessories are mounted on the same base plate, switching between open vessels and the clamping roller assembly requires just a few simple steps. According to the manufacturer, these same accessories also fit the structurally identical Rotamax 120; anyone operating both instruments in the same laboratory can swap the tray, clamps and clamping roller assembly between the shakers as required.Compact chassis, shared designDimensions (245 x 125 x 310 millimetres), weight (5.5 kilograms) and working area (220 x 220 millimetres) are the same as those of the Titramax 100 and the Rotamax 120; all three share the same compact chassis from the 1000 series. With a power consumption of 31 watts, the sound pressure level remains below 50 dB(A), whilst a self-resetting overheating protection system ensures safe operation. The operating ambient temperature range is 5 to 31 °C at up to 80 % relative humidity; at higher temperatures up to 40 °C, the permissible humidity decreases linearly to 50 %; the unit is designed for installation at altitudes of up to 2,000 metres above sea level, as well as for overvoltage category II and pollution degree 2; it compensates for mains voltage fluctuations of up to 10 % without any loss of function.Typical applicationsSuspension of solids in liquidsSolubility studiesInvestigations into the leaching of materialsShaking tests with larger containers using the clamping roller attachmentTechnical detailsDimensions (W x H x D)245 x 125 x 310 mmWeight5.5 kgMaximum permissible load2 kgDriveShaded-pole motorSpeed range150 to 1,350 rpmOrbit3 mmType of movementcircular vibrationWorking area220 x 220 mmSpeed controlanalogueSound pressure level< 50 dB(A)Power consumption31 WUnit fuseM 1.25 A (230 V) or T 2.0 A (115 V)Permissible mains voltage fluctuations±10 %Overvoltage categoryIIPollution degree2Operating temperature5 °C to 31 °C at up to 80 % relative humidity, 32 °C to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 metres above sea levelOverheating protectionself-resettingScope of delivery1x Vibramax 100 platform shaker, order number 544-21200-00Mains cable for EU mains connectionThe clamping roller attachment, tray and clamps are accessories and are not included in the scope of delivery; they must be ordered separately if required.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the equipment is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, assemble a clamping roller attachment, tray and clamps suitable for the Vibramax 100.

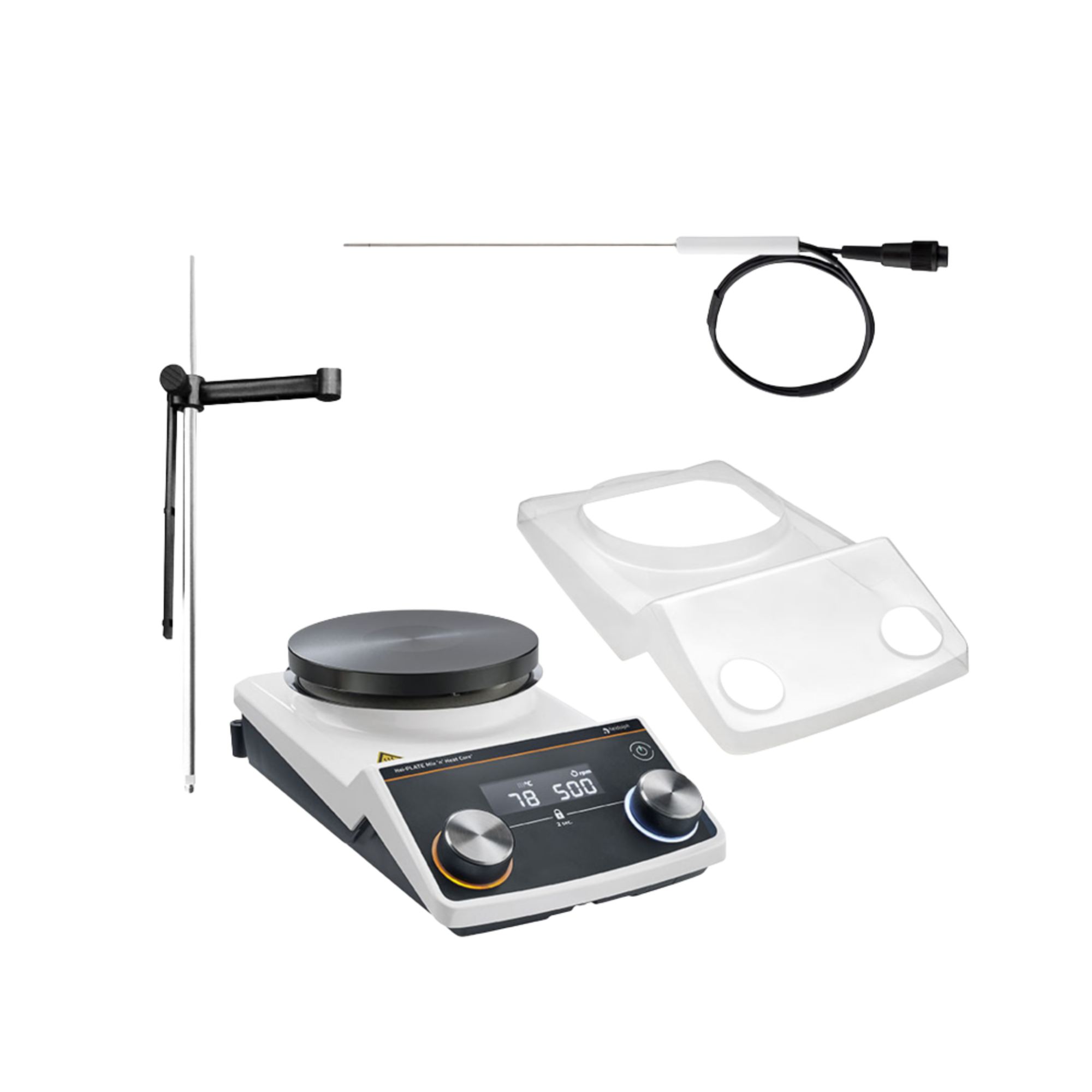

Heidolph Hei-PLATE Sensor Advanced Package Core+ Magnetic Stirrer Set, Ø145 mm, Pt1000 Probe and Silicone Cover, 506-21151-00
Anyone using the Core+ magnetic stirrer in continuous operation needs more than just the probe; a secure cable holder and protection for the work surface are essential for everyday laboratory use. The Sensor Advanced Package Core+ provides exactly that in a single package: the digital Hei-PLATE Mix'n'Heat Core+ with a 145-millimetre footprint, the external Pt1000 temperature probe, a Pt1000 holder with cable management and a silicone cover.Mount and cover for everyday useThe Pt1000 holder with cable management system (order number 509-63100-00) holds the temperature probe and its cable in place whilst stirring and heating, ensuring that the probe does not slip and the cable does not get caught up in the stirring motion. The Hei-PLATE Mix'n'Heat silicone cover (order number 23-07-06-05-76) protects the patented Kera-Disk heating plate, made of anodised aluminium, from splashes and contamination between uses.Digital display, two heating modesThe LCD display on the Hei-PLATE Mix'n'Heat Core+ shows the speed and temperature, whilst the control dials respond dynamically to the speed of the hand movement. The operator can choose between the FAST and PRECISE heating modes depending on the task: FAST for reaching the target temperature quickly, and PRECISE for control without overshoot. With its Pt1000 sensor, the device covers a display and measurement range from 15 to 325 °C, with a measurement accuracy of ±0.2 Kelvin plus the sensor tolerance. A lock function protects the set values from accidental adjustment, and the generous safety clearance between the heating plate and the control panel, together with a visual residual heat warning from 50 °C, protects against burns.Typical applicationsContinuous laboratory use with frequently changing batches and a permanently mounted probeBatch experiments where the work surface between batches needs to remain protectedReaction runs with a defined target temperature in the medium over extended stirring timesTraining and routine laboratories with multiple users sharing the same unitSelection guide: Advanced, Basic or RefluxThose who only require the probe without a mount or cover will find the leaner option in the Sensor Basic Package Core+. For set-ups with a reflux condenser, the Reflux Core+ and Reflux Core+ Mini packages are available, both of which are also based on the Core+ magnetic stirrer. The analogue Sensor Advanced Package Core is suitable for simpler rotary-knob operation without an LCD display. The base unit itself can also be used on its own as the Hei-PLATE Mix'n'Heat Core+.Technical detailsDimensions (W x H x D)168 x 101 x 299 mmHeating plate footprintØ 145 mmWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmHeating power800 W at 230 V (EU), 600 W at 115 V (US)Heating temperature range20 to 300 °CHeating controlPIDDisplayLCD displayTemperature measurement accuracy±0.2 K plus Pt1000 toleranceTemperature measurement resolution1 KDisplay and measurement range with Pt100015 to 325 °CDegree of protection (EN 60529)IP42Sound pressure levelless than 50 dB(A)Rated voltage230 V, 50/60 Hz (EU), 115 V, 50/60 Hz (US)Scope of deliveryHei-PLATE Mix'n'Heat Core+ magnetic stirrer, 145 mm footprint, order number 506-21100-00Pt1000 temperature sensor (V4A), order number 509-67910-00Pt1000 holder with cable management, order number 509-63100-00Hei-PLATE Mix'n'Heat silicone cover, order number 23-07-06-05-76Regulatory informationThe devices in this package are electrical appliances within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the appliance is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Heidolph offers a 10-year warranty on the Hei-PLATE series magnetic stirrer included in the package, provided the instrument is registered with Heidolph within the first year of purchase. This extended warranty does not apply to temperature sensors, the mounting bracket or the silicone cover, which are sold as accessories. Our procurement service can supply replacement silicone covers, additional mounts or further temperature sensors for the Core+ magnetic stirrer as required.
Heidolph Reax 2 overhead shaker, quick-release mechanism for 2 vessels, without universal adapter, 541-21001-00
Not every laboratory needs the universal adapter straight away. Those who already have their own adapter or work exclusively with larger vessels using the quick-release mechanism will find that the Reax 2 offers the same basic unit as the version with the adapter, just without the accessory, and is therefore slightly cheaper. The technology and design remain unchanged; the only difference is what is actually included in the box.Quick-release system for 2 vesselsTwo clamping holders accommodate vessels of different sizes and can be opened and closed without tools. The maximum permissible load is 1 kilogramme, and the usable area measures 230 x 160 millimetres. The universal adapter for sealed vessels with a height of 50 to 160 millimetres is not included in the scope of delivery for this order number, but can be added at any time as a separate accessory should you wish to mix smaller test tubes alongside the two large vessels.Electronically controlled overhead rotationThe Reax 2 rotates the vessels upside down and controls the speed electronically; the speed is displayed on an analogue readout. According to the data sheet, the speed range is 20 to 200 revolutions per minute. With a sound pressure level below 45 dB(A) based on IEC 61010 and a maximum power consumption of 33 watts, operation remains unobtrusive; a self-resetting overheating protection mechanism also safeguards against prolonged running.Desktop design, weighing 5 kilogramsMeasuring 501 x 235 x 180 millimetres and weighing around 5 kilograms, the Reax 2 is designed for a permanent place on the worktop, not for constant moving between rooms. The rated voltage is 230 to 240 V at 50 Hz or 115 V at 60 Hz; the unit is powered by a shaded-pole motor. A self-resetting overheating protection system automatically intervenes if the temperature becomes too high and allows operation to resume once the unit has cooled down. For processing individual tubes from time to time, without the need for quick-release clamping, a compact vortex mixer such as the Reax top from the same Heidolph range is more suitable.Typical applicationsWithout the universal adapter, the focus remains on the two quick-release holders for larger vessels; for batches of smaller tubes, the option to add the adapter remains available at any time.Homogenisation and mixing of liquids in two larger vessels simultaneouslyGentle mixing of samples that cannot tolerate strong vibrationsSupplementing a laboratory that already has its own universal adapterGetting started with Reax-2 technology, with the option to retrofit the adapter separately at a later dateTechnical detailsDimensions (W x H x D)501 x 235 x 180 mmWeightapprox. 5 kgMaximum permissible load1 kgDriveShaded-pole motorSpeed range20 to 200 rpm, analogue displaySpeed controlelectronicWorking area230 x 160 mmMovement typerotating overheadSound pressure level< 45 dB(A), based on IEC 61010Rated voltage230 to 240 V at 50 Hz or 115 V at 60 HzPower consumption33 W max.Overheating protectionself-resettingScope of deliveryThe Reax 2 base unit is included in the scope of delivery. The universal adapter is not included with this order number and can be ordered separately if required, as can holders for other vessel sizes. If you would like the adapter included from the outset, opt instead for the Reax 2 incl. universal adapter, which comes with the adapter included.Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service will supply the universal adapter or other accessories for the Reax-2 series as and when required.
Heidolph Reax 2 including universal adapter, overhead shaker, quick-release mechanism for 2 vessels, 541-21009-00
The Reax 2 mixes vessels upside down rather than vibrating them sideways, which protects samples that cannot tolerate harsh vibrations but still need to be thoroughly mixed. In this version, the universal adapter is included, so that, in addition to two larger vessels using the quick-release system, up to 20 test tubes can also be accommodated, ready to use without the need to order separate accessories. For laboratories that mix both individual larger bottles and entire batches of smaller tubes, a single unit thus covers both scenarios.Quick-release clamping system for 2 vessels plus adapter for 20 test tubesThe two clamps of the quick-release mechanism accommodate containers of different sizes and can be opened and closed without tools. The universal adapter supplied is suitable for sealed vessels between 50 and 160 millimetres in height and extends the device’s capacity to hold up to 20 test tubes simultaneously, handy when a whole series of smaller tubes needs to be processed instead of two larger bottles. The maximum permissible load is 1 kilogram.Electronically controlled overhead rotationThe Reax 2 rotates the vessels upside down and controls the speed electronically; the speed is displayed on an analogue readout. According to the data sheet, the speed range is 20 to 200 revolutions per minute. With a sound pressure level below 45 dB(A) based on IEC 61010 and a maximum power consumption of 33 watts, operation remains unobtrusive, even over extended periods. The unit is powered by a shaded-pole motor designed for the specified rated voltage of 230 to 240 V at 50 Hz or 115 V at 60 Hz.Design for a fixed laboratory workstationMeasuring 501 x 235 x 180 millimetres and weighing around 5 kilograms, the Reax 2 is designed as a stationary unit for a fixed position on the worktop, not for constant movement between rooms. The working area, measuring 230 x 160 millimetres, accommodates the quick-release holders and, if required, the universal adapter. A self-resetting overheating protection system safeguards even longer runs, without the need to manually replace a fuse. For processing individual tubes from time to time, without the quick-release mechanism, a compact vortex mixer such as the Reax top from the same Heidolph range is more suitable.Typical applicationsOverhead rotation is suitable for samples that need to be mixed evenly but without harsh vibrations.Homogenising and mixing liquids in two larger vessels simultaneouslyBatch mixing of up to 20 test tubes using the supplied universal adapterGentle mixing of samples that cannot tolerate strong vibrationsFlexible use between a few large and many small vessels without the need to purchase additional accessoriesTechnical detailsDimensions (W x H x D)501 x 235 x 180 mmWeightapprox. 5 kgMaximum permissible load1 kgDriveShaded-pole motorSpeed range20 to 200 rpm, analogue displaySpeed controlelectronicWorking area230 x 160 mmMovement typerotating overheadSound pressure level< 45 dB(A), based on IEC 61010Rated voltage230 to 240 V at 50 Hz or 115 V at 60 HzPower consumption33 W max.Overheating protectionself-resettingScope of deliveryReax 2 overhead shaker, base unitUniversal adapter for sealed vessels with a height of 50 to 160 mmIf you do not require the adapter, for example, because you already have your own or because you work exclusively with the two quick-release clamps, the Reax 2, which is identical in construction but without the universal adapter, offers a slimmer and slightly more affordable version of the same base unit.Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the instrument is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, source additional accessories for the Reax-2 series, for example for different vessel sizes.
Heidolph Reax control vortex mixer, small sample tray, up to 2,500 rpm, 541-11000-00
Some samples cannot tolerate coarse speed adjustments. Cell cultures and other shear-sensitive materials require a speed that can be precisely repeated and remains consistently stable at lower speeds. The Reax control is the variant of the Reax series featuring a scaled speed display, designed precisely for those instances where a value must be reproduced accurately rather than merely approximated. On the other hand, if you only need to set the speed roughly by feel, you will usually reach your goal more quickly with the simpler basic model in the range.Scaled display instead of an estimated valueInstead of a simple memorised scale, the Reax control features a speed scale on the control knob, allowing the set value to be read directly. The manufacturer describes the control system as electronic with a scaled speed display, so that applications at a specific speed are shaken more gently. In the low speed range, the speed remains constant, which is particularly beneficial for organisms sensitive to shear forces. The speed range extends from 0 to 2,500 revolutions per minute, meaning that even very low speeds can be accurately set for sensitive samples.Same design as the Reax topIn terms of housing, motion type and shaking orbit, the Reax control does not differ from the base model: 134 x 105 x 172 millimetres, weighing 2.8 kilograms, with a circular vibrating motion featuring a 5-millimetre orbit, driven by a shaded-pole motor with a power consumption of 51 watts and self-resetting overheating protection. Anyone already using the Reax top who needs a second unit for samples with tighter tolerances can operate both models side by side on a shelf without having to get used to a different design. If, instead of a single tube, a whole set of vessels needs to be processed at the same time, the Multi Reax from the same series can handle up to 26 tubes in a single run.Accessories for test tubes and sample vialsThe small sample tray is designed for individual vessels. Those who regularly work with a fixed number of test tubes can supplement the Reax control with a holding rack for 10 test tubes or a holding rod with a vessel holder, both of which are standalone accessories from the Reax series. A holder for reagent vessels or a larger sample tray can also be added at a later date if the requirements of day-to-day laboratory work change, without the need for a new base unit.Typical applicationsThe scaled display proves its worth wherever a method specifies a particular speed or where results must remain comparable across multiple runs.Mixing shear-sensitive cell suspensions at a constant, repeatable speedReproducible sample preparation according to a specified methodMixing of reagents where excessive shaking should be avoidedA secondary unit alongside a Reax top for samples with more stringent speed requirementsTechnical detailsDimensions (W x H x D)134 x 105 x 172 mmWeight2.8 kgDriveShaded-pole motorSpeed range0 to 2,500 rpmSpeed controlanalogue, speed scaleType of motioncircular vibrationOrbit5 mmSound pressure level< 50 dB(A) up to 2,500 rpmRated voltage230 V, 50/60 Hz or 115 V, 50/60 HzPower consumption51 WOverheating protectionself-resettingScope of deliveryThe scope of delivery for the Reax control with small sample tray includes the main unit fitted with the small sample tray. A larger sample tray, as well as racks and holding rods for test tubes, are separate accessories and are not included in this delivery, nor is the reagent vessel holder, which is useful for larger batches.Regulatory informationThe device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the equipment is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, put together suitable accessories such as test tube racks, holding rods with vessel holders or the larger sample tray.
Heidolph Incubator 1000 heating module, 300 W heating power, up to 65 °C, 549-90010-00
A platform shaker from the Heidolph 1000 series can be converted into a temperature-controlled incubation system with the Incubator 1000 heating module. The module delivers 300 watts of heating power for rapid heating times and reaches temperatures of up to 65 °C, sufficient for the cultivation of thermophilic organisms.Performance data and temperature rangeUniform and rapid heat distribution is essential for reproducible results. With 300 watts of heating power, the module ensures short heating times within the incubation system, up to a temperature of 65 °C. This also allows the cultivation of microorganisms that require temperatures higher than room temperature.Integration with the modular incubator systemThe heating module is not a stand-alone shaker in its own right, but complements an existing 1000 series platform shaker, together with a suitable incubation hood (flat or high), to form a closed, temperature-controlled system. The shaker provides the agitation, the heating module controls the temperature, and the hood retains the heat inside the chamber.Compatible host units in this rangeFrom this product range, the heating module can be combined with the reciprocating Promax 1020, the rocking Duomax 1030, the tumbling Polymax 1040 and the circular-vibrating Titramax 1000; all of which share the 1000 series chassis. Customers purchasing the Titramax 1000 and heating module together will find the pre-assembled combination, including a flat incubation hood, available as a separate package under order number 544-12209-00.Choose between a flat or high incubation hoodTo ensure that the heat remains inside the chamber, Heidolph supplements the heating module with two versions of the incubation hood: a flat and a tall variant. Which of the two is suitable depends on the height of the vessels used. Both hoods are separate items in the accessories range and are not part of this heating module.One heating module for multiple shakersAs the Promax 1020, Duomax 1030, Polymax 1040 and Titramax 1000 share the same chassis and the same accessory interface as the 1000 series, the same heating module can be fitted to different shakers as required. Anyone operating several instruments from this series in the laboratory therefore does not need to keep a separate heating module for each individual model.Retrofitting instead of buying newIf a 1000 series platform shaker is already in the laboratory, retrofitting it with the heating module saves the need to purchase an additional, standalone incubation cabinet for temperature-controlled runs. The module complements existing equipment rather than introducing a completely new category of equipment into the laboratory, and can easily be taken along if the shaker is moved to another bench.Typical applicationsRetrofitting an existing platform shaker to create a temperature-controlled incubation systemCultivation of thermophilic organisms at temperatures up to 65 °CTemperature-controlled shaking runs that do not require a separate incubatorFitting several 1000-series shakers with the same type of heating module to ensure consistent equipmentTechnical detailsHeating power300 WTemperatureup to 65 °CScope of deliveryHeating module for Incubator 1000, including mains cable (EU version)The platform shaker itself and the incubation hood are not included in the scope of delivery for the heating module and are ordered separately, unless already available.Regulatory informationThe heating module is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass parts and wear parts, damage caused during transport, and damage resulting from improper use. If the equipment is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service will, if required, put together the appropriate combination of platform shaker, heating module and incubation hood.
Heidolph Hei-PLATE Reflux Package Core+ magnetic stirrer set, Ø145 mm, with Findenser and Heat-On, 506-21156-00
Larger reflux set-ups requiring up to one litre of solvent need more than one temperature sensor, a suitable heating attachment and a condenser that are compatible with the flask’s volume. The Reflux Package Core+ provides this combination, fully coordinated and ready to use, based on the Hei-PLATE Mix’n’Heat Core+ with a 145-millimetre footprint.From preparation to distillationTraditional reflux set-ups often rely on a water or oil bath between the hotplate and the flask. The Heat-On attachment with a 1-litre capacity, order number 505-80071-00, replaces this bath with direct contact to the flask, thereby eliminating the need to fill, monitor and clean the bath. The included Pt1000 temperature probe regulates the temperature of the medium; in conjunction with the probe, the magnetic stirrer covers a measuring range from 15 to 325 °C with an accuracy of ±0.2 Kelvin.Cooling without a water connection, up to 1 lThe Findenser, featuring an NS24 core and NS24 sleeve (order number 505-81700-00), performs the cooling function of a conventional water condenser, but operates purely with air. Its capacity is sufficient for solvent volumes of up to 1 l. A round-bottom flask is not included in the scope of delivery, as the flask size depends on the specific application. If the flask is filled only halfway, the risk of losing solvent during reflux is reduced.Selection guide: this package or the Mini versionFor batches of up to 125 millilitres, the more compact Reflux Package Core+ Mini, with a footprint of 135 millimetres and smaller accessories, is the more suitable choice. If a temperature probe without a cooling assembly is sufficient, the more compact solution is the Sensor Basic Core+ pack or, with a mount and silicone cover, the Sensor Advanced Core+ pack.Larger footprint, more space on the workbenchThe 145-millimetre footprint of the Hei-PLATE Mix’n’Heat Core+ offers sufficient space for flasks in the one-litre range and for the supplied Heat-On attachment. The drive, speed range and heating power are identical to those of the smaller Core+ magnetic stirrer in the Mini version; only the usable surface area and the accessories differ.Typical applicationsPreparative syntheses with batches ranging from several hundred millilitres to 1 lReflux extractions in which larger volumes of solvent remain in the circuitRoutine batches in laboratories without a fixed water supply for coolingPreparation of a batch prior to subsequent distillation or purificationTechnical detailsDimensions (W x H x D)168 x 101 x 299 mmFootprint of heating plateØ 145 mmWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmHeating power800 W at 230 V (EU), 600 W at 115 V (US)Heating temperature range20 to 300 °CHeating controlPIDDisplayLCD displayTemperature measurement accuracy±0.2 K plus Pt1000 toleranceDisplay and measurement range with Pt100015 to 325 °CDegree of protection (EN 60529)IP42Rated voltage230 V, 50/60 Hz (EU), 115 V, 50/60 Hz (US)Scope of deliveryHei-PLATE Mix'n'Heat Core+ magnetic stirrer, 145 mm base area, order number 506-21100-00Pt1000 temperature sensor (V4A), order number 509-67910-00Heat-On 1-litre attachment, order number 505-80071-00Findenser, NS24 core, NS24 sleeve, order number 505-81700-00A round-bottom flask is not included in the scope of delivery and must be ordered separately to fit the attachment.Regulatory informationThe equipment in this package constitutes electrical equipment within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport, and damage resulting from improper use. If the appliance is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Heidolph offers a 10-year warranty on the Hei-PLATE series magnetic stirrer included in the package, provided the instrument is registered with Heidolph within the first year of purchase. This extended warranty does not apply to temperature sensors, the Heat-On attachment or the Findenser as accessories. Our procurement service can, if required, source larger round-bottom flasks, additional Heat-On attachments or spare parts for the Findenser.
Heidolph Hei-TORQUE Ultimate 200 Overhead Stirrer, 10 to 2,000 rpm, 200 Ncm, 501-62020-00
The Hei-TORQUE Ultimate 200 is the mid-range model in the Ultimate series and is designed for applications that require more power than the entry-level Ultimate 100. With a torque of 200 Ncm and a speed range of 10 to 2,000 rpm, it can stir volumes of up to 50 l (H2O) and media with a viscosity of up to 100,000 mPas, twice as much as the smaller model can handle.Ramp programming for multi-stage processesLike all Ultimate models, the Hei-TORQUE Ultimate 200 can be controlled via ramp programming, combined with a timer function and a torque trend display as a numerical value. A stirring process comprising several phases, such as slow mixing followed by intensive dispersion, can thus be programmed once and recalled for every subsequent run, rather than having to be manually readjusted for each experiment.Two interfaces for PC, PLC and LabManagerUSB and RS232 allow the Ultimate 200 to be connected simultaneously to a PC, a programmable logic controller (PLC) or an automation system such as LabManager. The Hei-Control software, included as part of the scope of delivery, controls and logs up to four devices simultaneously, which simplifies documentation in laboratories with several stirring stations operating in parallel.Designed for continuous operation in a fume hoodWeighing 5.1 kilograms and measuring 86 x 350 x 247 millimetres, the Ultimate 200 is compact enough to be installed in a fume hood. The EC motor is designed for continuous operation and remains below 70 dB(A). A KTY temperature monitoring system protects against overheating; in the event of an overload, the unit switches off automatically with a visual indication, and the touch-sensitive start/stop function reduces the risk of accidental activation whilst handling the stand.Stirring tools as requiredThe quick-release chuck with safety ring accommodates stirring shafts with diameters ranging from 2.5 to 10.5 millimetres and is compatible with the full range of stirring elements, from blade stirrers and propeller stirrers with guide rings to turbine stirrers and Visco-Jet tools for more viscous media. The stirring element itself is not included in the scope of delivery and must be selected separately to suit the application.Typical applicationsMulti-stage stirring processes with programmed speed rampsHomogenisation and dispersion of medium-viscosity to viscous mediaReactor set-ups in fume hoods with test parameters subject to documentation requirementsLaboratory operations with multiple stirring stations controlled by a single computerSelection guide for the Hei-TORQUE seriesThose who only require 100 Ncm will find the same ramp programming in a lighter unit with the Hei-TORQUE Ultimate 100. If a process requires more torque or a two-stage gearbox for very viscous media, the Hei-TORQUE Ultimate 400 is suitable. If ramp programming is not required, the Hei-TORQUE Expert 200 offers an easier-to-use variant with the same torque. The Ultimate 200 is available as part of the Hei-TORQUE Gold 2 Package, complete with a telescopic stand and clamp.Technical detailsDriveEC motorSpeed range10 to 2,000 rpmSpeed controlElectronic, accuracy ±1 %Max. torque200 NcmViscosity up to100,000 mPasMax. H2O volume50 lStirring shaft (diameter)2.5 to 10.5 mmNumber of gear stages1Clockwise/anti-clockwise rotationyesDegree of protectionIP54 according to DIN EN 60529Protection classI according to IEC 61140Overvoltage categoryIIPollution degree2Operating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 m above sea levelMotor protectionKTY temperature monitoringOverload protectionAutomatic shut-off with indicatorPermissible duty cycleSuitable for continuous operationSound pressure levelbelow 70 dB(A), based on IEC 61010Rated voltage100 to 240 V AC, 50/60 HzPower consumption120 WDimensions (W x H x D)86 x 350 x 247 mmWeight5.1 kgScope of deliveryHei-TORQUE Ultimate 200 drive unitHei-Control software for remote control and data logging of up to four unitsA stirring element is not included and must be ordered separately to suit the specific application.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the instrument is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, source suitable stirring elements, stands and clamps for the Hei-TORQUE Ultimate 200.
Heidolph Titramax Package Platform Shaker Set, with Heating Module and Incubation Hood, 544-12209-00
If you want to shake samples whilst maintaining a constant temperature, you’ll need more than just the platform shaker on its own. The Titramax package combines the Titramax 1000 with the Incubator 1000 heating module and a flat incubation hood to form a ready-to-use incubation system, without the need to assemble the three components individually.Three components, one systemThe package includes the Titramax 1000 platform shaker (order number 544-12200-00), the Incubator 1000 heating module (order number 549-90010-00) with a heating power of 300 watts and a temperature of up to 65 °C, and a flat incubation hood that completes the assembly at the top. The heating module is positioned beneath the shaker and heats the interior space beneath the hood evenly, enabling even thermophilic organisms to be incubated. The flat hood covers the top of the Titramax 1000’s working area and retains the heat inside, whilst the platform below continues to operate. Anyone requiring a taller configuration, for example for larger vessels requiring agitation and heating, can order the tall incubation hood separately; it is available as a standalone accessory. The ambient temperature range for the shaker is 5 to 31 °C at up to 80 % relative humidity; at higher temperatures up to 40 °C, the permissible humidity decreases linearly to 50 %. The unit is designed for installation at altitudes of up to 2,000 metres above sea level.Advantages over a standalone shakerThe Titramax 1000 on its own agitates samples at room temperature on a working area of 290 x 258 millimetres for up to six microtitre plates, with a 1.5-millimetre orbit and 150 to 1,350 revolutions per minute. The package also includes temperature control; agitation and heating operate simultaneously, which shortens processes that would otherwise require a separate incubator. Those who already own the shaker and simply wish to retrofit it can order the heating module and hood separately; those starting from scratch save the effort of matching the individual components by choosing the package. Within the 1000 series, this combination is intended for the Titramax 1000; the smaller models, the Titramax 100 and Titramax 101, have no dedicated heating-module accessory.Typical applicationsTemperature-controlled incubation of cell cultures or microorganisms under agitationCultivation of thermophilic organisms up to 65 °CCombined shaking and heating processes without a separate incubatorBatch experiments with up to six microtitre plates at a constant temperatureTechnical detailsThe following values refer to the Titramax 1000 base unit. The heating module provides an additional 300 watts of heating power at a final temperature of up to 65 °C; we provide further technical data on the heating module and incubation hood on request.Dimensions (W x H x D)320 x 128 x 375 mmWeight8 kgMaximum permissible load5 kgDriveShaded-pole motorSpeed range150 to 1,350 rpmOrbit1.5 mmType of movementcircular vibrationWorking area290 x 258 mmSpeed controlanalogueSound pressure level< 50 dB(A)Power consumption of shaker25 WPower consumption of heating module300 WFinal temperature of heating moduleup to 65 °CShaker device fuseM 1.25 A (230 V) or T 2.0 A (115 V)Permissible mains voltage fluctuations±10 %Overvoltage categoryIIPollution degree2Installation altitudeup to 2,000 metres above sea levelScope of delivery1x Titramax 1000 platform shaker, order number 544-12200-00 (see Titramax 1000)1x Incubator 1000 heating module, order number 549-90010-00 (see Incubator 1000 heating module)1x flat incubation hoodRegulatory informationThe equipment in this package constitutes electrical and electronic equipment within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the appliance is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, supply the tall incubation hood or spare parts for shakers and heating modules individually.
Heidolph Hei-PLATE Sensor Advanced Package Core Magnetic Stirrer Set, Ø145 mm, with Contact Thermometer, 506-11157-00
For those who wish to stir and heat using two control knobs in the laboratory and read the temperature directly from the vessel, the Sensor Advanced Package Core offers a ready-to-use combination of an analogue magnetic stirrer and an external contact thermometer. The package is based on the Hei-PLATE Mix'n'Heat Core, which has a footprint of 145 millimetres, and supplements it with an EKT Hei-Con electronic contact thermometer complete with a holder, as well as a silicone cover for everyday use.Two rotary knobs, a thermometer in the mediumThe Hei-PLATE Mix'n'Heat Core included in the package allows speed and temperature to be set via a scale, up to a maximum of 1,400 revolutions per minute and 300 °C. The heating function can be activated separately from the stirring function and is then indicated by a light on the rotary knob. A visual residual heat warning from 50 °C and a generous gap between the heating plate and the control panel protect against burns. The base unit itself has no temperature display and no Pt1000 connection; the pack provides the missing component: The EKT Hei-Con electronic contact thermometer reads the temperature in the medium and, when used in conjunction with the magnetic stirrer, covers a display and measurement range from minus 80 to 350 °C.What’s included in the packageThe magnetic stirrer itself has the order number 506-11100-00 and is also available separately in the product range. The EKT Hei-Con contact thermometer is included with a mounting bracket, transforming the basic heating stirrer into a system with temperature control within the medium rather than just on the heating plate. The silicone cover, with order number 23-07-06-05-76, protects the work surface from splashes and dirt between uses and extends the service life of the patented Kera-Disk heating plate made from anodised aluminium.Typical applicationsRoutinely preparing solutions and buffers whilst controlling the temperature inside the vesselSample preparation in educational settings and schools, where simple rotary knob operation is sufficientHeating and stirring at a defined target temperature, for example when preparing reagentsRetrofitting an existing analogue stirrer to include temperature monitoring within the mediumSelection guide: analogue or digital controlIf you want an LCD display directly on the unit and a digitally readable Pt1000 probe, you’ll find the right combination in the Sensor Basic Package Core+ or, with an additional mount and silicone cover, in the Sensor Advanced Package Core+. Both are based on the digital Hei-PLATE Mix'n'Heat Core+ and feature two selectable heating modes. This package retains the simpler rotary knob operation of the Core model.Technical detailsDimensions (W x H x D)168 x 101 x 299 mmHeating plate footprintØ 145 mmWeightapprox. 3 kgMaximum permissible load25 kgDriveEC motor, counter-clockwise rotationSpeed range100 to 1,400 rpmHeating power800 W at 230 V (EU), 600 W at 115 V (US)Heating temperature range20 to 300 °CHeating controlPIDDisplay and measurement range with EKT Hei-Con-80 to 350 °CDegree of protection (EN 60529)IP42Sound pressure levelless than 50 dB(A)Rated voltage230 V, 50/60 Hz (EU), 115 V, 50/60 Hz (US)Connection typeL+N+PEProtection classIPower consumptionNormal operation 825 W (EU) / 625 W (US), standby 1.7 WOperating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C at up to 50 % relative humidityScope of deliveryHei-PLATE Mix'n'Heat Core magnetic stirrer, 145 mm footprint, order number 506-11100-00EKT Hei-Con electronic contact thermometer, including mounting bracketHei-PLATE Mix'n'Heat silicone cover, order number 23-07-06-05-76The probe of the EKT Hei-Con contact thermometer is a Pt1000 in a V4A tube (Ø 3 mm, length 238 mm, probe cable 1 m).Regulatory informationThe devices in this package are electrical appliances within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the appliance is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Heidolph offers a 10-year warranty on the Hei-PLATE series magnetic stirrer included in the pack, provided the instrument is registered with Heidolph within the first year of purchase. This extended warranty does not apply to the contact thermometer and the silicone cover, which are sold as accessories. If required, our procurement service can arrange for additional mixing vessels, holders or a replacement silicone cover for the magnetic stirrer.
Heidolph Multi Reax Multi-Vortex Mixer, 12 or 26 Vessels, Timer up to 999 Minutes, 545-10000-00
Anyone who needs to prepare several analyses at the same time wastes a lot of time repeatedly clamping samples in place when using a single-station vortex mixer. The Multi Reax solves this by mixing either 12 or 26 tubes in a single run, from Falcon tubes to Eppendorf reaction tubes with snap-on lids, and automatically stopping via a timer, rather than someone having to keep an eye on the clock.Two adapters for different tube sizesThe 12-tube adapter accommodates tubes with a diameter of 16 to 32 millimetres, such as standard Falcon tubes. The 26-tube adapter is designed for smaller tubes with a diameter of 10 to 16 millimetres, such as Greiner tubes or Eppendorf reaction tubes with snap-on lids. Both attachments are available individually as spare parts if required, so a second set can be retrofitted without having to replace the main unit.Timer up to 999 minutes with audible signalThe integrated timer runs for up to 999 minutes and automatically stops the shaking function; an audible signal indicates the end of the cycle. This means that users carrying out several tasks simultaneously do not need to keep an eye on the time themselves. The speed ranges from 150 to 2,000 revolutions per minute, displayed digitally, with a shaking orbit of 3 millimetres and a circular vibrating motion, driven by an asynchronous motor with a power consumption of 50 watts.Operating conditions for continuous useThe Multi Reax is designed for ambient temperatures of 5 to 31 °C at up to 80 % relative humidity; at higher temperatures up to 40 °C, the permissible humidity decreases linearly to 50 %. It is intended for use at altitudes of up to 2,000 metres above sea level. Measuring 270 x 172 x 410 millimetres and weighing around 10 kilograms, the unit requires significantly more floor space than the single-station models in the series.Multi Reax or single-sample vortex mixerFor individual samples here and there, a compact vortex mixer such as the Reax top will suffice, or, if a reproducible speed is required, the Reax control. If, on the other hand, a whole set of samples needs to be processed simultaneously, for example, prior to a series of analyses, the Multi Reax eliminates the need for repeated individual runs. For larger vessels requiring overhead rotation, the Reax 2 with universal adapter is suitable instead; this is a different category of instrument with a different operating principle.Typical applicationsHigh sample throughput is part of everyday life in analytical laboratories when several samples need to be prepared at the same time.Simultaneous mixing of 12 or 26 Falcon tubes, Greiner tubes or Eppendorf tubesTime-controlled batch runs with the integrated timer up to 999 minutesSample preparation prior to high-throughput analytical measurement runsParallel processing of multiple tasks, whilst the timer monitors the process in the backgroundTechnical detailsDimensions (W x H x D)270 x 172 x 410 mmWeightapprox. 10 kgMaximum permissible load1.5 kgDriveAsynchronous motorSpeed range150 to 2,000 rpm, digital displayType of motionCircular vibrationOrbit3 mmSound pressure level< 45 dB(A), based on IEC 61010Rated voltage230 V at 50 Hz or 110 V at 60 HzPower consumption50 WOperating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C at up to 50 % relative humidity, decreasing linearlyInstallation altitudeup to 2,000 m above sea levelOverheating protectionself-resettingScope of deliveryThe scope of delivery includes the Multi Reax base unit. Which attachment, for 12 or 26 vessels, is required in each specific case depends on the vessel sizes available; replacement attachments for both variants are available separately.Regulatory informationThe unit is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport, and damage resulting from improper use. If the instrument is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can supply additional or alternative attachments for the Multi Reax on request.
Heidolph Hei-TORQUE Gold 2 Package Overhead Stirrer Set, Ultimate 200 with Stand and Clamp, 501-62029-00
Many laboratories operate several stirring stations simultaneously and do not want to have to decide on a stand and clamp for each drive individually. The Hei-TORQUE Gold 2 Package combines the Hei-TORQUE Ultimate 200 drive with 200 Ncm of torque, a telescopic stand and a clamp into a single unit that can be set up at any workstation without modification.200 Ncm for a wide range of applicationsWith a torque of 200 Ncm, the Ultimate 200 sits between the other two models in the series and thus covers a wide range of applications: viscosities up to 100,000 mPas and volumes up to 50 l of water equivalent, with a power consumption of 120 watts. The speed range extends from 10 to 2,000 revolutions per minute in a single gear stage; clockwise and anti-clockwise rotation are available as standard.Complete stirring station, not just the driveThe drive includes a telescopic stand, order number 570-12100-00, and a clamp, order number 570-22000-00. Anyone wishing to equip several workstations with the same stirrer can purchase multiple Gold 2 Packages without having to assemble the stand and clamp individually each time and check them for compatibility. The stand holds the drive at the desired height, whilst the clamp secures it throughout the entire stirring process, meaning no further accessories are required to begin the batch.Remote control and documentation via Hei-ControlUSB and RS232 interfaces connect the drive to a PC, a programmable logic controller (PLC) or an automation system such as LabManager. The Hei-Control software included in the scope of delivery controls up to four devices simultaneously, saves ramp profiles and displays torque as a trend value. KTY motor protection, an automatic shut-off function and the touch-activated start/stop function ensure safety during continuous operation. The quick-release chuck with safety ring accommodates stirring shafts with diameters ranging from 2.5 to 10.5 millimetres, allowing anchor, blade, propeller and turbine stirrers to be clamped in place equally easily.Typical applicationsStandardised stirring stations at multiple workstations within the same laboratoryBatches in the medium viscosity range up to 100,000 mPasVolumes up to 50 l water equivalent with moderate power requirementsRemote control and data logging of multiple units via Hei-ControlReplacement or expansion of existing Hei-TORQUE workstationsFor lower torque requirements, the Hei-TORQUE Gold 1 Package with 100 Ncm is usually sufficient; for viscous media and larger batches up to 250,000 mPas, the Hei-TORQUE Platinum Package with 400 Ncm is more suitable. If a suitable stand is already available, the Hei-TORQUE Ultimate 200 single unit is also sufficient.Technical detailsSpecifications for the included Hei-TORQUE Ultimate 200 drive unit.Dimensions (W x H x D)86 x 350 x 247 mmWeight5.1 kgDriveEC motorSpeed range10 to 2,000 rpmMax. torque200 NcmNumber of gear stages1Viscosity up to100,000 mPasMax. H2O volume50 LStirring shaft (Ø)2.5 to 10.5 mmSpeed accuracy± 1 %Speed controlelectronicClockwise/anticlockwise rotationyesDegree of protection (EN 60529)IP54Protection classI (IEC 61140)Overvoltage categoryIIPollution degree2Rated voltage100 to 240 V AC, 50/60 HzPower consumption120 WSound pressure levelless than 70 dB(A), based on IEC 61010Motor protectionKTY temperature monitoringOverload protectionAutomatic shut-off with indicatorPermissible duty cycleSuitable for continuous operationOperating temperature5 °C to 31 °C at up to 80 % relative humidity, 32 °C to 40 °C at up to 50 % relative humidity (linearly decreasing)Installation altitudeup to 2,000 m above sea levelScope of deliveryHei-TORQUE Ultimate 200, drive unit, order number 501-62020-00Telescopic stand, order number 570-12100-00Clamp, order number 570-22000-00Hei-Control software, free of chargeA stirring element is not included in the package and must be selected separately to suit the application.Regulatory informationThe devices in this package are electrical appliances within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the equipment is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service can, if required, source additional clamps or stands for extra workstations, as well as suitable stirring elements.
Heidolph Polymax 1040 Platform Shaker, 5° Wobble, 2 to 50 rpm, 543-42205-00
On a wobbling platform, the working surface tilts simultaneously around several axes, rather than simply rocking forwards and backwards or up and down. The Polymax 1040 thereby moves containers from varying directions, covering a speed range of 2 to 50 revolutions per minute, driven by an asynchronous motor with a maximum permissible payload of 5 kilograms.Three-dimensional movement instead of single-axis tiltingWhilst the Duomax 1030 merely rocks about a single axis, the platform of the Polymax 1040 tilts in a wobbling motion in varying directions. This motion mixes liquids in vessels more evenly without the need to increase the rotational speed; it remains within the same range as the Duomax 1030, at 2 to 50 revolutions per minute.Overall height and mechanical designAt 195 millimetres, the wobble drive is slightly taller than the rocking drive of the Duomax 1030, which measures 185 millimetres; the width and depth remain identical at 320 x 375 millimetres. On a laboratory worktop, this difference in height makes hardly any difference in practice, but it does show that the wobble motion involves a different mechanism to that of simple tilting.Operation and fuseThe Polymax 1040 can be operated continuously or via a timer for up to 120 minutes; a self-resetting overheating protection mechanism safeguards the motor during longer runs. The unit is connected to 230 volts at 50 hertz or 115 volts at 60 hertz, fused with M 1.25 A or T 2.0 A respectively; the power consumption is 115 watts. Use is permitted at altitudes of up to 2,000 metres above sea level.Upgrade to a temperature-controlled systemSeveral vessels can be agitated simultaneously on a working area of 290 x 258 millimetres. When combined with the Incubator 1000 heating module and an incubation hood, the wobbling shaker becomes a system for temperature-controlled applications, without the need for a separate incubator.Typical applicationsMulti-axis, gentle mixing of liquids in laboratory vesselsTime-controlled batches with a timer up to 120 minutesContinuous operation for several hours thanks to self-resetting overheating protectionTemperature-controlled incubation in combination with a heating module and an incubation hoodSelection guide within the product rangeIf an application requires a more powerful, linear motion at a significantly higher speed, the Promax 1020 with an EC motor and up to 250 revolutions per minute is the better choice. For the same speed and angle of inclination, but with a single-axis rocking motion rather than a wobbling one, the Duomax 1030 is available. For a rotating motion on a compact chassis, the Rotamax 120 is suitable instead.Technical detailsDimensions (W x H x D)320 x 195 x 375 mmWeightapprox. 8 kgMaximum permissible load5 kgDriveAsynchronous motorSpeed range2 to 50 rpm, infinitely variableMotion typewobbling, 5° angle of inclinationUsable area290 x 258 mmSound pressure levelbelow 50 dB(A), based on IEC 61010Overheating protectionself-resettingOperating temperature5 to 31 °C at up to 80 % relative humidity, 32 to 40 °C as humidity decreasesInstallation altitudeup to 2,000 m above sea levelRated voltage230 V, 50 Hz or 115 V, 60 HzPower consumption115 WUnit fuseM 1.25 A (230 V) or T 2.0 A (115 V)Scope of deliveryPolymax 1040 including mains cable (EU version)The incubation hood and heating module are not included; both are part of the separately available range of accessories for the 1000 series.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Anyone wishing to upgrade the Polymax 1040 to an incubation system can obtain a heating module and incubation hood to match via our procurement service.
Heidolph Hei-FLOW Ultimate 120 Multi Peristaltic Pump, 5 to 120 rpm, Multi-channel, Volume Dosing, 523-52013-00
With the Hei-FLOW Ultimate 120 Multi, programmed dosing volumes and parallel multi-channel operation are not mutually exclusive. The drive comes with the multi-channel adapter fitted at the factory and also features a digital display, volume and interval dosing, and an RS232 interface, with a speed range of 5 to 120 revolutions per minute. As the multi-channel variant of the Ultimate 120, it thus combines two configuration levels that would otherwise have to be selected separately.Multi-channel operation with digital dosingWith a multi-channel pump head, the flow rate ranges from 0.005 to 329 millilitres per minute; with a single-channel pump head, it ranges from 0.36 to 813 millilitres per minute. Volume dosing between 0.001 and 9,999 millilitres, as well as interval dosing with pause times ranging from 0.1 seconds to 750 hours, can be programmed via the digital display; the delivery accuracy is ± 1 %.Two interfaces, one foot switch connectionThe digital RS-232 interface complements the analogue interface (0 to 10 V or 4 to 20 mA); both transmit speed, direction of rotation and start/stop signals to a higher-level control system. An optional foot switch allows dosing to be controlled by foot pressure; soft start and an electronic brake round off the control system and reduce pressure surges on start-up as well as coasting effects when stopping each individual channel.Accessories for multi-channel operationThe multi-channel cassettes are available in three sizes, along with multi-channel pump heads featuring 4, 8 or 12 channels. Tubing materials range from silicone to PharMed and Viton, through to various Tygon grades for hydrocarbons or foodstuffs, each with a wall thickness of 1.6 or 2.5 millimetres. For smaller cassettes, matching 2-stopper tubing and extension tubing are also available in the same material variants, enabling even narrow channel spacing to be achieved.Typical applicationsParallel dosing across multiple channels with documented volume and interval profilesProcesses in pharmaceutical, cosmetics or food applications with tight tolerancesExternal control via RS232 or analogue signal in automated systemsDosing via a foot switch when both hands must remain on the vesselSelection guide within the Hei-FLOW rangeFor those who do not require multi-channel operation, the Hei-FLOW Ultimate 120 offers the same digital electronics without an integrated adapter. If an analogue interface without dosing functions is sufficient, the Hei-FLOW Expert 120 Multi is the simpler alternative within the same speed range. For single-channel operation at significantly higher flow rates, the Hei-FLOW Ultimate 600 is available with speeds ranging from 24 to 600 revolutions per minute; for a more cost-effective multi-channel solution without a digital display, the Hei-FLOW Core 120 Multi is available.Technical detailsDimensions (W x H x D)166 x 225 x 256 mm, excluding pump headWeight7.7 kg, excluding pump headDriveEC motorSpeed range5 to 120 rpmDisplayDigitalDegree of protectionIP 54 according to DIN EN 60529Sound pressure level< 55 dB(A), based on IEC 61010Rated voltage110 to 240 V, 50/60 HzProtection class1 (EN 61140)Overheating protectionYes, with electronic current limitingControl accuracy± 0.5 %Speed controlDigitalInterfacesDigital RS 232, analogue (0 to 10 V / 4 to 20 mA): speed, direction of rotation, start/stopPower consumption / Motor power100 WOperating modeContinuous operation 24 hours a day, 7 days a weekDirection of rotationclockwise / anti-clockwiseSpeed displayDigitalFlow rate, single channel0.36 to 813 ml/minFlow rate, multi-channel0.005 to 329 ml/minAccuracy± 1 %Volume dosing0.001 to 9,999 mlInterval dosing0.001 to 9,999 ml, pauses 0.1 s to 750 hSoft startYesElectronic brakeYesConnection for foot switchYesScope of deliveryHei-FLOW Ultimate 120 Multi drive unit, order number 523-52013-00Factory-fitted multi-channel adapterA pump head is not included and must be selected separately from the range of accessories, as must hoses and RS232 cables. The operating instructions and Safety Guide are available as PDF downloads.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of old appliances can be found on our Environment and Disposal page.Warranty and procurement serviceHeidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. Our procurement service will put together the appropriate equipment, including suitable pump heads, multi-channel cassettes and tubing, to fit this drive.
